If you are stuck with a motor that does not respond fast enough, the NXP FRDM-A-S32M276, 3-phase PMSM/BLDC Motor Control Development Board is the shortcut you need. This board is a compact platform that lets you prototype, test, and fine-tune three-phase PMSM or BLDC motors. Engineers and hobbyists alike often waste weeks trying to connect separate chips, sensors, and debuggers. With this board you get everything in one place, so you can focus on motion instead of wiring.

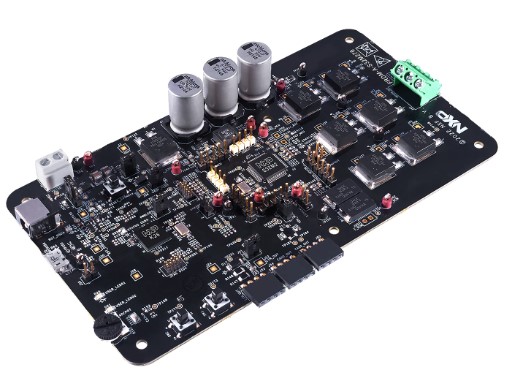

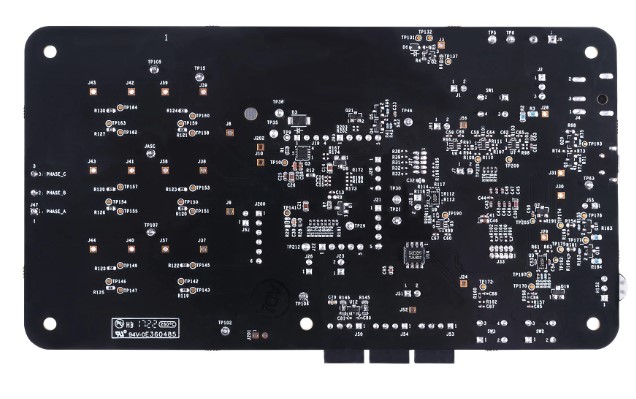

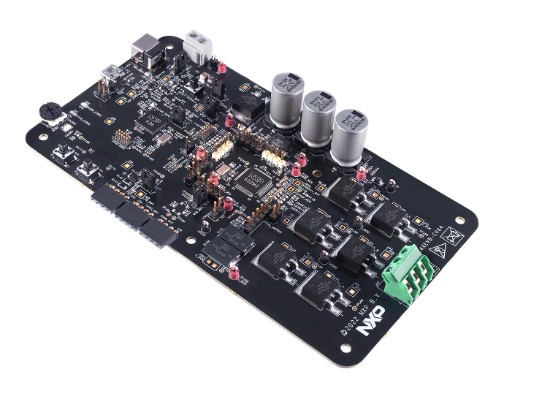

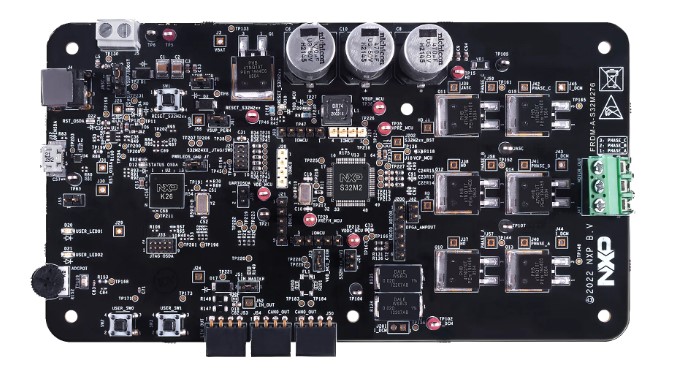

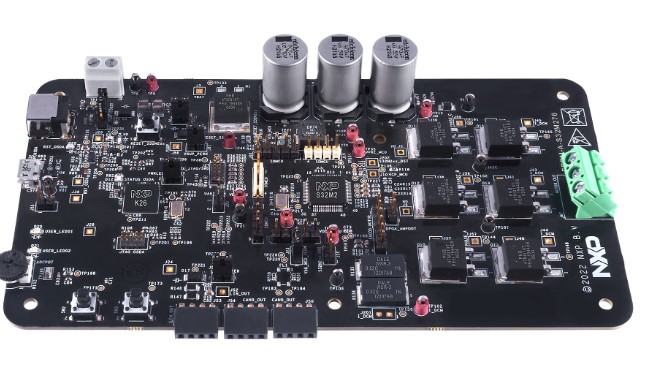

NXP FRDM-A-S32M276, 3-phase PMSM/BLDC Motor Control Development Board
The main problem many developers face is the lack of a unified hardware set for precise motor control. Without a proper board, the motor may stall, overheat, or run with uneven torque, which can damage the product and delay launch dates. This matters because unreliable motion can ruin a robotic arm, an electric scooter, or an industrial conveyor. The NXP board solves the issue by integrating a powerful S32M2 processor, built-in CAN and LIN transceivers, and multiple sensor options, giving you a stable, ready-to-code platform for fast, accurate control.
Key Features
- K26_180 MCU with 180 MHz Cortex-M4 core and 2 MB flash.
- S32M2 integrated solution for 12 V motor control.
- Built-in CAN FD transceiver (TJA1462) with standby mode.
- LIN 2.2A transceiver (TJA1027) for automotive networking.
- Support for encoder, Hall, or sensor-less speed feedback.
- DC-bus voltage, current, phase, and BEMF sensing with protection features.
- On-board PEmicro debugger and virtual COM port via micro-USB.
- 10-pin JTAG/SWD connector for advanced debugging.
- ANSI-C and Model-Based Design example code included.
- FreeMASTER visualization and MCAT tuning tools ready to use.
Specifications
| Supported Devices |
|
| Processors and Microcontrollers |
|
| K2x / KS2x USB |
K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs,
2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
|
| S32M Integrated Solutions for MC |
S32M2: S32M2 Integrated Solution for 12V Motor Control |
| Interfaces |
|
| CAN Signal Improvement |
TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode |
| Automotive LIN Solutions |
TJA1027: LIN 2.2A/SAE J2602 Transceiver |
| Features |
|
| Hardware Features |
FRDM-A-S32M276-C064 designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY
Position/Speed Sensor options: encoder, HALL or sensorless techniques
Voltage/current Sensors: DC Bus voltage and current, phase voltages, BEMF voltages, over current/voltage/temperature protections
|
| Software Compatibility |
Field-oriented control (FOC) with field weakening for sinusoidal motor type (PMSM)
6-Step commutation for trapezoidal motor type (BLDC)
Available as ANSI C examples and Model-Based Design for non-AUTOSAR® applications
Automotive Math and Motor Control Library (AMMCLib): Control algorithm built on blocks of a precompiled software library
S32 Design Studio for S32 Platform IDE and S32M27x Real-Time Drivers (RTD): Example software created in the S32DS built on S32M27x RTD
FreeMASTER and Motor Control Application Tuning (MCAT) tool: Application tuning and variables tracking at different levels of the control structure |
| FRDM-A-S32M276-C064 Interfaces |
CAN (FD) physical layer integrated in S32M2
TJA1027: LIN 2.2A/SAE J2602 Transceiver |
| Debug Interfaces |
On board PEmicro debugger (micro-USB connector) with virtual COM port for serial communication
10pin JTAG/SWD connector |
| Enablement |
ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32M27x RTD drivers
Model-Based Design Toolbox (MBDT) example SW built on S32M27x RTD drivers
FreeMASTER visualization/configuration support
MCAT tool - part of software package
MCU peripherals initialization generated by S32DS Configuration Tool (S32CT) |
