Imagine you are building a new car gateway and you need a ready-made board that lets you test Ethernet, CAN and safety functions in a single step. The NXP S32G-VNP-RDB2 Vehicle Networking Reference Design is that board. It gives you a complete hardware platform for automotive networking, so you do not waste weeks designing power supplies or wiring connectors. If you have struggled with missing interfaces or unreliable timing, this design solves those headaches and lets you focus on software.

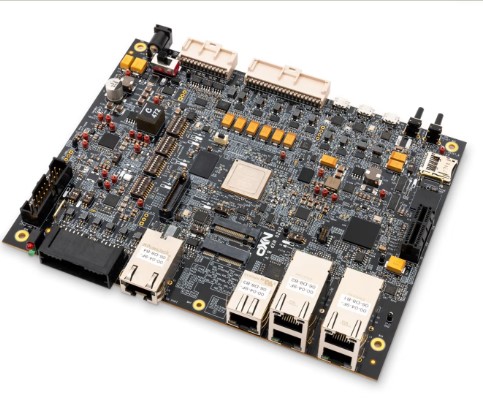

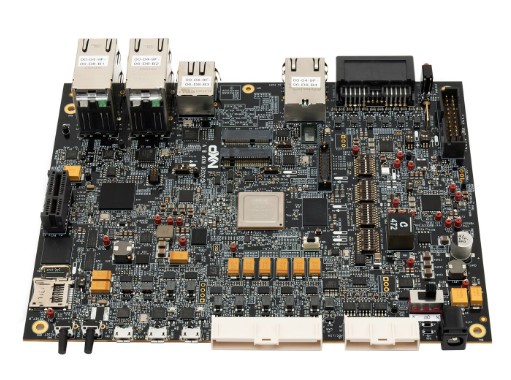

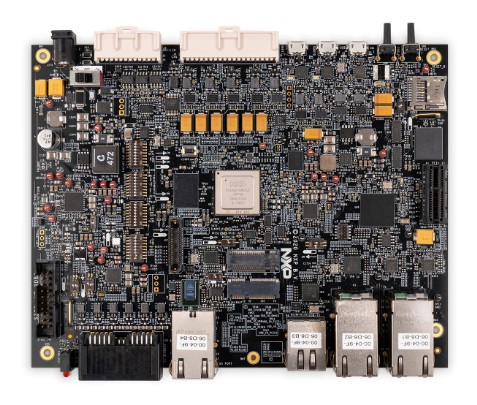

NXP S32G-VNP-RDB2 Vehicle Networking Reference Design
Developers often face a gap between a concept and a testable prototype. Without a solid reference board, they must source many separate chips, design custom PCBs and debug power issues. That delay can cost money and push launch dates. This NXP reference design closes the gap. It bundles a multi-channel power manager, Ethernet switch, CAN transceivers and safety-grade components on a single board, giving you a reliable platform that meets ISO 26262 requirements right out of the box.
Key Features
- Supports service-oriented gateway and domain controller applications.
- 18 CAN/CAN FD ports and 12 Ethernet ports for extensive network coverage.
- Multi-channel PMIC (VR5510) handles 12 V, 24 V and 48 V inputs.
- SJA1110 TSN Ethernet switch with integrated 100BASE-T1 PHYs.
- TJA1102A dual-port 100BASE-T1 Ethernet PHY transceivers.
- TJA1043 high-speed CAN transceiver with standby and sleep mode.
- TJA1463 CAN signal-improvement transceiver for noisy environments.
- TJA1153 secure CAN transceiver with built-in authentication.
- Two M.2 slots (M-key and E-key) for storage or wireless modules.
- ISO 26262 safety support using qualified components and architecture.
- Low-power operation with multiple wake-up sources.
- Comes with AC adapter, 16 GB SD card, cables and heatsinks for immediate use.
Specifications
| Product |
NXP S32G-VNP-RDB2 Reference Design Board |
| Supported Devices |
|
| Power Management |
|
| 12 V, 24 V, and 48 V SBC Solutions |
VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power,
Fit for ASIL D Safety Level
|
| Interfaces |
|
|
Automotive Ethernet
Switches and Network Controllers
|
SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs |
| Automotive Ethernet PHYs |
TJA1102A: TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver |
| 3.3 V / 5 V IO CAN Transceivers |
TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode |
| CAN Signal Improvement |
TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode |
| Secure CAN Transceivers |
TJA1153: Secure HS-CAN Transceiver with Sleep Mode |
| Specifications: |
|
| Hardware Specs |
- Supports service-oriented gateway and domain controller applications
- Multiple network interfaces, featuring 18 CAN/CAN FD and 12 Ethernet ports
- Supports low-power mode and multiple wake-up sources
- Supports two M.2 modules (M-key slot, E-key slot)
- ISO 26262 support by using safety components and architecture
|
| Kit Contain |
|
| Package content |
S32G Reference Design Board 2
Universal AC Adapter
AC/DC 12 V, 6.67 A power supply
16 GB SD Card
DuPont Line
(2) USB A-to-Micro B cables (UART0/1)
Ethernet and Ethernet Loopback cables
100BASE-T1 Ethernet cable
J5 cable (LIN/ADC) and J6 cable (CAN/FlexRay)
(4) Heatsinks
(4) Thermal Pads
M2 Screws |
