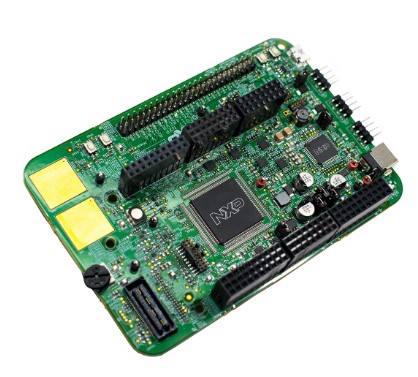

NXP S32K148-Q176 Evaluation Board with 32-bit Arm Cortex-M4F S32K14 MCU

Tired of waiting months for a hardware prototype that finally works? The NXP S32K148-Q176 Evaluation Board gives you a ready-to-run platform that lets you test, debug and showcase your automotive or industrial design in days, not weeks. Engineers often struggle with mismatched pins, missing peripherals, and costly development kits. This board solves those problems so you can focus on the code that matters.

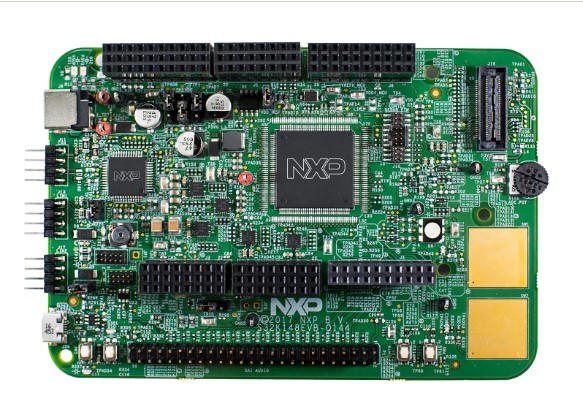

NXP S32K148-Q176 Evaluation Board with 32-bit Arm Cortex-M4F S32K14 MCU

The board removes the guesswork from early-stage development. Without it, you would need to design a custom carrier, source separate CAN and LIN transceivers, and waste time on power-supply routing. Those delays increase cost and push product launch dates. By providing a fully populated S32K14 MCU, built-in CAN/LIN/UART, Ethernet connector and Arduino-compatible headers, the board gives you a single, low-cost solution that lets you verify performance, safety features and communication protocols right away.

Key Features

• 32-bit Arm Cortex-M4F core with floating-point unit.
• Integrated 8 MB QSPI NOR flash for code and data.
• On-board CAN, LIN and UART/SCI interfaces.
• Ethernet connector compatible with multiple daughter cards.
• Arduino UNO pin-out compatible headers for shield expansion.
• OpenSDA serial and debug adapter supporting standard debug protocols.
• Power options: micro USB or external 12 V, with 3.3 V and 5 V rails.
• Two touchpads, two push buttons, one potentiometer and an RGB LED for user interaction.
• Small form factor and low price ideal for rapid prototyping.
• Easy access to all MCU I/O pins for custom circuit connections.
