Imagine a board that lets you test a power-management chip without hunting for parts or wiring a messy prototype. The NXP UJA1163A-EVB Evaluation Board is that board. It is a compact development platform for the UJA1163A high-speed CAN system basis chip. Engineers and hobbyists use it to verify voltage regulation, standby mode, and CAN communication before a full product design. If you have struggled with unstable power supplies or unclear CAN signals, this board gives you a reliable, ready-to-use solution.

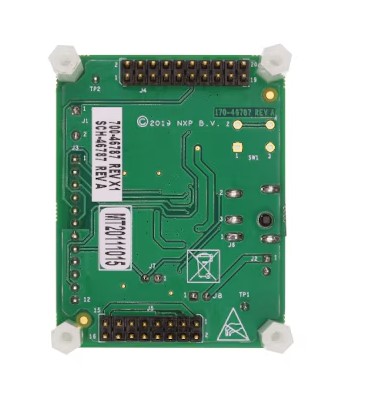

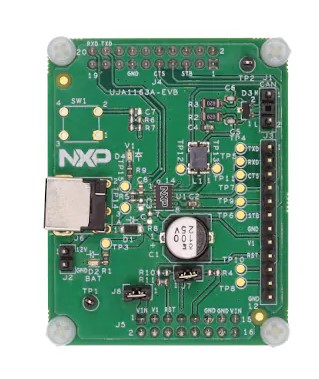

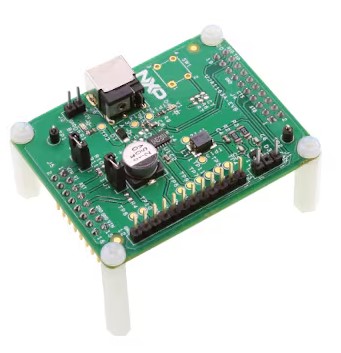

NXP UJA1163A-EVB Evaluation Board
The board solves the problem of long development cycles caused by missing test hardware. Without a proper evaluation board, you may spend weeks building a custom test fixture, only to discover the chip does not behave as expected. That delay costs time and money, especially in projects that need fast time-to-market. The NXP UJA1163A-EVB provides a complete reference design, power input, and easy access to all chip pins, so you can start testing in minutes. It removes the guesswork and gives you clear, repeatable results.
Key Features
- Mini high-speed CAN system basis chip with standby mode.
- Supports 12 V, 24 V, and 48 V power inputs.
- Multiple 2.54 mm header rows for MCU and signal connections.
- Board dimensions 45.1 mm 58.4 mm for easy integration.
- Designed for testing UJA116xA features in various IO environments.
- Arduino connection support for rapid prototyping.
- Only essential components are populated, keeping the layout clean.
- Requires an external 12 V supply to power up the board.
- Provides easy access to all chip pins for debugging and development.
- Robust solder points ensure reliable long-term testing.
- Clear silkscreen markings for quick identification of signals.
- Reference design helps reduce development time and cost.
Specifications
| Introduction |
NXP UJA1163ATK Evaluation Board |
| Power Management |
|
| 12 V, 24 V, and 48 V SBC Solutions |
UJA1163ATK: Mini High-Speed CAN System Basis Chip with Standby Mode |
| Features |
|
| Features |
Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
Supporting Arduino connection with microcontroller board.
The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
An external power supply of 12 V typ. must be connected to power-up the board |
