850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.
40 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

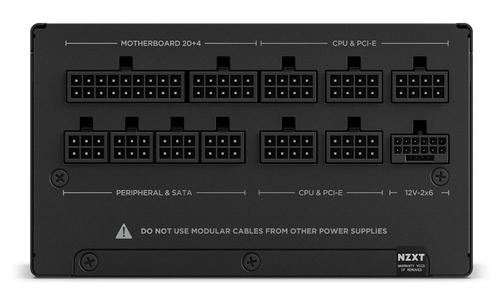

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.
Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
Specifications
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency |
91.7% |
| Max output current (+12V) |
70.83 A |
| Max output current (+3.3V) |
22 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (+5V) |
15 W |
| Combined power (+12V) |
850 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
10 - 5 A |
| AC input voltage |
100 - 240 V |
| Total power |
850 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| ATX Power connector (24-pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
2 |
| Peripheral (Molex) power cable length |
150,500 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
150,500 mm |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Noise level |
44.5 dB |
| EPS version |
2.92 |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Fan location |
Top |
| Fan speed |
0 - 2300 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Certificates |
| Compliance certificates |
BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
