Upgrade your PC’s cooling performance instantly with the NZXT F140P – the fan that turns heat into silence. Designed for demanding builds, this 14 cm static‑pressure fan pushes air through dense radiators and heatsinks while staying whisper‑quiet, so you can keep your system cool without the noise.

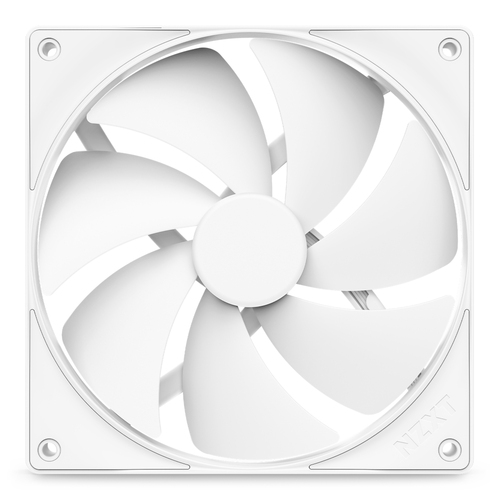

NZXT F140P, 14 cm, 500 RPM - 1700 RPM, Cooling fans, RF-P14SF-W2, White
The fan delivers up to 4.45 mmH₂O static pressure and 93.2 CFM airflow, thanks to pressure‑optimized blades and a chamfered frame that directs air deep into your case. With a speed range of 500‑1700 RPM, PWM control automatically adjusts performance based on temperature, giving you efficient cooling when you need it most.
Built with fluid dynamic bearings, the NZXT F140P operates at just 30 dB at full speed and boasts a 60,000‑hour MTBF, ensuring years of reliable, low‑noise operation. The sturdy plastic and rubber construction absorbs vibration, eliminating rattles and keeping your build looking and sounding clean.
Installation is straightforward with a 4‑pin PWM connector and a compact 140 × 140 × 25 mm profile that fits any standard case. The sleek white finish adds a premium look while the fan’s design maximizes airflow in tight spaces, making it perfect for high‑performance rigs.
Benefits
- High static pressure pushes air through dense radiators and heatsinks.
- Low noise operation stays under 30 dB even at maximum speed.
- Fluid dynamic bearing provides a 60,000‑hour lifespan.
- PWM speed regulation adapts cooling to system temperature for efficiency.
Uses of the product
- Cooling liquid‑cooling radiators in compact cases.
- Driving airflow over CPU and GPU heatsinks.
- Improving overall case ventilation for high‑performance builds.
- Supporting overclocked systems that generate extra heat.
Features
- 140 mm blade design with optimized pressure and minimal blade‑to‑frame gap.
- Fluid Dynamic Bearing (FDB) for quiet, long‑lasting performance.
- 4‑pin PWM connector for precise speed control based on temperature.
- White plastic and rubberized frame with vibration‑absorbing corners.
Specifications
| Performance |
| Mean time between failures (MTBF) |
60000 h |
| Fan speed (max) |
1700 RPM |
| Fan speed (min) |
500 RPM |
| Quantity per pack |
1 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Maximum air pressure |
4.45 mmH2O |
| Maximum airflow |
93.2 cfm |
| Noise level (high speed) |
30 dB |
| Rotational speed (max) |
1700 RPM |
| Rotational speed (min) |
500 RPM |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
4-pin |
| Illumination LED |
No |
| Number of fans |
1 fan(s) |
| Material |
Plastic, Rubber |
| Product colour |
White |
| Power |
| Fan current |
0.23 A |
| Fan voltage |
12 V |
| Rated current |
0.28 A |
| Rated voltage |
12 V |
| Power consumption (typical) |
2.76 W |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
| Height |
25 mm |
| Depth |
140 mm |
| Width |
140 mm |
| Technical details |
| Warranty period |
2 year(s) |
