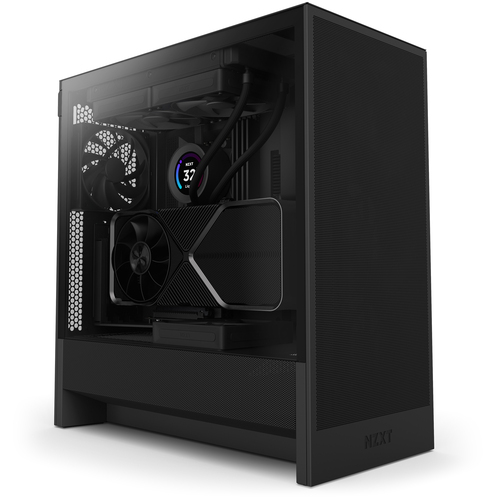

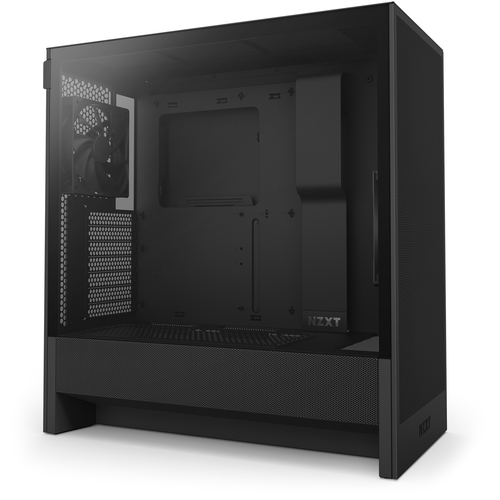

Compact Mid-Tower ATX Airflow Case
Showcase your build with the NZXT H5 Flow Gaming Midi Tower Case, featuring SGCC steel construction and tempered glass panels. Designed for optimal airflow and spacious interior, it’s perfect for gamers and PC enthusiasts seeking performance and style.
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
H5 Flow PC showing radiator fan size capabilityH5 Flow PC showing radiator fan size capability
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow

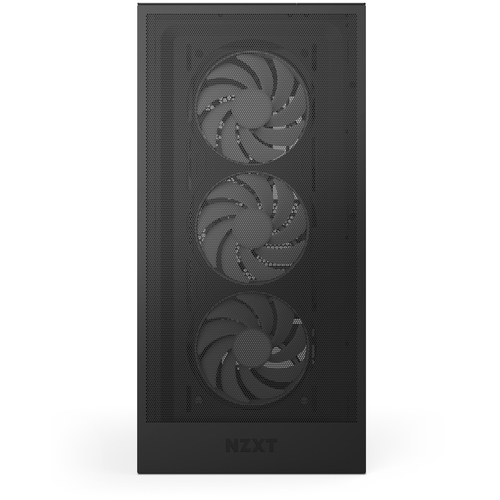

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
H5 Flow PC highlighting the F120Q fan included with the caseH5 Flow PC highlighting the F120Q fan included with the case
Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)—one in front, one in rear—for out-of-the-box cooling. *Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access

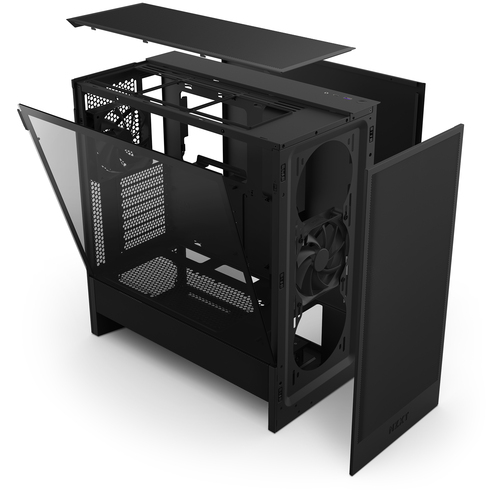

Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
41 cm |
| Maximum CPU cooler height |
17 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination |
No |
| Suitable for |
Gaming |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
1 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Product colour |
Black |
| Material |
SGCC, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
240 mm |
| Front radiator sizes supported |
360 mm |
| Liquid cooling capability |
Yes |
| Fan 2 maximum air pressure |
1.05 mmH2O |
| Fan speed |
1200 - 1500 RPM |
| Maximum airflow |
60.2 cfm |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
1x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
7.28 kg |
| Height |
465 mm |
| Depth |
430 mm |
| Width |
225 mm |
| Other features |
| Fan connector |
3-pin |
| Noise level |
24.1 dB |
| Screws included |
Yes |
