Experience powerful cooling and stylish lighting with the NZXT H7 Flow RGB Mid‑Tower Case, supporting E‑ATX (up to 277 mm), ATX, micro ATX, and Mini‑ITX motherboards. Crafted from SGCC steel with high‑performance mesh panels and a tempered glass side, it comes with a large F360 RGB Core front fan and supports up to 10 fans total. The vertical PSU layout allows for three bottom-mounted 120 mm fans, improving GPU cooling.
The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

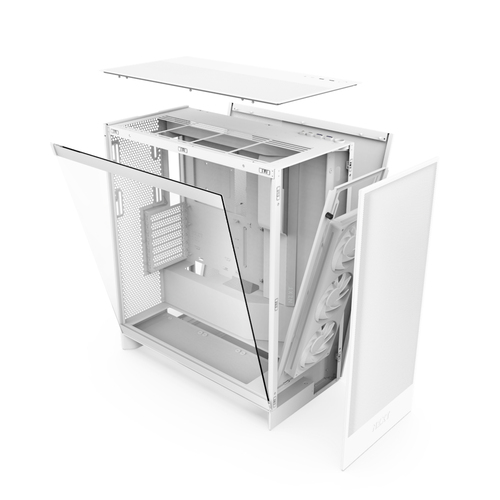

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Specifications
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
41 cm |
| Maximum CPU cooler height |
18.5 cm |
| On/off button |
Yes |
| Reset button |
No |
| Cable management |
Yes |
| Tempered glass panel(s) |
Yes |
| Illumination |
Yes |
| Side window |
Yes |
| Number of 2.5" bays |
4 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
0 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Product colour |
White |
| Material |
SGCC, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
| Top radiator sizes supported |
360 mm |
| Rear radiator sizes supported |
140 mm |
| Front radiator sizes supported |
360,420 mm |
| Fan 2 maximum air pressure |
1.27 mmH2O |
| Fan 2 maximum airflow |
50.1 cfm |
| Fan speed |
1200 - 1500 RPM |
| Maximum air pressure |
1.27 mmH2O |
| Maximum airflow |
50.1 cfm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Fan speed control |
No |
| Storage |
| Supported HDD sizes |
2.5,3.5" |
| Technical details |
| Warranty period |
2 year(s) |
| Weight & dimensions |
| Weight |
11.1 kg |
| Height |
544 mm |
| Depth |
468 mm |
| Width |
244 mm |
