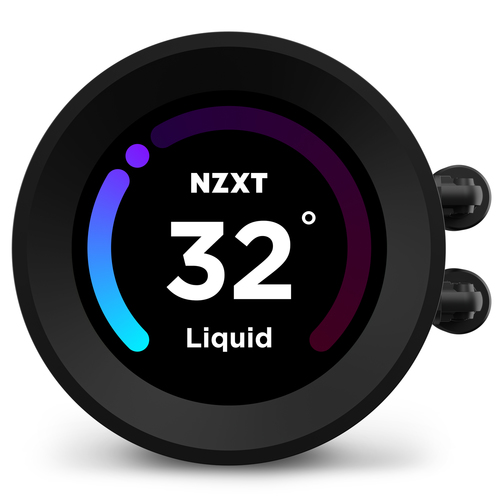

The Kraken Elite delivers chillingly cool performance with a display that makes custom content truly pop. The 640x640 resolution wide-angle LCD display creates a picture that's detailed and vivid regardless of your viewing angle.
INCREASED CUSTOMIZATION
A more powerful microcontroller allows for more immersive customization such as audio visualizers and the ability to relay CAM information with particle density animations.
TWICE AS BRIGHT
A bright 2.36" wide angle LCD screen supports custom images along with animated GIFs and features a crystal clear 640x640 display resolution, double that of previous generations.
STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken Elite cools optimally with 2800 RPM operation.
SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-READY
Personalize screen content with custom images, GIF, or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.
Specifications
| Performance |
| Fan's mean time to failure (MTTF) |
60000 h |
| Fan speed (max) |
1800 RPM |
| Fan speed (min) |
500 RPM |
| Pump motor speed (max) |
2800 RPM |
| Pump motor speed (min) |
800 RPM |
| Quantity per pack |
1 pc(s) |
| Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) |
30.6 dB |
| Fan noise level (min) |
17.9 dB |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
2.7 mmH2O |
| Minimum air pressure |
0.75 mmH2O |
| Maximum airflow |
78.02 cfm |
| Minimum airflow (imperial) |
21.67 cfm |
| Compatible processor series |
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Fan diameter |
12 cm |
| Type |
All-in-one liquid cooler |
| Suitable location |
Processor |
| Design |
| Display size (HxV) |
60 x 60 mm |
| Display type |
TFT-LCD |
| Water block material |
Copper/Plastic |
| Fan connector |
4-pin |
| Number of fan blades |
7 |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminum |
| Material |
Aluminium, Plastic |
| Product colour |
Black |
| Power |
| Fan current |
0.23 A |
| Fan voltage |
12 V |
| Pump current |
300 mA |
| Pump voltage |
12 V |
| Fan power consumption |
2.76 W |
| Weight & dimensions |
| Package weight |
2.01 kg |
| Package height |
244 mm |
| Package depth |
141 mm |
| Package width |
327 mm |
| Fan dimensions (W x D x H) |
120 x 120 x 26 mm |
| Weight |
1.31 kg |
| Waterblock height |
5.95 cm |
| Waterblock depth |
8.19 cm |
| Waterblock width |
8.19 cm |
| Tube length |
40 cm |
| Radiator height |
12.3 cm |
| Radiator depth |
3 cm |
| Radiator width |
27.5 cm |
| Packaging content |
| Package type |
Box |
| Other features |
| Tube material |
Rubber |
