Get high-performance cooling, display a favorite animated GIF or static image, monitor real-time PC performance metrics, see music that's currently playing, stream browser content and more with NZXT CAM software.

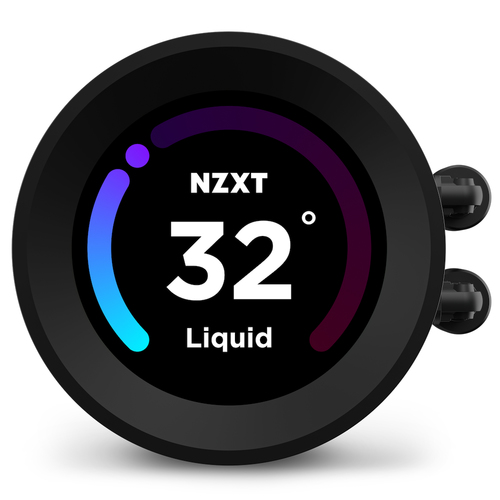

Wide-Angle LCD Display
2.36" diameter LCD display with a wide viewing angle, 640x640 resolution, 60 Hz refresh rate, and ultra-high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Powerful Cooling
Static Pressure Fans with fluid dynamic bearings provide powerful cooling with minimal noise.
Specifications
| Performance |
| Fan speed (max) |
1500 RPM |
| Fan speed (min) |
500 RPM |
| Pump motor speed (max) |
2800 RPM |
| Pump motor speed (min) |
800 RPM |
| Pump connector |
4-pin |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Maximum air pressure |
2.75 mmH2O |
| Minimum air pressure |
0.91 mmH2O |
| Maximum airflow |
99.68 cfm |
| Minimum airflow (imperial) |
33.22 cfm |
| Noise level (high speed) |
32.1 dB |
| Noise level (low speed) |
19.4 dB |
| Compatible processor series |
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported processor sockets |
LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter |
14 cm |
| Type |
All-in-one liquid cooler |
| Suitable location |
Processor |
| Design |
| Display type |
TFT-LCD |
| Water block material |
Copper/Plastic |
| Number of fans |
2 fan(s) |
| Radiator material |
Aluminum |
| Product colour |
Black |
| Power |
| Voltage |
12 V |
| Power consumption (typical) |
3.36 W |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
140 x 140 x 26 mm |
| Waterblock height |
5.95 cm |
| Waterblock width |
8.19 cm |
| Tube length |
40 cm |
| Radiator height |
3 cm |
| Radiator depth |
31.5 cm |
| Radiator width |
14.3 cm |
| Technical details |
| Warranty period |
6 year(s) |
