Upgrade your PC cooling with the NZXT RF-U36HF-B1, 36 cm, 500RPM - 2400RPM, Cooling fan Black and experience silent, high‑performance airflow that keeps your system running smooth even under heavy loads.

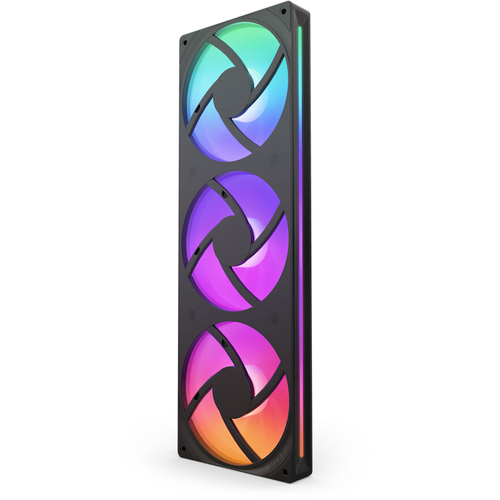

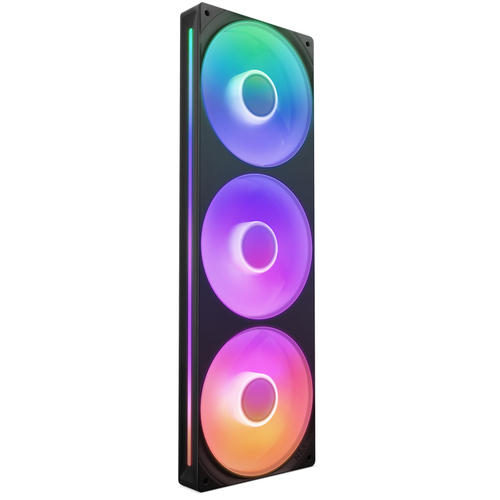

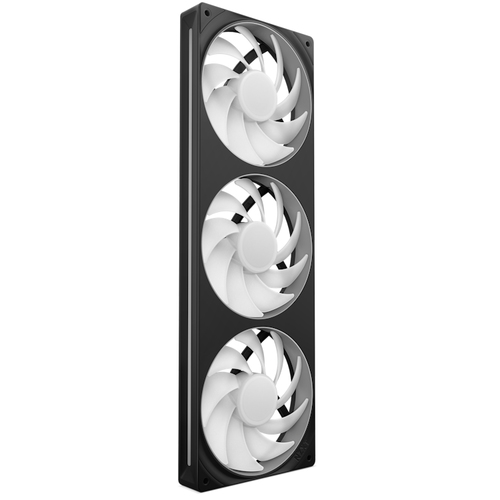

NZXT RF-U36HF-B1, 36 cm, 500RPM - 2400RPM, Cooling fan Black
Designed as an all‑in‑one frame, this fan combines three integrated blades and a single 8‑pin connector, so you can install it quickly without juggling multiple cables. The fluid dynamic bearings deliver low noise and a 60,000‑hour lifespan, giving you reliable cooling for years.
The blade geometry boosts static pressure to 3.3 mmH₂O, pushing air through tight radiators and dense heatsinks. With PWM control, the fan automatically adjusts speed from 500 RPM to 2400 RPM based on temperature, ensuring optimal efficiency while keeping noise under 30 dB.
Eight aRGB LEDs per fan create vibrant, customizable lighting that shines through semi‑translucent blades and side windows. Connect to an NZXT controller or any 5 V ARGB header using the included splitter, and manage colors and speed with NZXT CAM software.
Benefits
- Whisper‑quiet operation with anti‑vibration rubber corners and Zero RPM mode for idle periods.
- High static pressure (3.3 mmH₂O) for superior cooling of radiators and heatsinks.
- Long‑lasting fluid dynamic bearings guarantee up to 60,000 hours of use.
- Dynamic RGB lighting adds a striking visual upgrade to any build.
Uses of the product

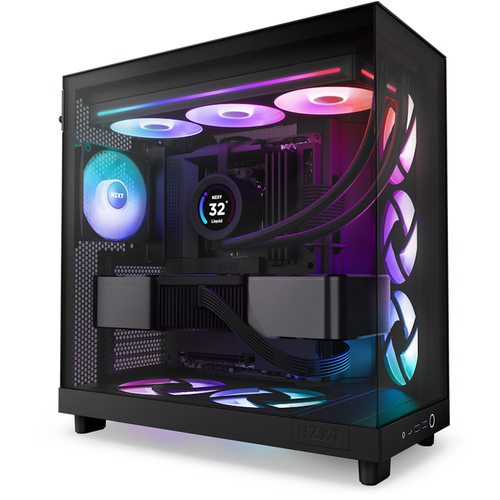

- Cooling high‑performance CPUs and GPUs in compact or full‑tower cases.
- Enhancing airflow in liquid‑cooling radiators with tight fin spacing.
- Adding synchronized RGB effects to match your overall system theme.
- Replacing noisy stock fans to achieve a quieter workstation environment.
Features
- Integrated single‑frame design with three 36 cm fans and a single 8‑pin connector.
- PWM speed range from 500 RPM to 2400 RPM, delivering up to 75.12 m³/h airflow.
- Eight aRGB LEDs per fan hub, visible through semi‑translucent blades and side windows.
- Compatible with NZXT CAM software via controller or standard 5 V ARGB motherboard header.
Specifications
| Performance |
| Fan noise level (max) |
30 dB |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Maximum air pressure |
3.3 mmH2O |
| Airflow |
75.12 m³/h |
| Rotational speed (max) |
2400 RPM |
| Rotational speed (min) |
500 RPM |
| Fan diameter |
36 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
8-pin |
| Illumination colour |
Multi |
| Number of LEDs |
8 |
| Illumination LED |
Yes |
| Material |
Plastic, Rubber |
| Product colour |
Black |
| Weight & dimensions |
| Cable length |
0.6 m |
| Height |
360 mm |
| Depth |
26 mm |
| Width |
120 mm |
| Other features |
| Airflow |
75.12 m³/h |
