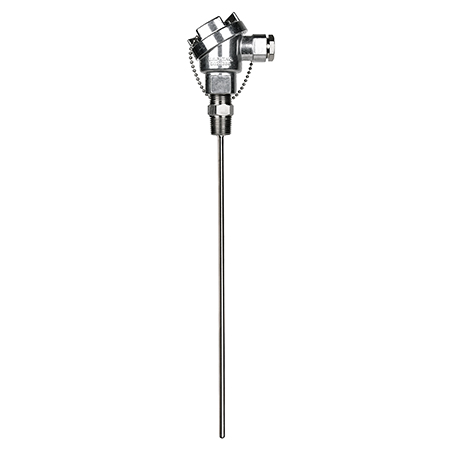

PR-14 series RTD probe with miniature aluminum protection head and screw-on cap with chain includes PT100 Ω platinum RTD element or PT1000 RTD element, 1/2" NPT mounting threads and sheath of 316 stainless steel. When properly sized, these can go directly into a thermowell. All probes include a screw terminal block for easy connection of insulated copper extension wire. Replacement probes (without head assembly) are available as well as a "spring-loaded" option which allows for the probe to bottom out in a thermowell for quicker and more accurate response. These are ideal for use in vessels, tanks and similar structures where temperature measurements are needed.
Features:
- Mini aluminum protection head for areas where space is limited
- Protection head lid is chained so that lid stays with assembly
- Extreme temperature range: -200 to 600°C (-328 to 1112°F)
- Class "A" accuracy* conforming to IEC 60751
- Choice of PT100 Ω
- Standard probe lengths of 9 inches
- 3-wire Pt100 RTD sensor with a 1/4 inch sheath diameter
Specifications:
Process Temperature
Range |
-200 to 600°C
(-328 to 1112°F) |
| Accuracy |
Class A from -100 to 450°C
(-148 to 842°F); or else Class B |
Nominal Resistance and
Curve |
100 Ω at 0°C standard;
TCR = 0.00385 Ω/Ω/°C standard
|
| Process Connection |
1/2” NPT |
| Dimensions |
|
| Diameter |
1/4 inch |
| Standard probe length |
9 inches |
| Ingress Protection |
IP67 |
Response time T90 (s)
|
10.6 sec |
Vibration
|
IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;
number of sweep cycles 10 and acceleration 5g (15 probes tested together)
Duration: 1 day |
Shock
|
IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day |
