| Sensor Controller Series |
FH-L550 Series |
| Sensor Controller Model |

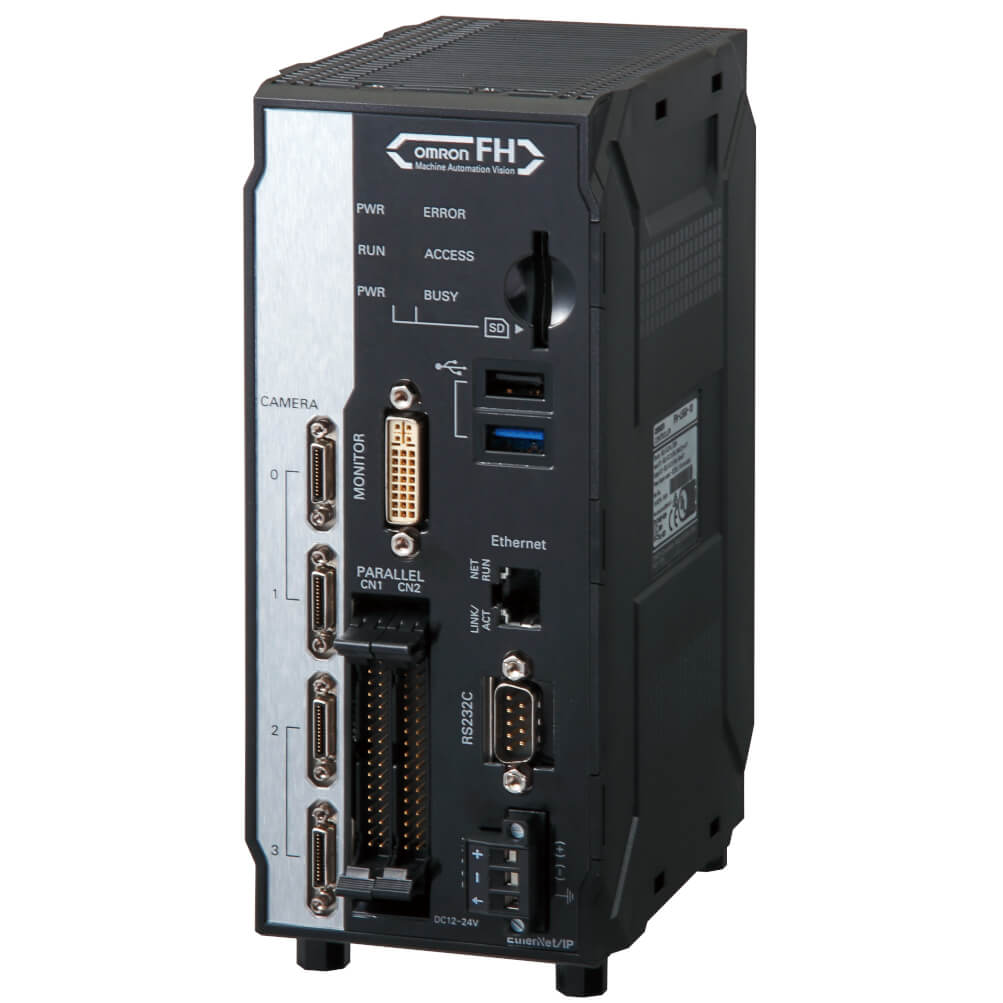

FH-L550-10 |
| Parallel IO |
NPN/PNP (common) |
| Memory, Storage |
4 GB RAM, 4 GB ROM |
| Main Functions |
|
| Operation Mode |
Standard Yes |
| Double Speed Multi-input |
Yes |
| Non-stop adjustment mode |
Yes |
| Multi-line random-trigger mode |
No |
| Parallel Processing |
Yes |
| Number of Connectable Camera |
4 |
| Supported Camera |
|
| FH-S series camera |
All of the FH-S series cameras except FH-SM21R/SC21R |
| FZ-S series camera |
All of the FZ-S series cameras are connectable. |
| Camera I/F |
OMRON I/F |
| Capacity |
|
| Possible Number of Captured Images |
Refer to page 12. |
|
Possible Number of Logging
Images to Sensor Controller
|
Refer to the Vision System FH Series User's Manual (Cat. No. Z365). |
| Possible Number of Scenes |
128 |
| UI Operations |
|
| USB Mouse |
Yes (wired USB driver-less type) |
| Touch Panel |
Yes (RS-232C/USB connection: FH-MT12) |
| Setup |
Create the processing flow using Flow editing. |
| Language |
Japanese, English, Simplified Chinese, Traditional Chinese,
Korean, German, French, Spanish, Italian, Vietnamese, Polish
|
| External Interface |
|
| Serial Communication |
RS-232C × 1 |
| Ethernet Communication Protocol |
Non-procedure (TCP/UDP) |
| Ethernet Communication I/F |
1000BASE-T × 1 |
| EtherNet/IP Communication |
Yes (Target/Ethernet port) |
| PROFINET Communication |
• Yes (Slave/Ethernet port) • Conformance class A |
| EtherCAT Communication |
No |
| Parallel I/O |
|
| High-speed input |
1 |
| Normal speed |
9 |
| High-speed output |
4 |
| Normal speed |
23 |
| Interfaces |
|
| Encoder Interface |
None |
| Monitor Interface |
DVI-I output (Analog RGB & DVI-D single link) × 1 |
| USB I/F |
USB2.0 host × 1: BUS Power: Port 5 V/0.5 A USB3.0 × 1: BUS Power: Port 5 V/0.5 A |
| SD Card I/F |
SDHC × 1 |
| Indicator Lamps |
|
| Main |
POWER: Green ERROR: Red RUN: Green ACCESS: Yellow |
| Ethernet |
NET RUN: Green LINK/ACT: Yellow |
| SD Card |
SD POWER: Green SD BUSY: Yellow |
| EtherCAT |
None |
| Power |
|
| Power-supply voltage |
20.4 VDC to 26.4 VDC |
| Current consumption |
|
| When connecting an intelligent compact digital camera |
|
|
• When connecting the following light or lighting
controller without an external power supply
|
FLV-TCC1, FLV-TCC4, FLV-TCC3HB FLV-TCC1EP, FL-TCC1 |
|
• When connecting the
following light or lighting controller
|
FL-TCC1PS, FL-MD@MC |
| |
4.4 A max. |
| Other than above |
2.0 A max. |
| Other |
|
| Built-in FAN |
No |
| Usage Environment |
|
| Ambient temperature range |
Operating: 0°C to 55°C Storage: -25 to +70°C |
| Ambient humidity range |
Operating and Storage: 10 to 90%RH (with no condensation) |
| Ambient atmosphere |
No corrosive gases |
| Vibration tolerance |
5 to 8.4 Hz with 3.5 mm amplitude, 8.4 to 150 Hz, a
cceleration of 9.8 m/s2 100 min each in X, Y, and Z
directions (10 sweeps of 10 min each = 100 min total)
|
| Shock resistance |
Impact force: 150 m/s2 Test direction: up and down/front and behind/left and right |
| Noise immunity |
|
| Fast Transient Burst DC power |
Direct infusion: 2kV, Pulse rising: 5ns, Pulse width: 50ns,
Burst continuation time: 15ms/0.75ms, Period: 300ms, Application time: 1 min
|
| Fast Transient Burst I/O line |
Direct infusion: 1kV, Pulse rising: 5ns, Pulse width: 50ns,
Burst continuation time: 15ms/0.75ms, Period: 300ms, Application time: 1 min
|
| Grounding |
|
| Grounding Type |
D grounding (100 Ω or less grounding resistance) |
| External Features |
|
| Dimensions |
200 mm × 80 mm × 130 mm |
| Weight |
Approx. 1.5 kg |
| Degree of protection |
IEC60529 IP20 |
| Case materials |
PC |
