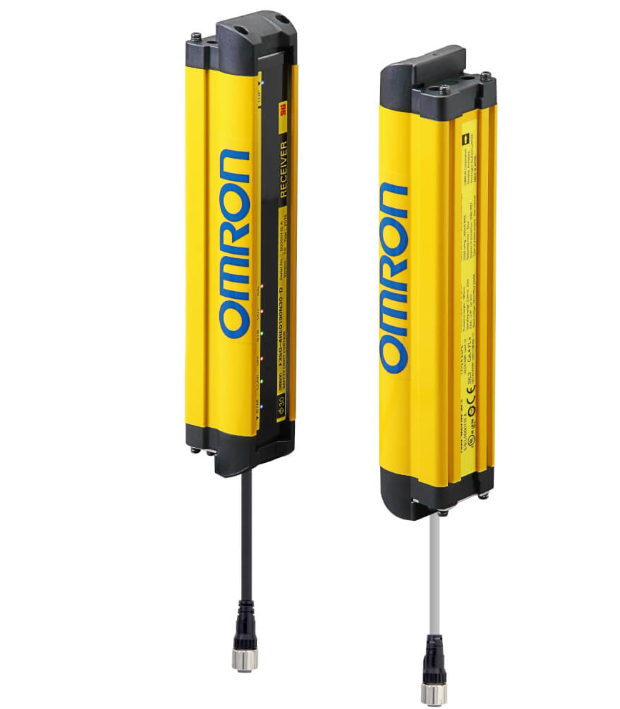

OMRON F3SG-4RE0670P30 Safety Light Curtain 670mm 30mm Detection IP67

Stop guessing when a machine stops working because someone slipped into a dangerous zone. The OMRON F3SG-4RE0670P30 Safety Light Curtain gives you a clear, invisible barrier that shuts down equipment the instant a hand or object breaks the beam. If you run a packaging line, a palletizer, or any automated system, you need reliable protection that meets safety standards without slowing production.

OMRON F3SG-4RE0670P30 Safety Light Curtain 670mm 30mm Detection IP67

This light curtain solves the problem of accidental contact with moving parts. When a workers hand enters the 670 mm safety field, the curtain detects a 30 mm intrusion and instantly cuts power to the machine. The issue matters because a single injury can halt production, raise legal costs, and damage your reputation. OMRONs design delivers a fast 7 ms response, robust IP67 protection, and simple wiring so you can keep the line running safely.

Benefits

• Fast 7 ms response stops the machine before injury occurs.
• 30 mm detection depth catches even small objects or fingers.
• IP67 rating protects the sensor from dust and water, ideal for harsh factories.
• 32-beam layout gives reliable coverage across the full 670 mm width.
• PNP output works with most safety controllers, simplifying integration.

Key Features

• Safety class 4 according to IEC 61496-1.
• Hand protection type safety field.
• Detection capability of 30 mm.
• Maximum safety range up to 20 m.
• Supply voltage 19.2 - 28.8 V DC.
• Output current 300 mA per protected output.
• M12 pigtail Smartclick connector for quick wiring.
• Wavelength 870 nm for reliable beam performance.
• Operating temperature -10 C to 55 C.
• Overall sensor size 670 mm 35 mm 35 mm.
• Fast response suitable for ON/OFF safety applications.
• Simple wiring reduces installation time.

Specifications:
