Description

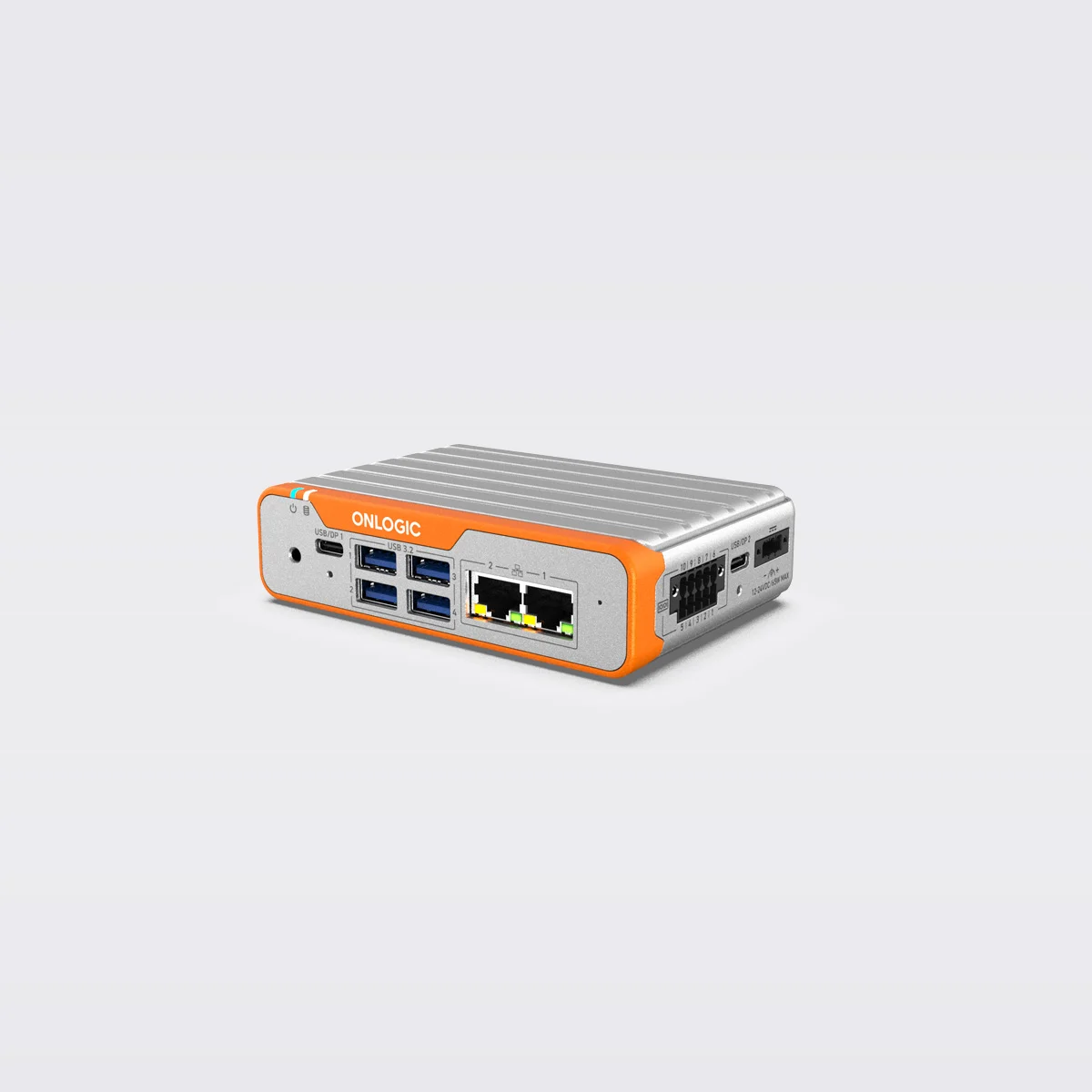

The CL260 is an ultra small form factor edge gateway and controller. It provides impressive computing performance via Intel® N-Series processing in a palm-sized system engineered for reliability and longevity with the advanced edge orchestration of ZEDEDA onboard.
Highlights
- Pre-imaged with ZEDEDA edge orchestration software
- Intel N-series processing with 8 GB of LPDDR5 memory
- 0°C to 50°C operating temp, terminal block power input
Specifications:
| System |
|
| Hardware Line |
Industrial (Fanless) |
| Cooling Type |
Fanless |
| Processor Generation |
Intel® Processor N-series |
| Processor |
Intel® N150 / Intel® N250 |
| Processor Cores |
4 |
| Processor Clock Speed Notes |
Intel® N150 Base: 0.8 GHz; Intel® N250 Base: 1.3 GHz |
| LAN Controller |
Realtek RT8111G-CG |
| Memory Type |
LPDDR5 |
| Memory Capacity |
8 GB |
| Memory Clock Speed |
4800 MHz |
| Memory Channels |
Single Channel |
| Display |
|
| Display Note |
Supports display over USB-C only |
| Input Output |
|

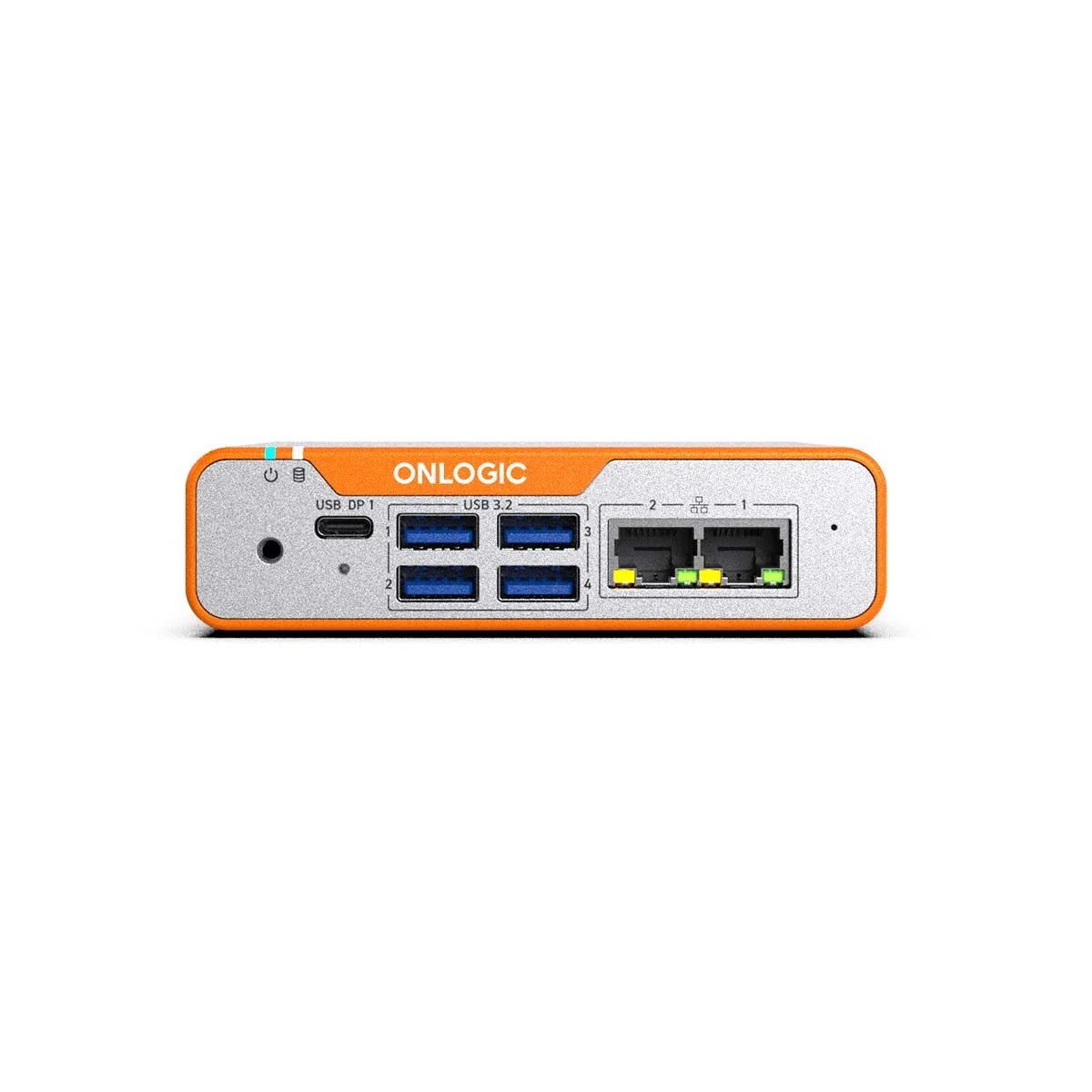

| Front I/O |
1× USB 3.2 Gen1 Type-C (DP 1.4, 5V/3A); 4× USB 3.2 Gen1 Type-A;
2× 1 GbE LAN; 1× Reset Button; 1× Power Button
|

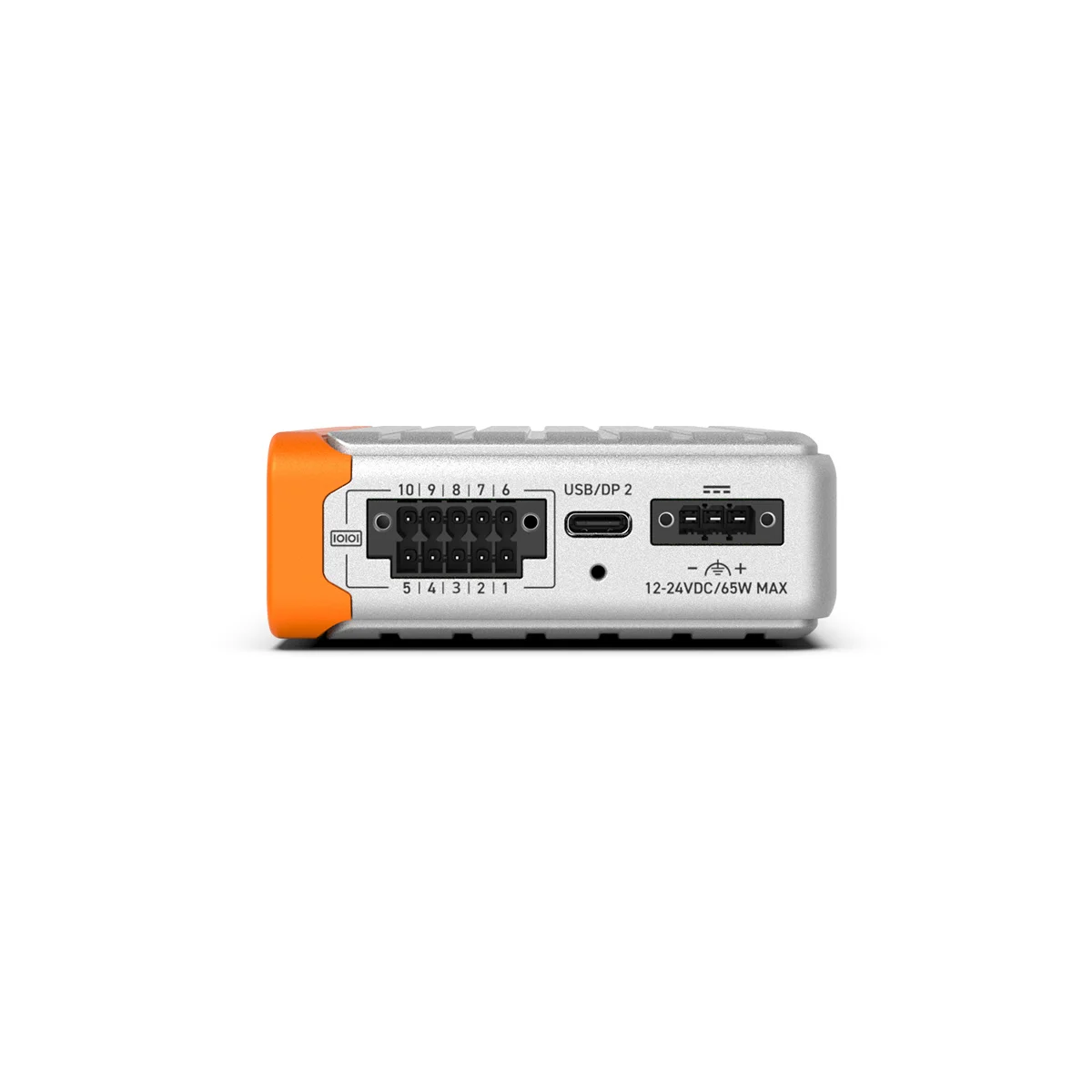

| Rear I/O |
1× USB 3.2 Gen1 Type-C (DP 1.4, 5V/3A); 1× Serial Port (RS-232/422/485);
1× 3-pin Terminal Block (12–24V Input)
|
| Expansion and Features |
|
| Storage Options |
1× M.2 2280 M-key |
| Mechanical |
|
| Dimensions |
115 × 30 × 82 mm (4.5" × 1.2" × 3.2") |
| Weight |
1 kg |
| Case Material |
Cast Aluminum |
| Case Port Punchouts |

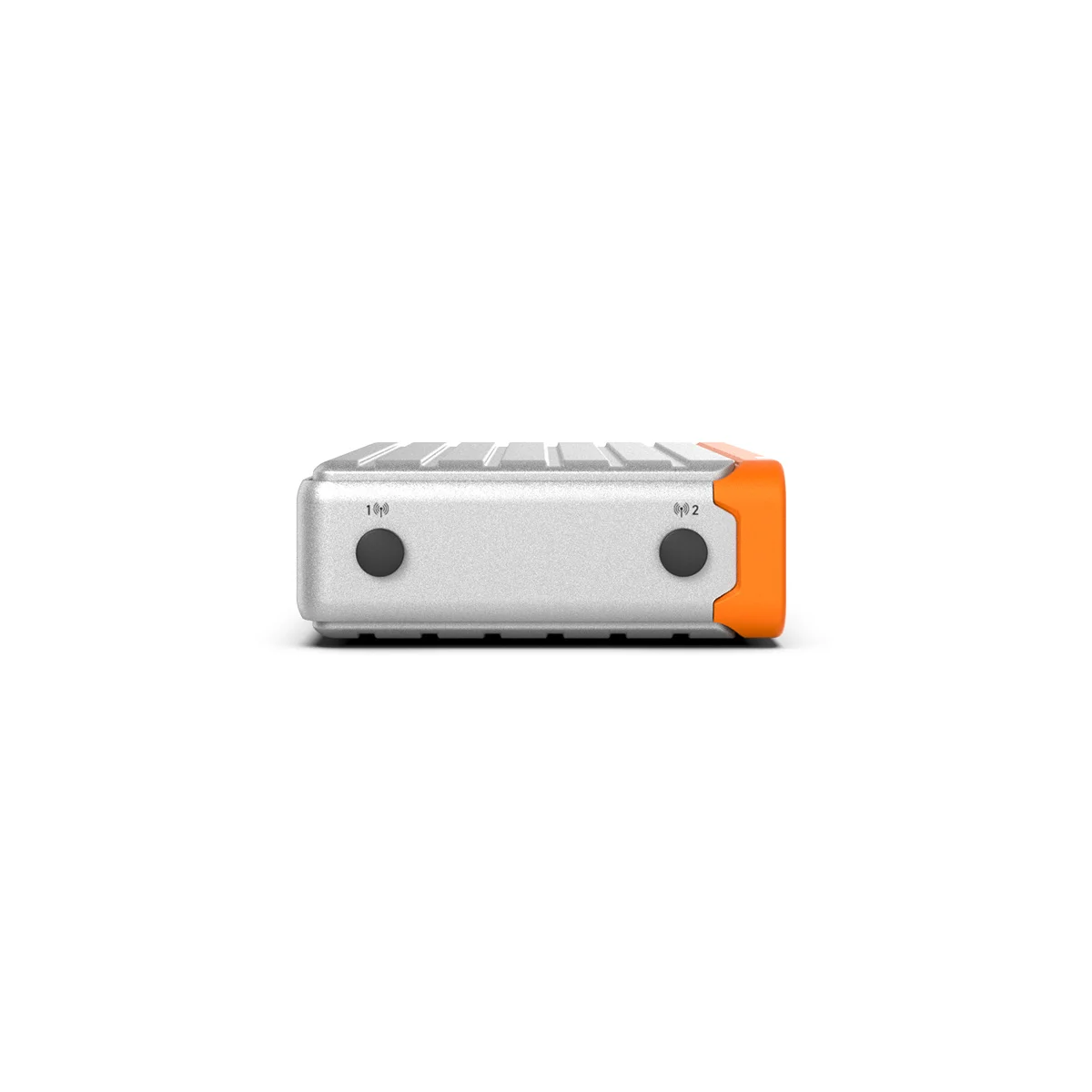

2 Antenna Holes |
| Case Mounting Options |
DIN Mount, VESA Mount |
| Power |
|
| Input Voltage Minimum |
12 V |
| Input Voltage Maximum |
24 V |
| Power Input Connector |
3-pin Terminal Block |
| WIFI |
Intel Industrial M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card |
| Wi-Fi Antennas |
Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna |
| Environmental and Safety |
|
| Regulatory Certifications |
CISPR 32/35 & EN 55032/55035; WEEE Directive (2012/19/EU);
FCC Part 15 Class A; IEC/UL/EN 62368-1; RCM; RoHS 3;
TAA Compliance; UL/IEC/EN 61010-1; UL/IEC/EN 61010-2-201; IEC/EN 60601-1-2:2014
|
| Operating Temperature |
Up to 50°C |
| Operating Temperature Notes |
0°C to 40°C with approved AC adapter |
| Humidity |
5% to 95% (Non-condensing) |
| Other |
|
| Additional Features |
Onboard TPM 2.0 module |
| Compatible Software |
Zededa |
| Included Accessories |
1× 3-pin Terminal Block Mating Connector |
| Partner |
ZEDEDA |
| Notes |
When using PoE Splitter: CPU Turbo must be disabled; UL Certification not supported |
