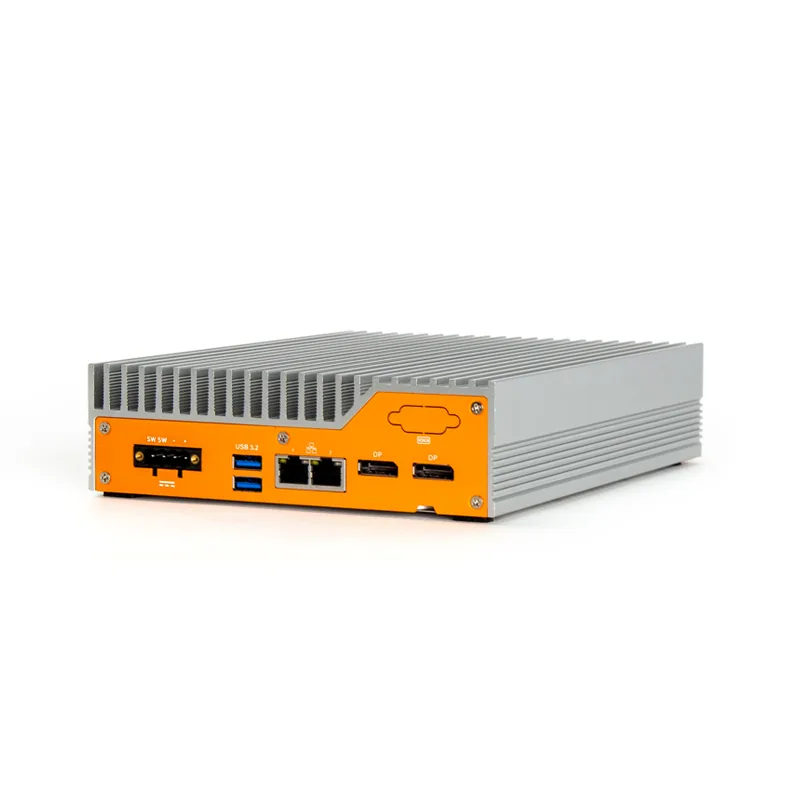

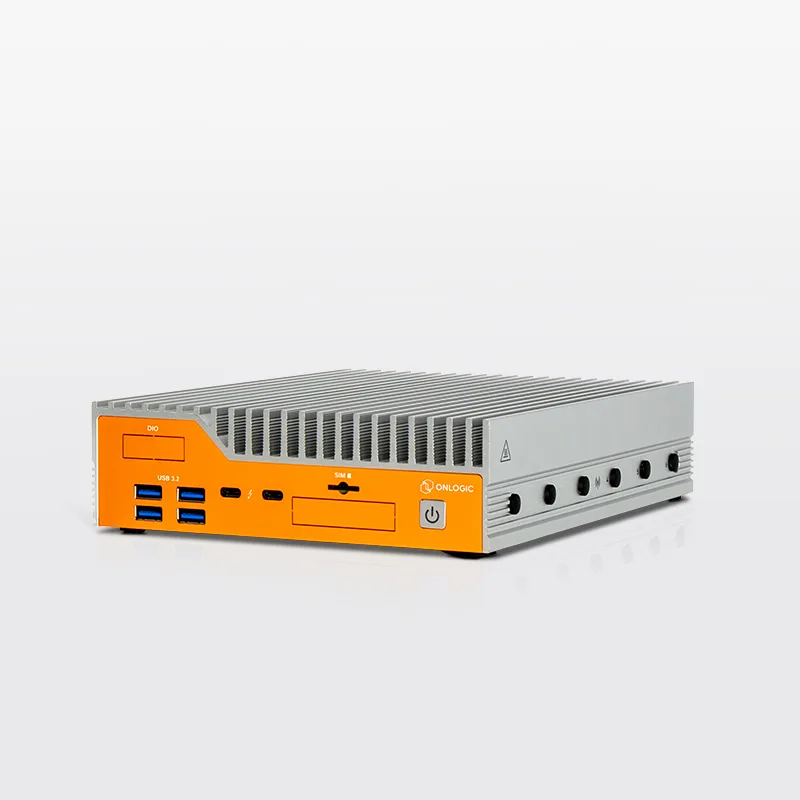

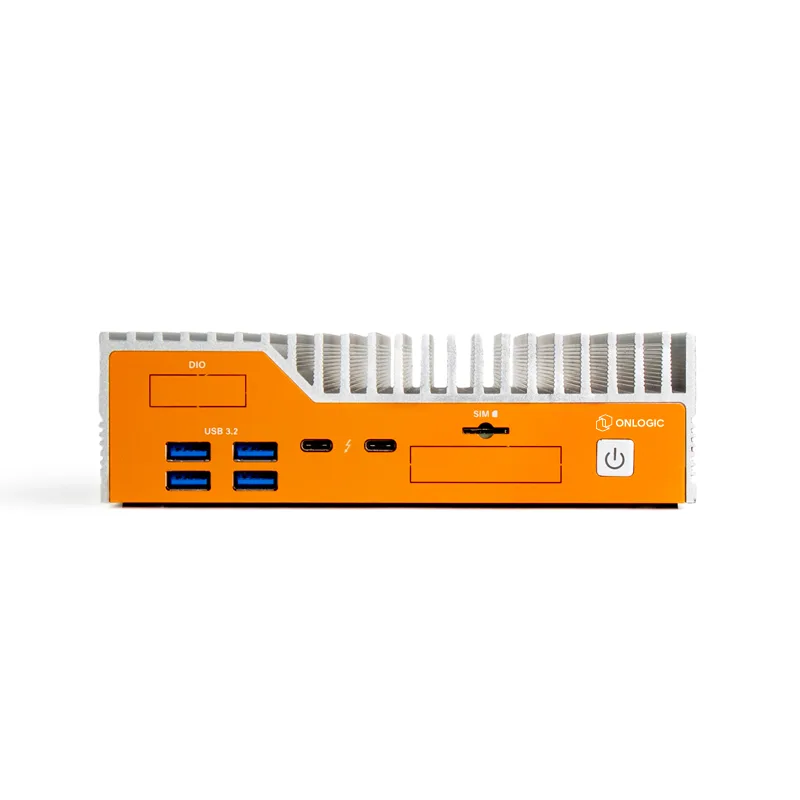

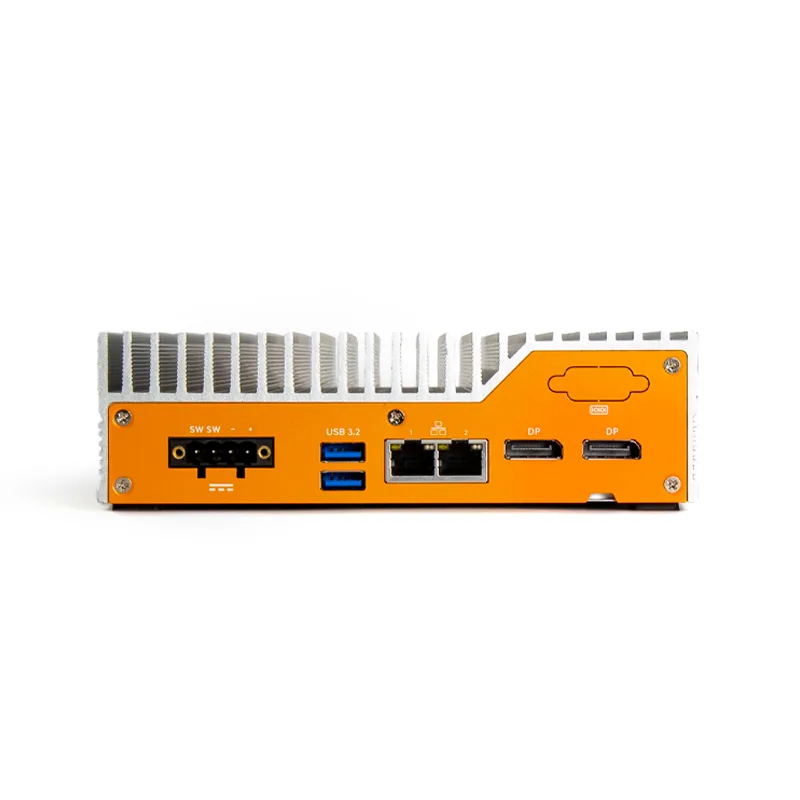

OnLogic Helix 511 Embedded Industrial PC

Industrial machines often need a computer that can run nonstop, stay cool without a fan, and still make fast decisions. When a PC overheats or pauses, the whole production line can stop, costing time and money. The OnLogic Helix 511 Embedded Industrial PC solves this by offering fanless, rugged performance with the latest Intel 12th-Gen processors, so you get reliable, real-time computing in harsh environments.

OnLogic Helix 511 Embedded Industrial PC with OnLogic

Imagine a tiny computer that never needs a fan, never drifts in temperature, and still runs the most demanding automation software. The Helix 511 is built for factories, transportation, and edge devices that must stay online 24/7. It gives you the power of Intel Alder Lake cores, four serial ports, and dual-lane 2.5 GbE networking-all in a compact, fanless aluminum case. If you need a system that can decide in real time and survive dust, vibration, and heat, this is the machine you have been looking for.

Usages

The Helix 511 fits into many industrial scenarios. It can be mounted on a production line to control robotic arms, used in a railway signaling cabinet to process sensor data, installed in a vending machine for secure payment handling, or placed in a remote oil-field monitor to collect and send telemetry. Its VESA, DIN, and wall-mount options let you place it wherever space is limited, while the optional COM/CAN port supports legacy equipment.

Benefits

• Fanless design removes moving parts, so maintenance is almost zero.
• 12th-Gen Intel cores deliver fast calculations for real-time control.
• Dual 2.5 GbE ports give reliable, high-speed network connections.
• Supports up to 64 GB DDR5 memory, allowing large data buffers.
• Certified for Red Hat Enterprise Linux, ensuring stable software support.

Key Features

• Fanless aluminum and steel enclosure for dust and vibration resistance.
• Intel LGA1700 socket with Celeron, i3, i5, or i7 options.
• Turbo boost up to 4.8 GHz for peak performance.
• Two DDR5 slots, up to 64 GB dual-channel memory.
• Four front USB-3.2 Gen 2 ports and two Thunderbolt 4 ports.
• Four optional serial ports for legacy device communication.
• On-board TPM 2.0 for hardware security.
• 1 M.2 M-key 2280 slot supporting SATA or NVMe PCIe Gen 4 storage.
• Two 2.5 GbE LAN controllers (Intel I225-IT/L M) for fast networking.
• Supports up to four displays via DP and HDMI outputs.

Specifications
