Onsemi AR0231AT, CMOS Image Sensor, Sensor Evaluation Board

When you are building a camera system for a car or a robot, the hardest part is checking that the image sensor works exactly as you need. A bad sensor can cause blurry images, missed objects, or a system that fails in extreme weather. The Onsemi AR0231AT evaluation board lets you test the sensor quickly, so you can be sure the vision system is reliable before you spend time on a full design.

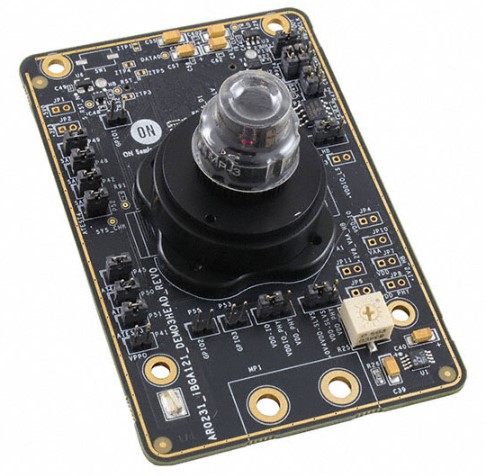

Onsemi AR0231AT, CMOS Image Sensor, Sensor Evaluation Board with Onsemi

This board is a ready-to-use platform that holds the AR0231AT CMOS image sensor. Engineers use it to see how the sensor behaves in real-time video, HDR scenes, and multi-camera setups. If you are trying to meet automotive ADAS standards, you need a way to verify image quality, synchronization and temperature performance. The board gives you that verification without soldering a custom PCB.

Key Features

• 2.3 MP sensor with 1928 x 1208 active pixels.
• 3 m 3 m pixel size for good low-light performance.
• 1/2.7-inch optical format fits compact camera modules.
• RGB color filter array provides true-color images.
• 1080p 30 fps video output for high-definition testing.
• High Dynamic Range (HDR) support for bright and dark scenes.
• Parallel sensor output interface for easy connection.
• Multi-camera synchronization capability.
• LED flicker mitigation (LFM mode) for stable indoor lighting.
• Up to four context switches for multi-function applications.
• Automatic or user-controlled black level adjustment.
• Operating temperature range -40 C to +125 C (automotive grade).
