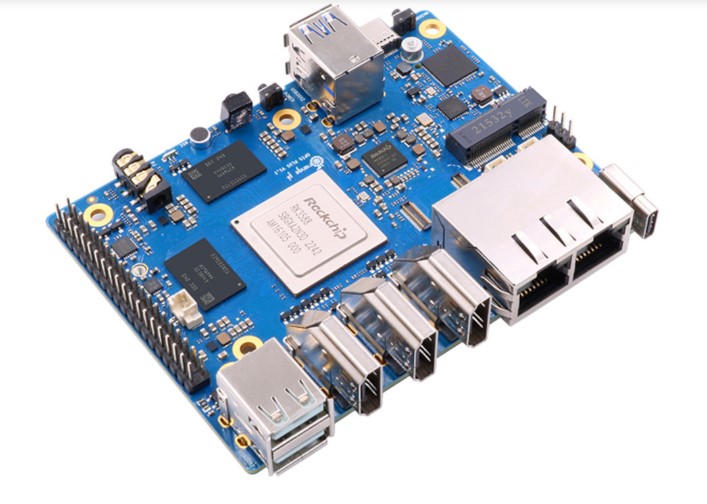

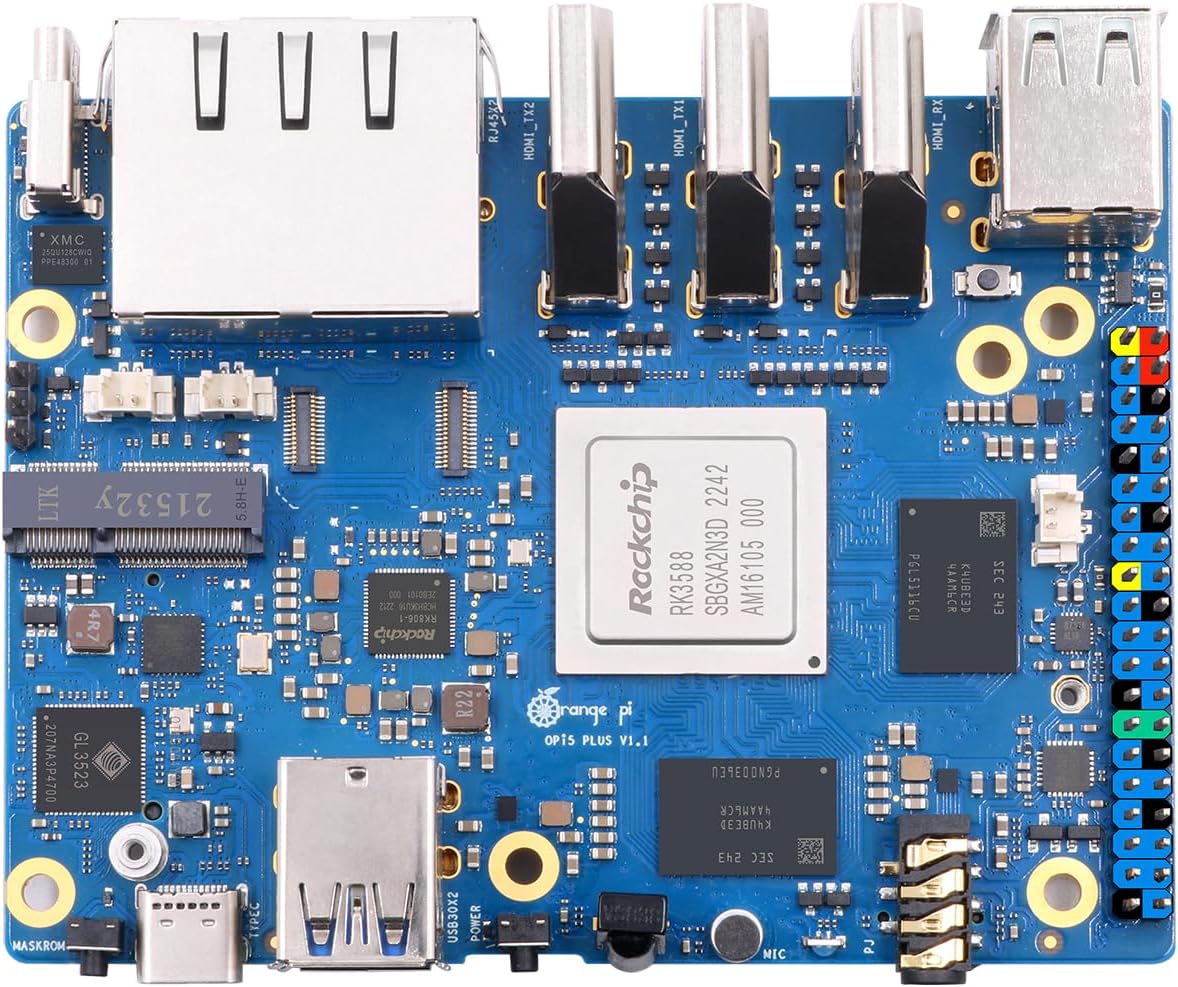

Orange Pi 5 Plus 32GB RAM Rockchip RK3588 8 Core 64 Bit Single Board Computer
Orange Pi 5 Plus uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; embedded NPU supports INT4/INT8/INT16/FP16 mixed computing, with up to 6Tops of computing power, which can meet the edge computing needs of most end devices; 8GB/16GB LPDDR4/4x memory and eMMC socket, which can be connected with 32GB/64GB/256GB eMMC module. Orange Pi 5 Plus supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android 12, Debian 11, Ubuntu 22.04 and other operating systems.

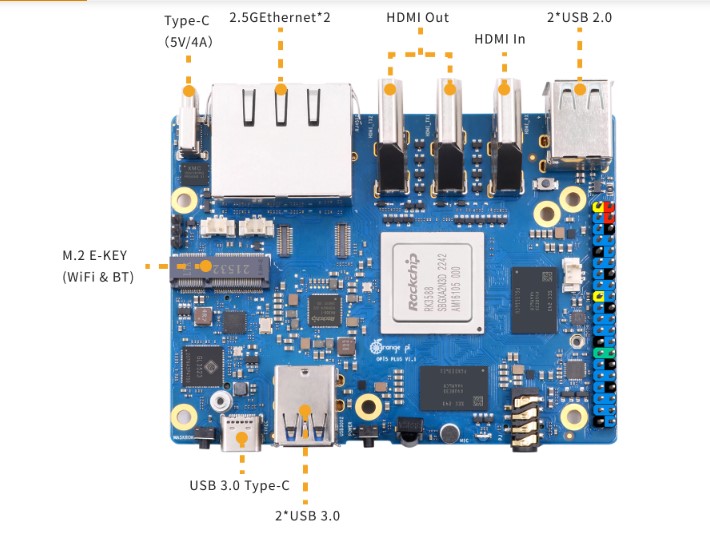

Orange Pi 5 Plus provides abundant interfaces, including two HDMl output ports, one HDMl input port , two PCIe extended 2.5G Ethernet ports, an M.2 M-Key slot that supports installation of NVMe SSDs, and an M.2 E-Key slot that supports Wi-Fi6/BT modules. In addition, Orange Pi 5 Plus has two USB 3.0, two USB 2.0, and two Type-C (one of which is a power connector).
Orange Pi 5 Plus has a wide range of uses to help embedded system development enthusiasts explore, and is also suitable for enterprises developing mini machine vision systems with multiple Ethernet ports, Orange Pi 5 Plus offers enhanced high-end applications performance experience to meet the needs of product customization in different industries.
Key Features:
- Powered by the Rockchip RK3588 octa-core 64-bit processor (4× Cortex-A76 + 4× Cortex-A55) with clock speeds up to 2.4 GHz for high-performance edge computing.
- 32 GB LPDDR4X RAM provides ample memory for AI, virtualization, and multitasking workloads.
- Integrated Mali-G610 GPU and 6 TOPS NPU accelerate graphics rendering and AI inference applications.
- Rich connectivity including dual 2.5 GbE LAN, dual HDMI 2.1 outputs, HDMI input, USB 3.0, USB-C, and M.2 NVMe SSD support.
- Supports multiple operating systems including Orange Pi OS, Android 12, Ubuntu 22.04, and Debian 11 for flexible embedded development.
Specifications:
| SoC |
Rockchip RK3588 (8nm LP process) |
| CPU |
8-core 64-bit processor; 4 × Cortex-A76 (2.4GHz), 4 × Cortex-A55 (1.8GHz) and separate NEON co-processors |
| GPU |
Arm Mali-G610; Built-in 3D GPU; Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 |
| NPU |
Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6TOPS computing power |
| PMU |
RK806-1 |
| RAM |
32GB (LPDDR4/4x) |
| Memory |
QSPI Nor FLASH: 16MB/32MB; MicroSD card slot: up to 128GB; eMMC socket: 16GB/32GB/64GB/128GB/256GB
eMMC module can be attached; M.2 2280 slot for NVMe SSDs (PCIe 3.0 ×4) up to 2,000 MB/s
|
| I/O |
|
| USB |
USB3.0 ×2; USB2.0 ×2; Type-C ×1 |
| Video |
2 × HDMI 2.1 out up to 8K@60FPS; 1 × Type-C with DP TX 1.4A, up to 8K@30FPS; 1 × HDMI in with up to
4K@60FPS; 1 × MIPI DSI TX 4 Lane, up to 4K@60Hz
|
| TP Interface |
1 × 6Pin FPC socket |
| Camera |
1 × MIPI CSI 4 Lane |
| Audio |
CODEC: ES8388; 1 × Audio 3.5mm jack with mic; 1 × MIC In; 1 × HDMI 2.1 eARC; 1 × SPK |
| Ethernet |
2 × PCIe 2.5G LAN (RTL8125BG) |
| Expansion Port |
40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO |
| PCIe M.2 M-KEY Socket |
M.2 connector M key (bottom) for NVMe with PCIe 3.0 ×4 lanes 2280 SSD |
| PCIe M.2 E-KEY Socket |
M.2 connector E key (top) for connectivity with PCIe 2.0 ×1/PCM/UART/USB2.0, 2230 Wi-Fi6 /BT supported |
| Button |
1 × MaskROM key; 1 × Recovery; 1 × On/Off key |
| Power Source |
Support Type-C power supply, 5V@4A |
| IR Receiver |
1 × IR receiver tube |
| LED |
RGB LED side light |
| FAN |
5V FAN |
| RTC |
2Pin: RTC backup battery |
| Debugging |
3Pin debug serial port (UART) |
| Supported OS |
|
| Supported OS |
Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu22.04, Debian11, Android12 |
| Appearance Specification |
|
| Dimension |
100mm × 75mm |
| Weight |
86.5g |
