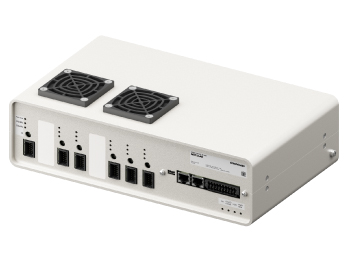

Oriental Motor MRCU3AK, MRCU Series Robot Controller Unit (3 Axes)

Tired of robot stalls and tangled wiring that slow down your production line? The Oriental Motor MRCU3AK, MRCU Series Robot Controller Unit (3 Axes) is the compact brain that keeps three-axis robots moving smoothly. It solves the common problem of unreliable control signals, so you can keep your machines running without costly downtime.

Oriental Motor MRCU3AK, MRCU Series Robot Controller Unit (3 Axes)

Many small to medium factories struggle with controllers that cannot handle multiple axes or lack Ethernet connectivity. When the controller cannot keep up, the robot hesitates, produces errors, and the whole line stops. This unit removes that bottleneck by offering three-axis control, built-in EtherNet/IP, and reliable photocoupler inputs and outputs. The result is a steady, predictable motion that matches the speed of your workflow.

Benefits

• Fast, reliable motion reduces cycle time and increases output.
• EtherNet/IP integration lets you monitor and adjust the robot from a PC.
• Photocoupler inputs and outputs protect against electrical noise.
• Compact design saves space in tight control cabinets.
• Built-in safety compliance (CE) meets industrial standards.

Key Features

• Supports 3 axes for SCARA, Cartesian, and gantry robots.
• Power supply options: 24 VDC 5 % or 48 VDC 5 %.
• 8 photorelay inputs and 8 photorelay outputs.
• EtherNet/IP communication up to 100 Mbps.
• P-to-P, linear, circular, and arc interpolation commands.
• Real-time graphic monitoring of robot position and alarms.
• IP10 protection rating for dust-free environments.
• Operating temperature from 0 C to +40 C.
• Maximum cable length 50 m for flexible installation.
• Supports DHCP or manual IP configuration.
• Compatible with CE safety standards.
• Ready for star, linear bus, or ring network topologies.
