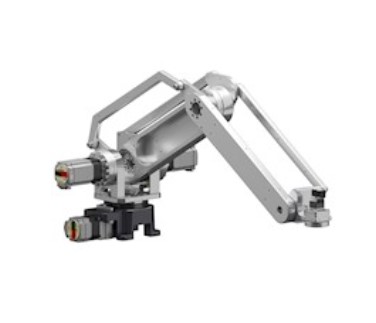

Oriental Motor OVR Series Articulated 4-Axis Robot
Oriental Motor OVR Series Articulated 4-Axis Robot

Oriental Motor OVR Series Articulated 4-Axis Robot

UK Free Shipping UK Free Shipping over £249

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: RBOT-056

MPN #: OVR4088K5-V

The OVR Series Articulated 4-axis small horizontal transport robot features a simple mechanism that can be easily controlled and constructed cost-effectively. Control with the MRC Series controller and AZ Series motor drivers.

  • Parallel link mechanism
  • Transportable mass 5 kg
  • The end of the arm is always mechanically level with the installation surface, ensuring stable horizontal transport





Features:
  • Number of Axes: 5 axes
  • Maximum Reach: 480mm
  • Power Supply: DC Input
  • Transportable Mass: 5kg
  • Robot: Articulated





Specification:
Category Industrial Robots
Sub-Category Articulated Robot
General Information
Product Line OVR
Robot Configuration Articulated
Number of Axes 4-axis
Reach & Payload
Max. Vertical Reach 900 mm
Max. Horizontal Reach 880 mm
Transportable Mass 5 kg
Chassis Mass 18.0 kg
Installation Type Frame mounting
Electrical Specifications
Power Supply DC
Input Voltage (V) 24 VDC
Standard Cycle Time (sec) 0.7
Motion Range
Moving Range - S-axis (Swiveling) ±170 deg
Moving Range - L-axis (Lower arm) −27~+80 deg
Moving Range - U-axis (Upper arm) −58~+35 deg
Moving Range - R-axis (Wrist swiveling) ±180 deg (±170 deg when the robot controller MRC01 is used)
Accuracy & Inertia
Repetitive Positioning Accuracy ±0.05 mm
Permissible Inertia (Wrist swiveling axis) 0.069 kgm²
