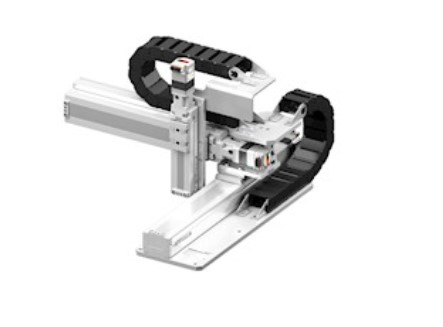

Name: Oriental Motor OVR Series Cartesian 3-axis Robots (R type)
SKU: RBOT-058
Price: 1.8 USD
Availability: InStock

Oriental Motor OVR Series Cartesian 3-axis Robots (R type)

UK Free Shipping

Description
Documents
Reviews

The OVR Series Cartesian 3-axis small horizontal transport robot features a simple mechanism that can be easily controlled and constructed cost-effectively. Control with the MRC Series controller and AZ Series motor drivers.

Delivered assembled, reducing equipment startup time and labor
Moving range 300 mm × 300 mm × 100 mm (X-Y-Z)
Transportable mass 2.5 kg

Key Features:

Number of Axes: 3 axes
Combination Configuration: XYZ
Combination Direction: L type
X-axis Stroke:300mm
Y-axis Stroke :300mm
Z-axis: EZS Series
Z-axis Stroke: 100mm
Power Supply: DC Input
Robot Configuration: Cartesian

Specifications:

Category	Industrial Robots
Sub-Category	Cartesian Robot
General Information
Product Line	OVR
Robot Configuration	Cartesian
Combination Configuration	XYZ
Combination Direction	R type
Number of Axes	3-axis
Installation Type	Frame mounting
Electrical Specifications
Input Voltage (V)	24 VDC
Power Supply	DC
Payload & Weight
Transportable Mass	2.5 kg
Chassis Mass	18.4 kg
Motion Range
Moving Range - X-axis	300 mm
Moving Range - Y-axis	300 mm
Moving Range - Z-axis	100 mm
X-axis Stroke	300 mm
Y-axis Stroke	300 mm
Z-axis	EZS Series
Z-axis Stroke	100 mm
Speed
Maximum Speed - X-axis	600 mm/s
Maximum Speed - Y-axis	600 mm/s
Maximum Speed - Z-axis	600 mm/s
Accuracy
Repetitive Positioning Accuracy (mm)	±0.02
