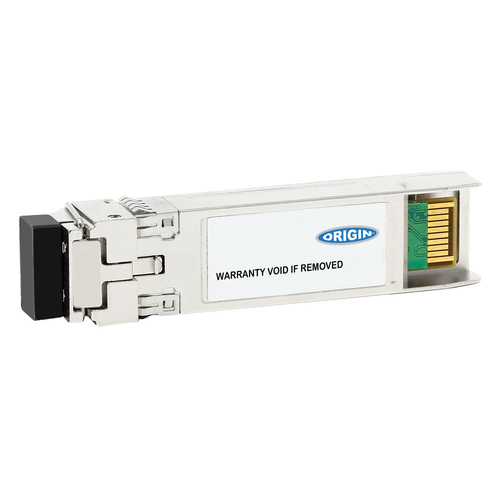

Origin Storage EX-SFP-10GE-SR 850nm SFP+ 10Gbps 984ft Fiber Optic Transceiver
The Origin Storage EX-SFP-10GE-SR is a fiber optic SFP+ transceiver module designed for 10 Gigabit Ethernet connectivity. It supports Ethernet 10GBase-SR technology and provides a maximum transfer distance of 984 ft.
This 10Gbps SFP+ transceiver operates at an optical wavelength of 850 nm and features a plug-in module form factor. It uses wired connectivity technology for compatible high-speed optical networking applications.
The module features a metal housing, Digital Diagnostics Monitoring (DDM), and support for hot-swappable and hot-pluggable operation. It also features a lead-free design and blister package.
The Origin Storage EX-SFP-10GE-SR provides a 1 x Ethernet 10GBase-SR interface with LC multi-mode connectivity. It requires 3.3 V and is designed for compatible 10 Gigabit Ethernet equipment.
The transceiver operates from 32 °F to 158 °F and complies with Plug and Play, EMC, FCC, RoHS, and REACH standards. It is supplied as a packaged quantity of one and includes a 10-year warranty.
Key Features
-
10Gbps data transfer rate
-
SFP+ transceiver module
-
Ethernet 10GBase-SR
-
850 nm optical wavelength
-
984 ft maximum transfer distance
-
LC multi-mode interface
-
Digital Diagnostics Monitoring (DDM)
-
Metal housing
-
Hot-swappable and hot-pluggable
-
Lead-free
-
3.3 V required voltage
-
Plug and Play, EMC, FCC, RoHS, REACH compliant
Specifications
| Miscellaneous |
|
| OEM Manufacturer Equivalent Part Number |
Juniper EX-SFP-10GE-SR |
| Compliant Standards |
Plug and Play, EMC, FCC, RoHS, REACH |
| Networking |
|
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Features |
Metal housing, Digital Diagnostics Monitoring (DDM), blister package, hot swappable, hot-pluggable, lead-free |
| Data Transfer Rate |
10Gbps |
| Optical Wave Length |
850 nm |
| Cabling Type |
Ethernet 10GBase-SR |
| Data Link Protocol |
10 Gigabit Ethernet |
| Type |
SFP+ transceiver module |
| Max Transfer Distance |
984 ft |
| Header |
|
| Product Line |
Origin Storage |
| Packaged Quantity |
1 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - 10 years |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
158 °F |
| Service & Support |
|
| Type |
10-year warranty |
| General |
|
| Device Type |
SFP+ transceiver module |
| Color |
Silver |
| Form Factor |
Plug-in module |
| Expansion & Connectivity |
|
| Interfaces |
1 x Ethernet 10GBase-SR - LC multi-mode |
| Power |
|
| Voltage Required |
3.3 V |
