Tired of slow, missed scans that hold up your checkout line? The Origin Storage LI4278-TRBU0100ZER, 1D Handheld Barcode Scanner is built to end that frustration. It is a cordless, hand-held device that reads 1D barcodes quickly and reliably. If you need to move products, tickets or inventory without stopping, this scanner gives you the speed and accuracy you need.

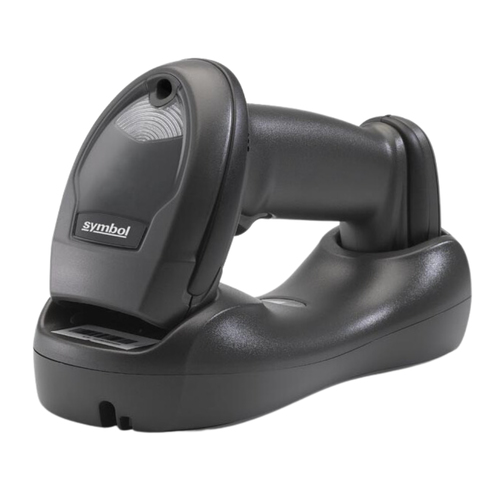

Origin Storage LI4278-TRBU0100ZER, 1D Handheld Barcode Scanner
Retail staff often waste time aiming at blurry codes, and warehouse workers lose hours when a scanner cannot keep up with fast moving items. Those delays cost money and upset customers. This scanner solves the problem by offering a bright LED line, fast 547 scans per second, and a Bluetooth link that works up to 100 m away. You get a smooth flow of data without tangled cords.
Key Features
- LED linear imager for clear 1D barcode capture.
- Supports UPC/EAN, Code 39, Code 128, GS1 DataBar and more.
- Scan speed of 547 scans per second.
- Motion tolerance up to 63.5 cm/sec for moving items.
- Bluetooth 2.1 Class 2 with up to 100 m range.
- USB, RS232, RS485 and keyboard wedge options in cradle.
- Rechargeable Li-Ion or NiMH battery lasting up to 72 hours.
- IP53 sealed housing protects against dust and splashes.
- Drop resistance of about 1.5-1.8 m.
- Compact size 98 70 186 mm and weight 224 g for easy handling.
Specifications
| General Information |
|
| Model |
LI4278-TRBU0100ZER |
| Manufacturer SKU |
ORG-ZS012 |
| Scanner Type |
Handheld cordless linear imager |
| Color |
Black / White |
| Scanning & Performance |
|
| Scan Technology |
LED linear imager (1D scanning) |
| Supported Codes |
1D barcodes (UPC/EAN, Code 39, Code 128, GS1 DataBar etc.) |
| Scan Speed |
547 scans/sec |
| Motion Tolerance |
63.5 cm/sec |
| Scan Pattern |
Single bright aiming line |
| Light Source |
LED 617 nm (amber) |
| Wireless & Interfaces |
|
| Wireless Technology |
Bluetooth 2.1 Class 2 |
| Wireless Range |
Up to 100 m (line of sight, cradle mode) |
| Cradle Interfaces |
USB, RS232, RS485 (IBM), Keyboard Wedge |
| Power |
|
| Battery |
Rechargeable Li-Ion / NiMH (model dependent) |
| Battery Life |
Up to 72 hours / ~57,000 scans per charge |
| Environmental Conditions |
|
| Drop Resistance |
Survives ~1.5–1.8 m drops |
| Protection Rating |
IP53 sealed housing |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Humidity |
5%–85% non-condensing |
| Physical Characteristics |
|
| Dimensions |
98 × 70 × 186 mm |
| Weight |
224 g |
| Included Accessories |
|
| Included Accessories |
USB cradle (EMEA bundle), charging stand |
