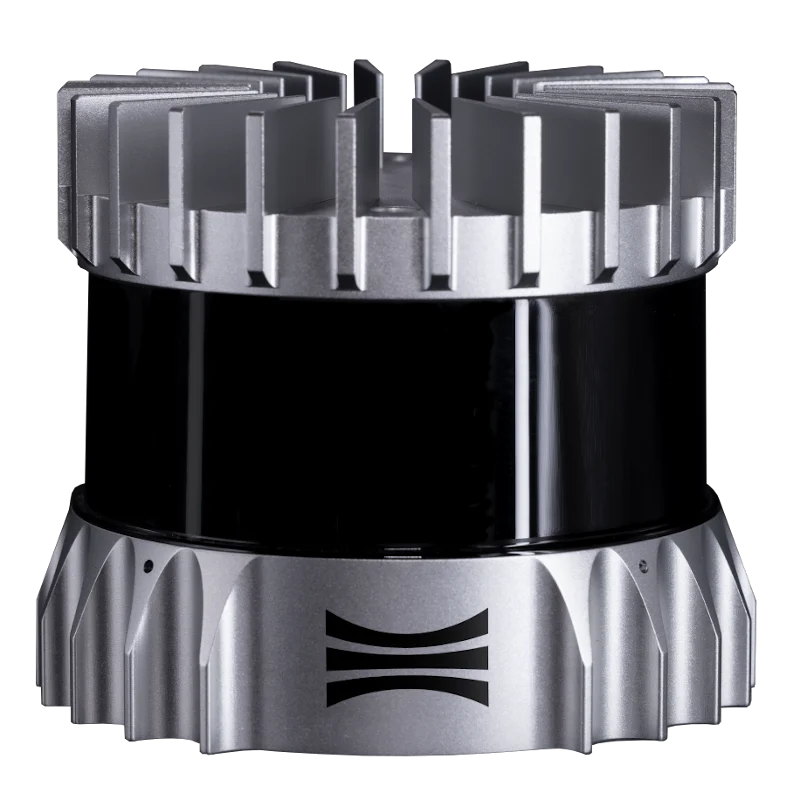

Ouster OS1, 32-Channel, Mid-Range 45° Field of View Lidar Sensor

Ouster OS1, 32-Channel, Mid-Range 45° Field of View Lidar Sensor

When you need to see clearly up to a few hundred metres while keeping power and weight low, many sensors either fall short on range or become too heavy and power-hungry. This gap can cause blind spots, reduced safety and costly redesigns. The Ouster OS1, 32-Channel, Mid-Range 45° Field of View Lidar Sensor fills that gap with a balanced blend of range, resolution and durability, giving you a dependable view of your environment without compromising on efficiency.

Key Features

• Product Model: OS1 - identifies the specific Ouster series for easy integration.
• Field of View: 45° - provides a focused vertical sweep ideal for ground-level perception.
• Sensor Type: Mid-Range LiDAR - balances distance capability with compact power use.
• Range at 10% Target: 90 m - ensures reliable detection of objects at medium distances.
• Precision (up to): 0.25 cm +/- - delivers centimetre-level accuracy for detailed mapping.
• Vertical Resolution (up to): 0.34° - captures fine vertical detail across the scene.
• Horizontal Resolution (up to): 0.09° - offers dense horizontal point clouds for smooth surfaces.
• Points per Second: 655,360 - generates a rich data stream for real-time processing.
• Ingress Protection: IP68, IP69K - protects against dust and water, suitable for outdoor use.

NOTE:

 VERTICAL RESOLUTION

  OS1-32 : 32 channels
  OS1-64 : 64 channels
  OS1-128 : 128 channels

Specifications
