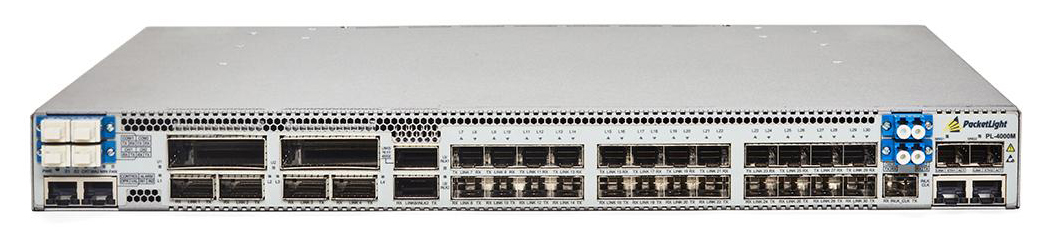

PacketLight PL-4000M, 600G High Capacity MuxPonder/Transponder
The PacketLight PL-4000M is a 600G high capacity muxponder/transponder designed for optical transport networks that need flexible service aggregation and high-speed DWDM connectivity. It supports a single 400G muxponder configuration, with client interfaces aggregated into a 400G uplink, as well as dual 100/200/300G muxponder configurations.
The platform supports a wide range of client services, including 10GbE, 25GbE, 100GbE, 16G/32G Fibre Channel, and OTU2/2e/4. QSFP28, SFP+, and SFP28 optical interfaces provide flexibility for connecting different client equipment and optical network services.
For DWDM applications, the PL-4000M provides dual CFP2-DCO 400G uplinks with DWDM ITU-T G.694.1 grid tuneability and C-band flex-grid support. It supports oFEC and multiple modulation options including 400G 16QAM, 300G 8QAM, 200G QPSK, and 100G DEQPSK, with specified optical performance for long-distance transmission.
The system can be equipped with up to two optional EDFA optical amplifier modules and an optional 1+1 optical switch for facility protection. It also provides a single QSFP-DD FR4/LR4 uplink for non-DWDM applications, while amplifier operating modes include automatic gain control and automatic power control.
The PL-4000M provides extensive network management and monitoring capabilities through Ethernet, SFP, serial, and external alarm interfaces. It supports multiple management protocols, hitless traffic software upgrades, optical and OTN performance monitoring, Layer 1 and Layer 2 performance monitoring, and hot-swappable power and cooling components for reliable optical transport deployments.
Key Features
- Single 400G Muxponder or dual 100/200/300G Muxponder configurations
- Dual CFP2-DCO 400G uplinks with C-band flex-grid support
- Supports 10GbE, 25GbE, 100GbE, 16G/32G Fibre Channel and OTU2/2e/4
- Supports 400G 16QAM, 300G 8QAM, 200G QPSK and 100G DEQPSK
- Up to two optional EDFA modules and optional 1+1 optical switch
- Single QSFP-DD FR4/LR4 non-DWDM uplink
- Supports extensive management, OAM and performance monitoring functions
- 100 to 240 VAC or -44 to -60 VDC with hot-swappable PSU redundancy
SPECIFICATION
| PRODUCT |
|
| Single 400G Muxponder |
mix of client interfaces aggregated into a 400G uplink |
| Optical Amplifiers |
Up to two EDFA modules (optional) |
| Optical Switch |
1+1 facility protection (optional) |
| DWDM UPLINK CHARACTERISTICS |
|
| Optical Interface |
Dual CFP2-DCO 400G uplinks |
| Tuneability Range |
DWDM ITU-T G.694.1 grid |
| Tuneability Range |
C-band, with flex-grid support |
| FEC Support |
oFEC |
| CFP2-DCO |
Tx power 400G: -8dBm to +3dBm |
| Rx Sensitivity at High OSNR (>36dB) |
400G 16QAM: -20dBm |
| OSNR Sensitivity |
400G 16QAM: 24dB |
| Chromatic Dispersion Tolerance |
400G: 24,000ps/nm |
| CLIENT CHARACTERISTICS |
|
| Service Types |
10GbE, 25GbE, 100GbE |
| Service Types |
16G/32G Fibre Channel |
| Service Types |
OTU2/2e/4 |
| Optical Interface |
QSFP28: LR4/ER4 (1310nm), SR4 (850nm), CWDM4 |
| Optical Interface |
SFP+: LR (1310nm), SR (850nm), ER (1550nm), ZR (1550nm), C/DWDM |
| Optical Interface |
SFP28: LR (1310nm), SR (850nm) |
| NON-DWDM UPLINK CHARACTERISTICS |
|
| Optical Interface |
Single QSFP-DD FR4/LR4 uplink |
| AMPLIFIER |
|
| Applications |
Booster, pre-amp |
| Output Power |
Booster: up to 20dBm |
| Output Power |
Pre-amp: up to 5dBm |
| Input Power |
Booster: -24dBm to +10dBm |
| Input Power |
Pre-amp: -36dBm to -10dBm |
| Gain |
Booster: 5dB to 22dB |
| Gain |
Pre-amp: 13dB to 22dB |
| Operating Modes |
Automatic gain control (AGC) |
| Operating Modes |
Automatic power control (APC) |
| NETWORK MANAGEMENT |
|
| Management Ports |
2xRJ-45 LAN port 100/1000MBase-T |
| Management Ports |
2xSFP MNG ports 100/1000MBase-X |
| Management Ports |
RJ-45 serial port |
| Management Ports |
RJ-45 external alarm port |
| Management Ports |
OTN in-band GCC channel |
| Management Protocols |
HTTP/HTTPS, CLI over RS-232 or CLI over Telnet/SSH, SNMPv2/3, Syslog,
RADIUS, TACACS+, SNTP, TFTP & SFTP, REST, NETCONF
|
| NMS |
PacketLight LightWatch™ NMS, or third party NMS over SNMP |
| OAM |
Facility loopback (client and line interfaces), client terminal loopback, PRBS,
event log, alarms
|
| Performance Monitoring |
Optical PM for all optical ports |
| Performance Monitoring |
OTN PM for uplink and OTU2/2e/4 services |
| Performance Monitoring |
L1 PM for 10/25/100GbE and 16G/32G FC |
| Performance Monitoring |
L2 PM for 10/25/100GbE |
| Visual Indicators |
LED status indicators for client and line ports, Management and LAN ports,
amplifier/s, system Critical/Major/Minor and Power Supply
|
| Software Upgrade |
Hitless traffic – dual image |
| POWER SUPPLY |
|
| AC/DC |
100 to 240 VAC or -44 to -60 VDC, 50/60 Hz, 240W max |
| PSU Redundancy |
Single/dual feeding, hot swappable |
| Cooling Unit |
Hot swappable fan unit |
| ENVIRONMENTAL |
|
| Operating Temperature |
0ºC to 45ºC (32ºF to 113ºF) |
| Humidity |
5% to 85% RH |
| Storage |
85ºC |
| Air Flow |
Front to back |
| PHYSICAL DIMENSIONS |
|
| Size |
1.77” (H) x 17.32” (W) x 15.75” (D) |
| Size |
45mm (H) x 440mm (W) x 400mm (D) |
| Weight |
14kg / 30.9lb (max) |
| Mounting |
19”, ETSI and 23” |
