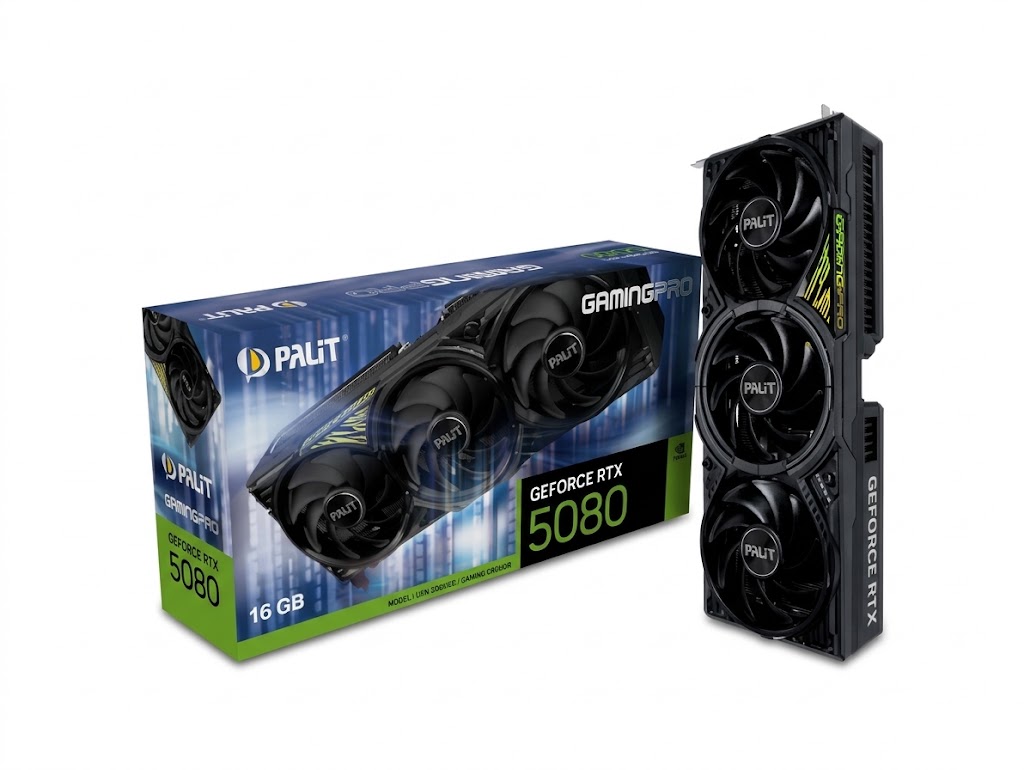

GamingPro: Pure Performance with Style
The Palit GamingPro Series merges sleek, industrial design with robust performance.
Its ARGB accents and advanced cooling solutions—featuring TurboFan 4.0, Air Deflector, and Composite Heat Pipes— ensure optimal thermal efficiency. Features like dual BIOS, 0dB technology, and a die-casting frame enhance its performance flexibility and board reliability. With Palit Maker support, users can easily customize the cooler cover via 3D printing.
Balancing functionality and style, it’s an ideal choice for gamers, creators, and AI professionals.
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.
TurboFan 4.0
Inspired by jet engines and aircraft wings, TurboFan 4.0 optimizes airflow dynamics for outstanding cooling efficiency.
With winglets that stabilize airflow and grooves on the blade backs to reduce drag and noise, TurboFan 4.0 channels air smoothly toward the heat sink. This design achieves a total of 33% boost in noise and thermal optimization.
Air Deflector
The 30° fin angle guides the airflow precisely across the surface, maximizing contact with the fins for a total of 16% noise and airflow optimization.This enhancement allows for smoother, more effective heat dissipation.
Key Features:
- NVIDIA GeForce RTX 5080 (Blackwell architecture, GB203)
- 10,752 CUDA cores
- Base clock: 2295 MHz / Boost clock: 2625 MHz (factory OC)
- 16 GB GDDR7 memory
- 256-bit memory bus
- 30 Gbps memory speed
- 960 GB/s memory bandwidth
- 4th Generation Ray Tracing Cores
- 5th Generation Tensor Cores
- Triple-fan TurboFan 4.0 cooling (winglets + back-groove design)
- Composite Heat Pipes + High Performance Vapor Chamber
Specifcations:
| Memory Amount |
16 GB |
| Memory Interface |
256 bits |
| DRAM Type |
GDDR7 |
| Graphics Clock |
2295 MHz |
| Boost Clock |
2617 MHz |
| Memory Clock |
30 Gbps |
| CUDA Cores |
10752 |
| Memory Bandwidth |
960 GB/s |
| Microsoft DirectX |
DirectX 12 Ultimate |
| OpenGL |
4.6 |
| Bus Support |
PCI-E 5.0 |
| HDMI |
HDMI 2.1b |
| DisplayPort |
DP 2.1b × 3 |
| Maximum Digital Resolution |
4K at 480 Hz or 8K at 120 Hz with DSC |
| Height |
3-slot |
| Board Size |
331.9 × 127.1 × 60 mm |
| Graphics Card Power |
360 W |
| Recommended System Power |
850 W |
| Supplementary Power Connectors |
16-pin × 1 |
| Accessory |
Power Cable |
| Multi-Monitor Support |
4 |
| NVIDIA Architecture |
Blackwell |
| Ray Tracing Cores |
4th Generation |
| Tensor Cores |
5th Generation |
| NVIDIA DLSS |
DLSS 4 |
| NVIDIA Reflex |
Reflex 2 |
| NVIDIA Encoder (NVENC) |
2 × 9th Generation |
| NVIDIA Decoder (NVDEC) |
2 × 6th Generation |
| CUDA Capability |
12.8 |
| Vulkan |
1.4 |
| Dual BIOS |
BIOS 1: Performance / BIOS 2: Silent |
| Cooling / Design Features |
TurboFan Blade 4.0, 2-Ball Bearing, Air Deflector, Composite Heat Pipe,
High Performance Vapor Chamber, ARGB SYNC EVO, 0-dB TECH
|
| Other Features |
NVIDIA Broadcast, Resizable BAR, NVIDIA App, Ansel, FreeStyle, ShadowPlay, Highlights,
G-SYNC, Game Ready & Studio Drivers, Omniverse, RTX Remix, GPU Boost, AV1
Encode/Decode, VR Ready, Digital PWM, DrMOS, Superior Rigidity
|
