Dispatch Time: Next Working Day
Product Code: CCEL-034
MPN #: AW-HE145WEJ

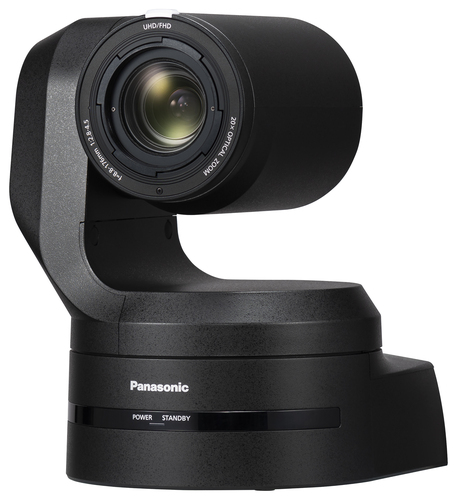

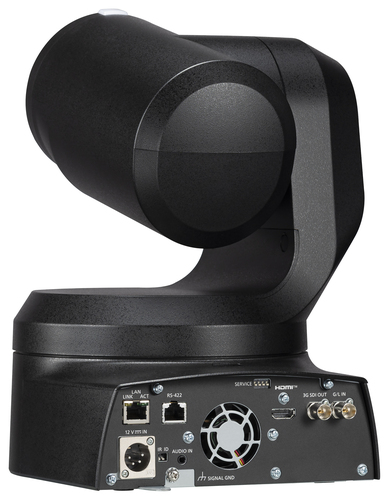

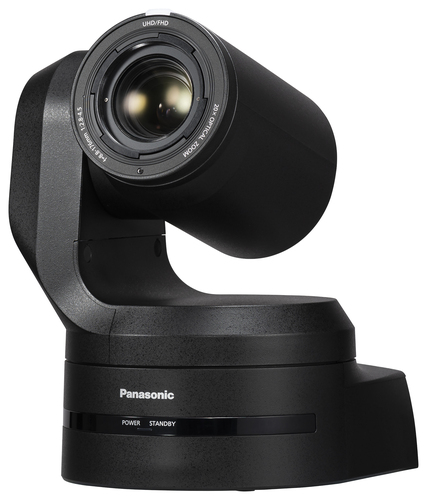

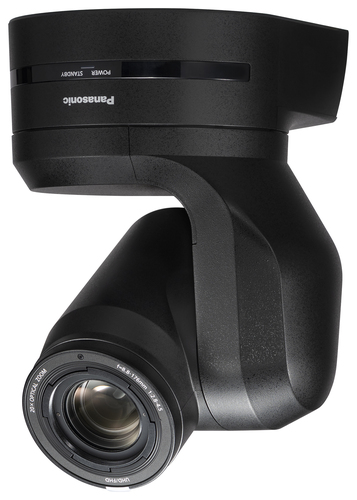

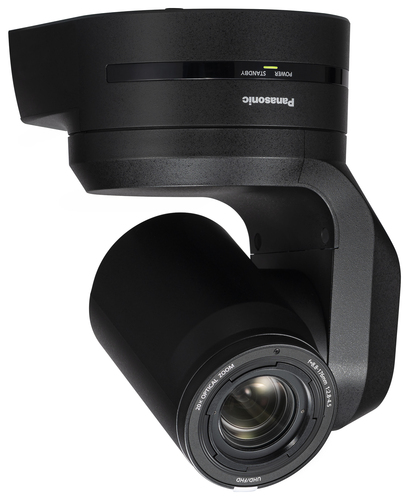

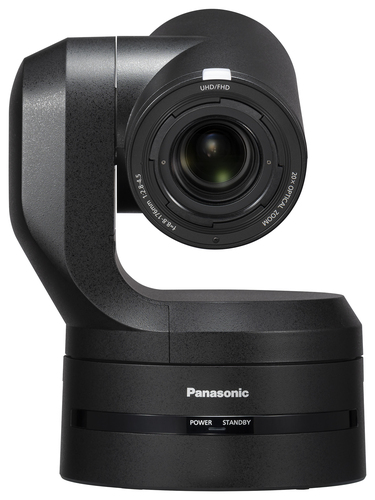

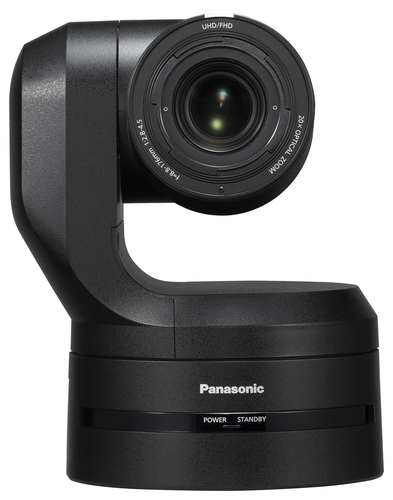

Imagine missing a critical moment because your camera cant see in low light or capture detail from far away. The Panasonic AW-HE145 IP Security Camera Indoor Ceiling Wall Bullet Black Wired is built to stop that. It is a wired indoor PTZ camera that records in full-HD, works in dark rooms, and lets you zoom in 20 without losing clarity. If you need reliable video for a church service, a small studio, or a live-stream event, this camera solves the problem of blurry, grainy footage.
Many indoor cameras struggle with night mode, limited zoom, and hard-to-use controls. That makes it difficult to capture clear images when lighting changes or when you need to follow a speaker across a stage. The AW-HE145 removes those barriers. Its high-sensitivity MOS sensor, 20 optical zoom, and smooth pan/tilt operation give you sharp video in any lighting condition. You can stream directly to YouTube or Facebook, or integrate the camera into an NDI workflow for professional productions.
This camera fits perfectly in a church sanctuary to record sermons, in a conference room for webinars, or in a small studio for live-streamed performances. Mount it on a ceiling or wall and use the PTZ controller to follow speakers, presenters, or performers. It also works well for security monitoring in office lobbies where you need both clear daytime images and reliable night vision.
| Performance | |
| Day/night mode | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
| Product colour | Black |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/24, 1/25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 s |
| Camera shutter type | Electronic |
| White balance | ATW, Auto, Manual |
| Pan speed | 60 °/sec |
| Pan range | -175 - 175° |
| Tilt speed | 60 °/sec |
| Tilt angle range | -30 - 210° |
| Lens viewing angle, diagonal | 82.8° |
| Lens viewing angle, vertical | 46.7° |
| Lens viewing angle, horizontal | 75.1° |
| Minimum illumination | 2 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 2.86 mm (1 / 2.86") |
| Number of sensors | 1 |
| Sensor type | MOS |
| Lens system | |
| Closest focusing distance | 0.4 m |
| Maximum aperture number | 4.5 |
| Minimum aperture number | 2.8 |
| Auto focus | Yes |
| Focus | Motorized/Manual |
| Focal length range | 8.8 - 176 mm |
| Digital zoom | 10x |
| Optical zoom | 20x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
| LED type | IR |
| Night vision | Yes |
| Video | |
| Video streaming | Yes |
| Supported video modes | 720p, 1080i, 1080p |
| Network | |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Built-in HDD | No |

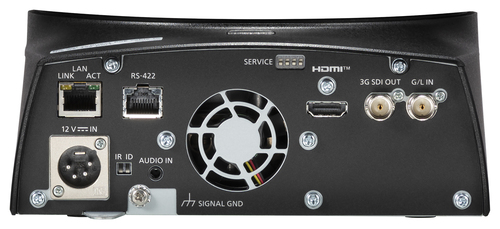

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| BNC output ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| DC output voltage | 12 |
| Power source type | DC, PoE |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 4.1 kg |
| Height | 267 mm |
| Depth | 219 mm |
| Width | 213 mm |
| Supplier features | |
| Manufacturer | Panasonic |
| Packaging content | |
| Number of cameras | 1 |
