Many businesses still struggle with blurry video, laggy streams, and cameras that cannot cover a whole room. When a meeting looks unprofessional, participants lose focus and decisions slow down. You need a camera that gives crystal-clear 4K picture, smooth motion, and reliable network transmission. The Panasonic AW-UE100KEJ 4K PTZ Video Conference Camera MOS 24x Zoom 81.8 Black delivers exactly that, turning any space into a high-quality video hub.

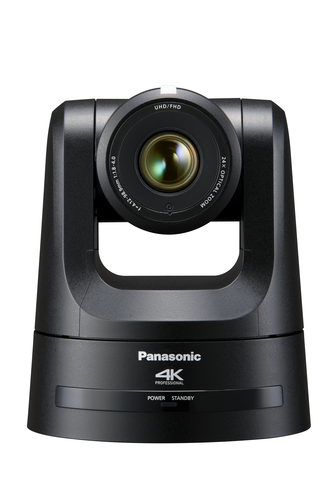

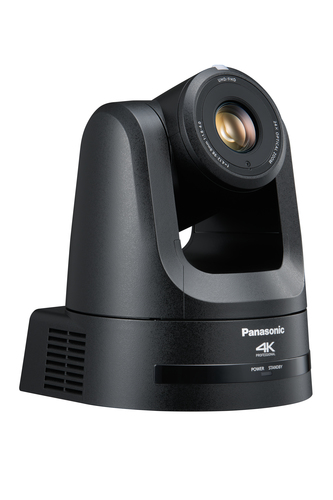

Panasonic AW-UE100KEJ 4K PTZ Video Conference Camera MOS 24x Zoom 81.8 Black with Panasonic
Imagine a camera that captures every detail in 4K, moves silently, and streams over a single LAN cable. This is a PTZ camera built for video conferences, live events, and studio shoots. If you have struggled with low-resolution feeds or noisy pan-tilt motors, this Panasonic model solves the problem with 24 optical zoom, a wide 81.8 field of view, and support for NDI, NDI|HX, and SRT protocols.
Usages
The camera works well in boardrooms where you need to show all participants and presentations clearly. It fits classrooms that stream lessons to remote students. Event organizers can mount it on ceilings to capture stage action for live streaming. Production studios use it for multi-camera shoots, and developers can link it to AR/VR systems via FreeD output.
Benefits
- Crystal-clear 4K video makes every detail easy to see.
- Low-latency NDI and SRT keep conversations smooth.
- 24 optical zoom lets you focus on distant speakers without losing quality.
- Quiet pan-tilt motion stays out of the way during meetings.
- Single-cable PoE power simplifies installation.
Key Features
- First 4K 60p/50p PTZ camera with NDI and SRT support.
- High-bandwidth NDI up to 250 Mbps for full-resolution streams.
- Low-bandwidth NDI|HX for efficient transmission.
- 12G-SDI, 3G-SDI, HDMI, and IP outputs for flexible integration.
- 74.1 horizontal field of view and 81.8 diagonal view.
- Direct Drive pan/tilt mechanism for fast, silent movement.
- Optical Image Stabilization plus Electronic Image Stabilization.
- FreeD output for AR/VR tracking and synchronization.
- Power over Ethernet (57 V) and optional DC power.
- RS-422 control port for remote operation.
- Supports H.264, H.265, and MJPG codecs.
- Compact size (204.6 mm 169.2 mm 170.6 mm) and 2.2 kg weight.
Specifications
| Camera |
| Vertical field of view |
46° |
| Horizontal field of view |
74.1° |
| Field of view (FOV) angle |
81.8° |
| Focal length range |
4.12 - 98.9 mm |
| Optical zoom |
24x |
| Zoom capability |
Yes |
| Optical sensor size |
25.4 / 2.5 mm (1 / 2.5") |
| Sensor type |
MOS |
| Video |
| Video formats supported |
H.264, H.265, MJPG |
| Supported video modes |
1080p, 2160p |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Design |
| Pan range |
-175 - 175° |
| Tilt angle range |
-30 - 210° |
| Mounting type |
Table/Ceiling |
| Product colour |
Black |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-422 ports |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Power |
| Power over Ethernet (PoE) voltage |
57 V |
| Input current |
3 A |
| DC input voltage |
12 V |
| AC input voltage |
100 - 240 V |
| Power source type |
DC, PoE |
| Network |
| Streaming capability |
Yes |
| Weight & dimensions |
| Weight |
2.2 kg |
| Height |
204.6 mm |
| Depth |
170.6 mm |
| Width |
169.2 mm |
