Product Code: CCEL-036
MPN #: AW-UE20KE

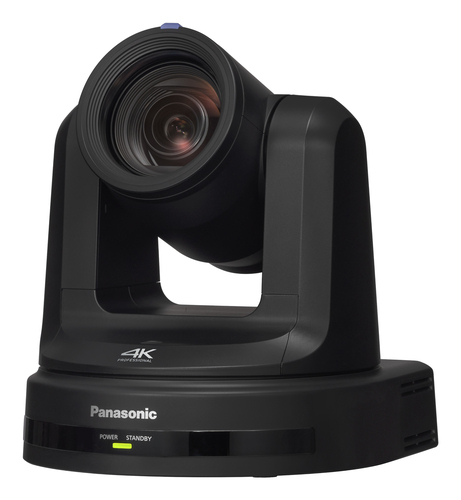

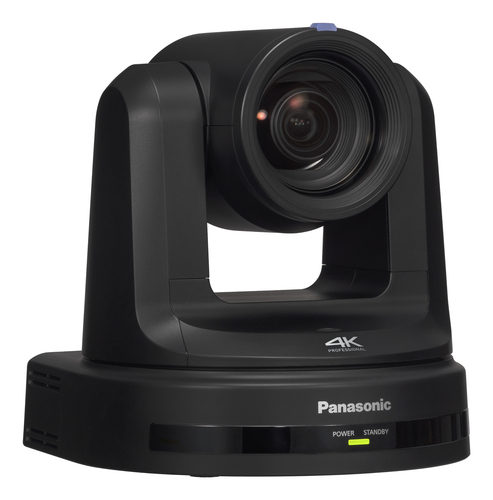

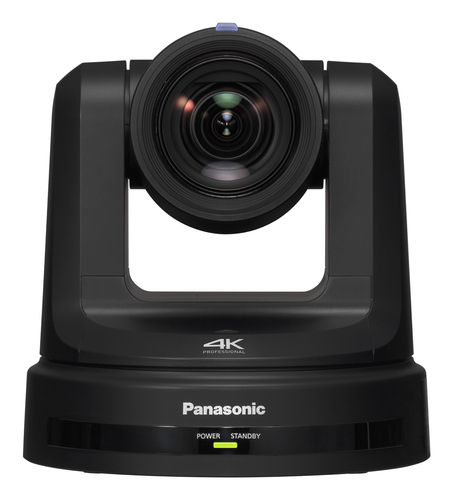

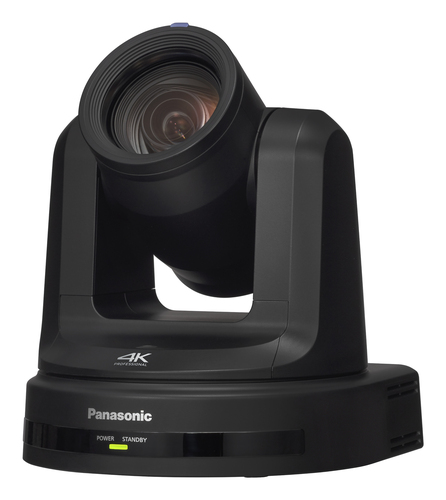

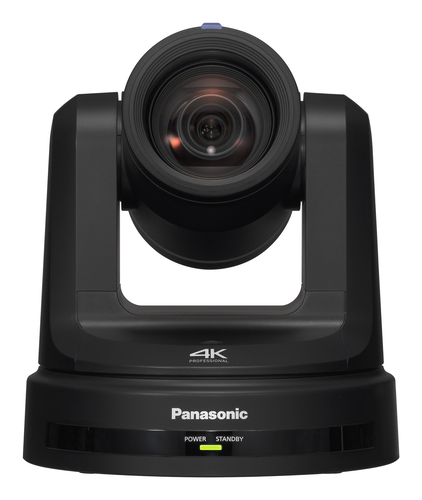

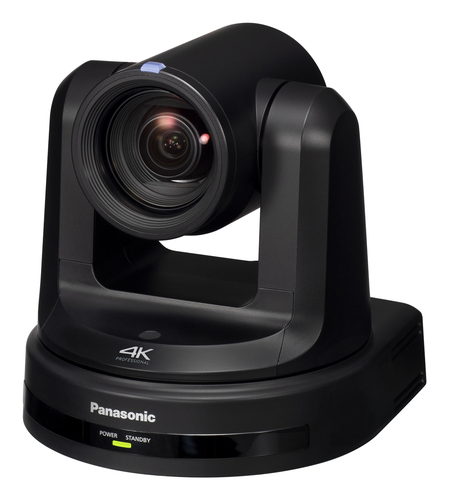

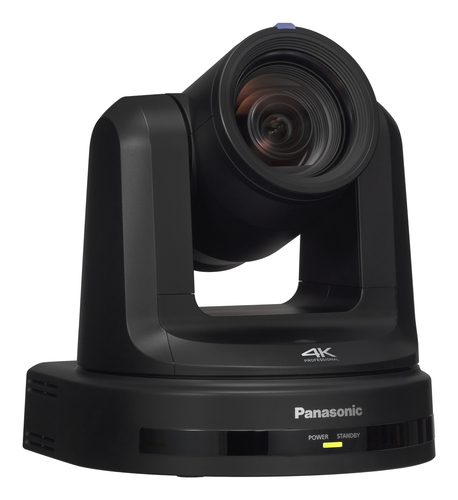

Imagine a meeting where every face is crystal clear, every slide looks sharp, and you never have to worry about a blurry video feed. The Panasonic AW-UE20 4K PTZ Video Conference Camera 8.46MP 60fps 12x Zoom is built for that need. It captures ultra-high-definition video and moves smoothly to follow speakers. If you have struggled with low-quality webcams or complicated setups, this camera solves the problem with one easy, powerful device.
Many businesses and schools waste time fixing video quality, swapping cables, or dealing with lag. Poor video makes participants lose interest and can damage a brands reputation. This camera removes those headaches. It offers 4K resolution, 12 optical zoom, and a single-cable PoE+ connection, so you get power, control, and video in one line. The result is a reliable, professional look that keeps audiences engaged and saves you time.
The camera fits perfectly in conference rooms, lecture halls, and hybrid classrooms. Use it for board meetings where executives need a professional look. Stream live events such as product launches or webinars with a single device. It also works in corporate training rooms, allowing trainers to zoom in on demonstrations while staying seated. The compact design lets you mount it on ceilings, walls, or trusses, so you can place it wherever space is limited.
| Camera | |
| PTZ control | Yes |
| Gain control type | Auto |
| Number of camera presets | 100 |
| Auto focusing (AF) modes | Auto, Manual |
| Focus adjustment | Auto/Manual |
| Vertical field of view (tele) | 3° |
| Vertical field of view (wide) | 43° |
| Horizontal field of view (tele) | 6° |
| Horizontal field of view (wide) | 71° |
| Focal length range | 3.9 - 46.8 mm |
| Digital zoom | 4x |
| Optical zoom | 12x |
| Zoom capability | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | MOS |
| Camera type | Single camera |
| Megapixel (approx.) | 8.46 MP |
| Video | |
| Supported graphics resolutions | 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported video modes | 720p, 1080i, 1080p |
| HD type | 4K Ultra HD |
| Maximum frame rate | 60 fps |
| Maximum video resolution | 3840 x 2160 pixels |
| Design | |
| Pan preset speed | 200 °/sec |
| Pan speed (max) | 100 °/sec |
| Tilt preset speed | 200 °/sec |
| Tilt speed (max) | 100 °/sec |
| Web-based management | Yes |
| Tally light | Yes |
| Pan range | -170 - 170° |
| Tilt angle range | -30 - 90° |
| Image stabilizer | Yes |
| Mounting type | Table/Ceiling |
| Product colour | Black |

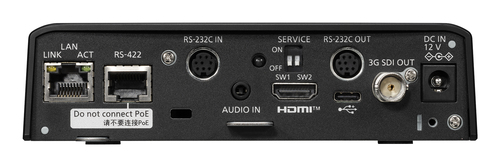

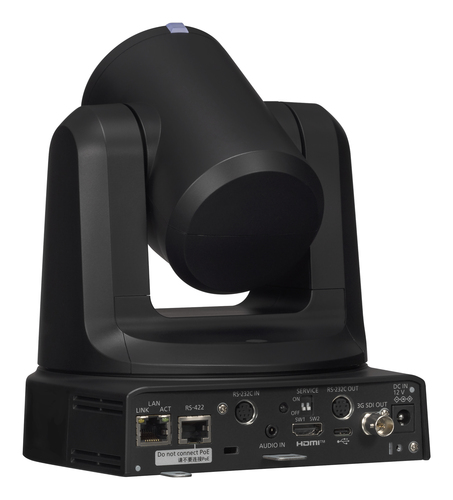

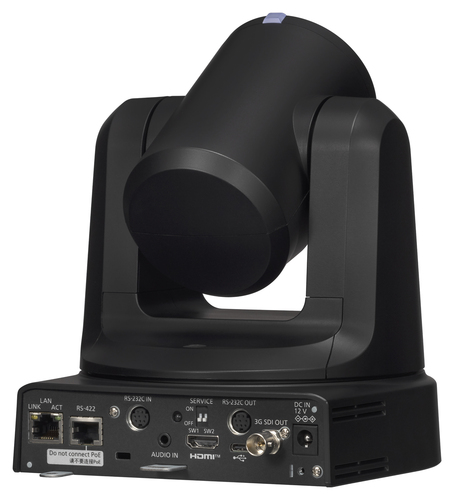

| Ports & interfaces | |
| RS-422 ports | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Power | |
| DC input voltage | 12 V |
| Power source type | DC, PoE |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Audio | |
| Noise reduction | Yes |
| Network | |
| Network streaming | Yes |
| Streaming capability | Yes |
| Networking standards | IEEE 802.3at |
| System requirements | |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 1.9 kg |
| Height | 176.2 mm |
| Depth | 176.1 mm |
| Width | 165.1 mm |
| Packaging data | |
| Package type | Box |
