| Model |

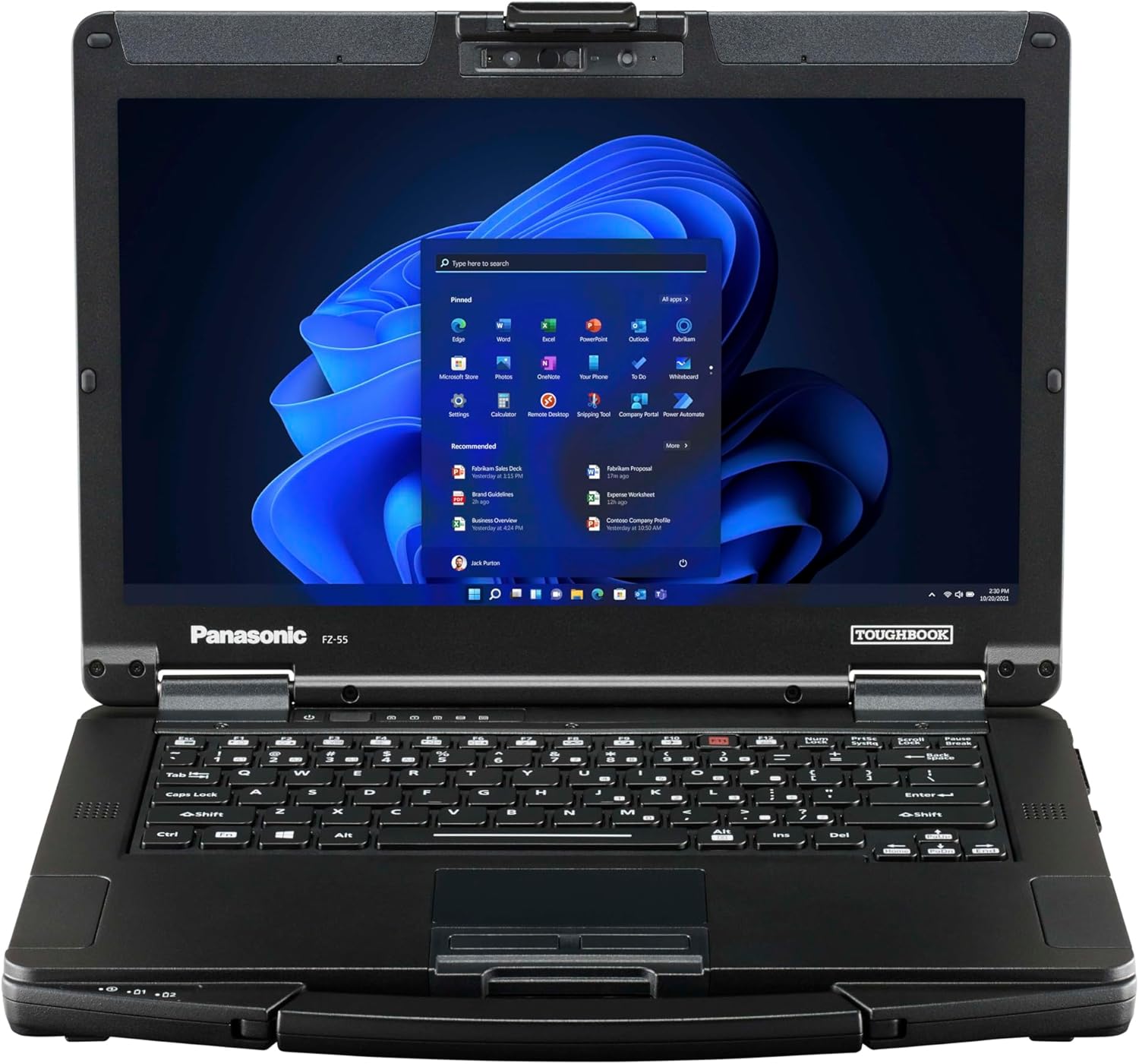

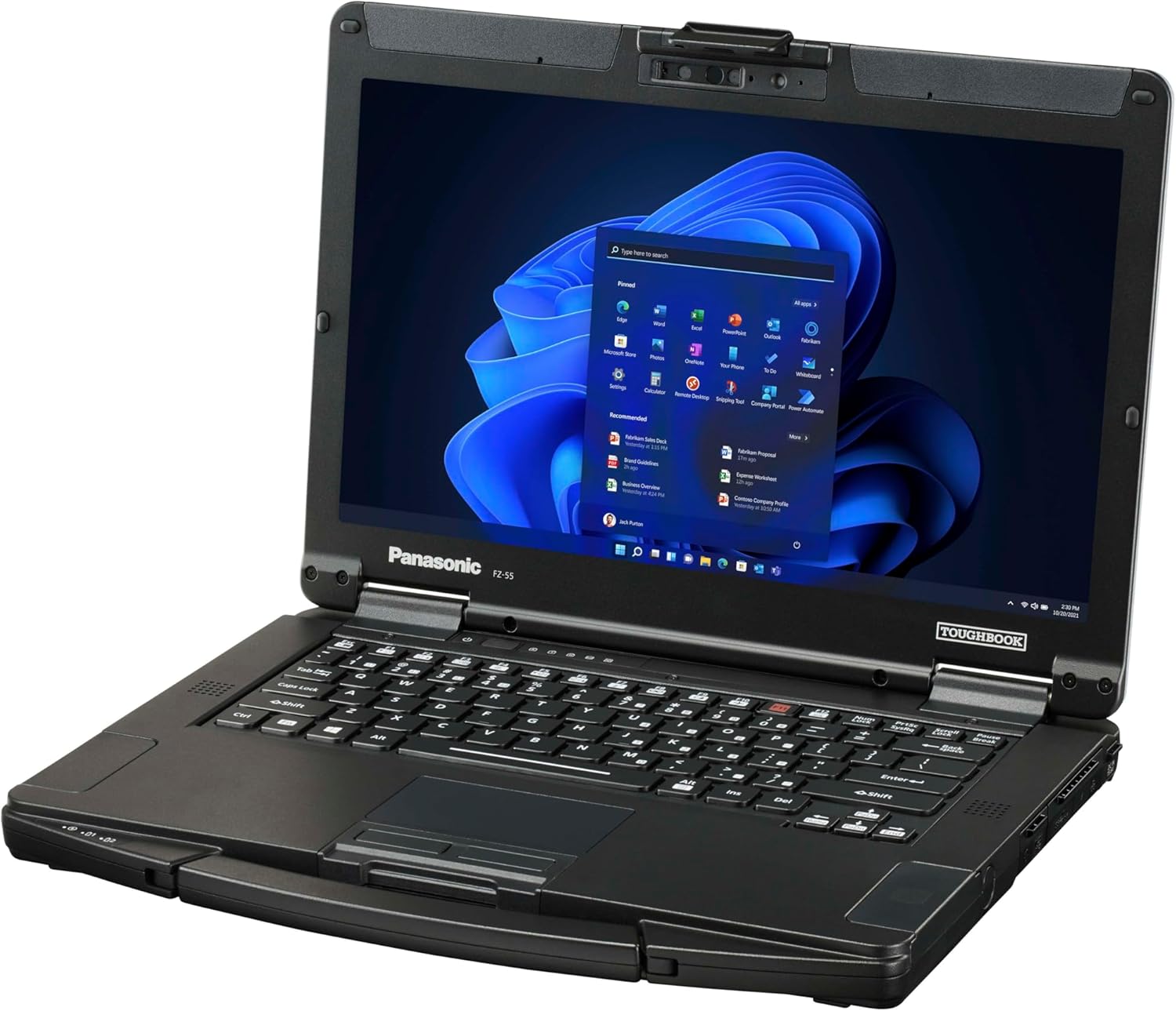

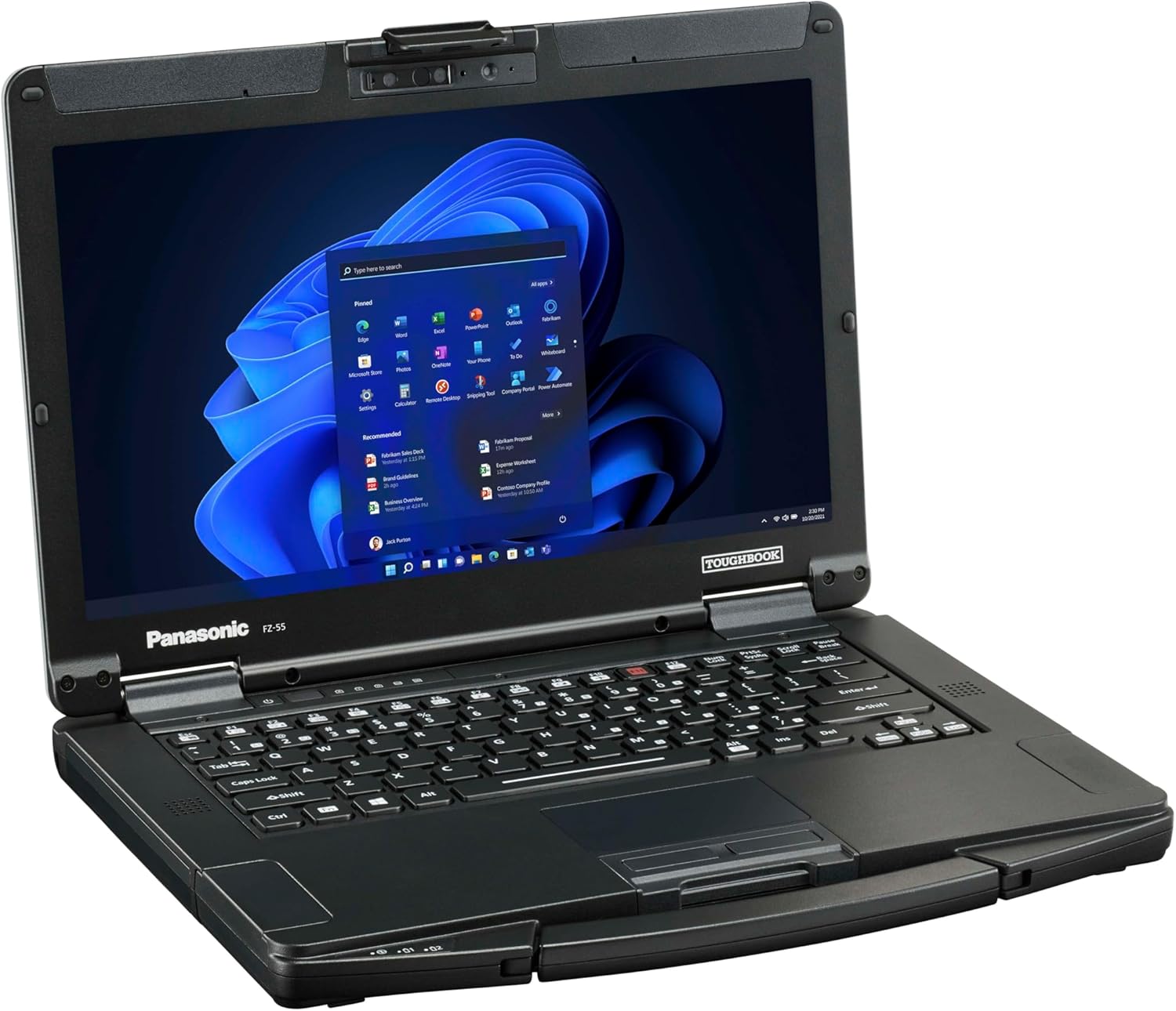

FZ-55 mk3 HD and Full-HD Touchscreen, 16GB RAM, 512GB SSD, Battery pack |
| Operating System |
Windows 11 Pro 64-bit |
| Mobile Computing Platform |
Intel® Core™ i5 1345U vPro™ Processor or Intel® Core™ i7 1370P vPro™ Processor |
| Graphic Chip |
Intel® UHD Graphics for 13th Gen Intel® Processors (Built-in CPU), support Intel® Iris® Xe Graphics when equipped with 2 DIMMs |
| RAM |
16GB DDR4 RAM (max. 64GB) |
| Storage |
512GB NVMe OPAL SSD (max. 2TB) |
| LCD |
HD: 14" Active Matrix (TFT) colour LCD 1366 x 768 pixels (HD) |
| LCD |
Full-HD Touchscreen: 14" Active Matrix (TFT) colour LCD 1920 x 1080 pixels (Full-HD), capacitive 10 finger Touchscreen, up to 1.000cd/m² brightness |
| Wireless |
Mobile Broadband: 4G or 5G with SIM/eSIM support (5G option available for Universal Bay) |
| Wireless |
Global Positioning*: u-blox NEO-M9N (supports GPS, GLONASS, Beidou, Galileo) |
| Wireless |
Wi-Fi: Intel® Wi-Fi6E AX211 |
| Wireless |
Bluetooth: 5.3 Class 1 |
| Interfaces |
USB 3.2: x2 |
| Interfaces |
Thunderbolt 4: x1 |
| Interfaces |
Micro SDXC Memory Card: x1 |
| Interfaces |
HDMI : x1 |
| Interfaces |
LAN:IEEE 802.3 10Base-T /IEEE 802.3u 100BASE-TX /IEEE 802.3ab 1000BASE-T (2nd GLAN optional) |
| Interfaces |
Dual Path Through Connector*:x1 |
| Left expansion area |
TOUGHBOOK Universal Bay**: 2nd SSD, Smart Card Reader, DVD Multi Drive, Blu Ray Drive |
| Right expansion area |
Front Expansion Slot**: 2nd Battery, Fingerprint Reader, HF-RFID Reader (Contactless Smart Card), Smart Card Reader |
| Rear expansion area |
VGA + True Serial + 4th USB 3.2, VGA + True Serial + 2nd native GLAN, VGA + True Serial + Rugged USB 2.0, 4th USB 3.2 + USB Type c |
| Front Camera |
HD Front camera*: 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Front Camera |
Full-HD Touchscreen: 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Sound |
MaxxAudio |
| Sound |
Headset: x1 |
| Sound |
Enhanced Voice Recognition*: 2 Microphones (included in Front Camera) |
| Dimensions: Main Unit (WxHxD) |
345mm x 272mm x 32.8mm (without protruding parts) |
| Weight |
Main Unit HD: Approx. 2.08 kg |
| Weight |
Full-HD Touchscreen: Approx. 2.22 kg |
| Battery Life |
Lithium-Ion 10.8V, 6500mAh (typ.), 6300mAh (min.) |
| Power Supply |
AC Adaptor Input: 100V - 240V AC, 50Hz/ 60Hz |
| Power Supply |
Output: 15.6V DC, 7.05A |
| Power Supply |
DC In: x1 |
| Power Supply |
Hot Swap Standby function |
| Power Supply |
ACPI BIOS |
| Power Supply |
Hot Swap*: With 2nd Battery |
| Drop resistance |
91cm |
| Dust resistance |
IP5x |
| Water resistance |
IPx3 |
| Operating temperature |
-29°C to +60°C |
| Included in the box |
Power Supply, Power Cord, User Manual + capacitive pen (for Full-HD Touchscreen only) |
| Integrated options |
Port Replicator*: x1 |
| Footnote Description |
*: Optional |
| Footnote Description |
**: Exclusive Option, pre-configured or accessory |
| Footnote Description |
***: Tested by an independent third party lab following MIL-STD-810H and IEC 60529 |
