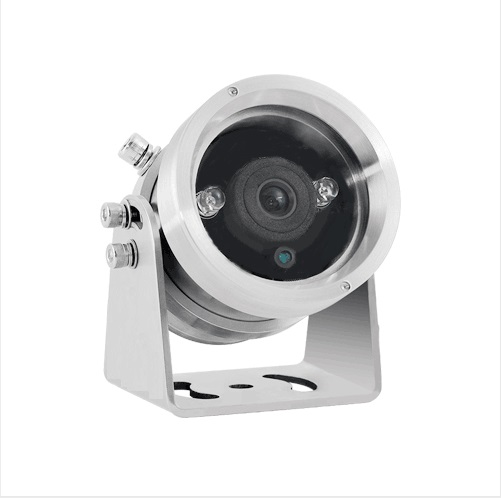

Paragon BHOS2F4II66M, 1920×1080 Pixels 2MP SONY CMOS Marine Camera
This compact camera provides a fixed angle view in 2MP HD video. It is housed in a heavy-duty, stainless steel, weatherproof enclosure suitable for hostile environments. It is ready for mounting, requiring only power and an IP connection. A wall mount arm is provided. Other mounting options are available.
It can be used in Marine and Offshore environments. For example, passenger ships, bridges, and engine rooms. It offers a choice of lenses/viewing angles. Its small volume and light weight make it particularly suitable for applications where a small form factor is required
Product Features
- Marine 316L grade stainless steel
- Fixed lens – 4/6mm options
- Support ONVIF, HIKVISION, DAHUA
- Suited to strong corrosive environments. Anti-corrosion, waterproof.
- Uses SONY1/3″CMOS Sensor
- High quality IR lamp , long service life , low power consumption. Distance up to 15 meters
- Windows glass surface process by nano technology . Good light transmittance.
- Anti-shock engineering technology
- 2MP resolution
- Suited to harsh environmental conditions including petrochemicals, mining, military, medicine, oil & gas, marine, drilling platforms, food processing and storage, offshore etc.
Specifications:
| Av |
| Resolution |
2MP |
| Pixels |
1920×1080 |
| Frame Rate |
1 to 25 fps – adjustable |
| Sensitivity |
Color [email protected],BW0.01 [email protected]; |
| Optical Lens |
4mm、6mm options |
| Ir Illumination Range |
15m @ 850nm |
| Wide Dynamic Range |
n/a |
| Image Features |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Video Compression |
H.264/H.265/MJPEG |
| Bitrate |
32 Kbps~8Mbps |
| Audio Compression |
Base Line Profile / Main Profile |
| Camera Additional Info |
| Movement |
FIXED |
| Support Protocols |
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Sensor |
SONY 1/2.7″CMOS |
| Alarms |
Optional |
| Interface Protocols |
ONVIF,PSIA,CGI,ISAPI,GB28181 |
| Power |
| Ethernet |
Ethernet RJ-45(10/100/1000Base-T) |
| Power Supply |
DC12V/POE(Optional) |
| Certifications |
| Ingress Protection |
IP66 |
| Physical |
| Material |
316L stainless steel |
| Operating Temperature |
-40℃～60℃ |
| Dimensions External |
83mm x 117mm x 110mm |
| Relative Humidity |
≤ 95%（+25°C） |
| Atmospheric Pressure |
80kpa～106 kpa |
| Cable Entry |
1pcs M20*1.5 output(original G1/2) |
| Mounting Options |
Wall hanging, fixed bracket , pedestal base |
