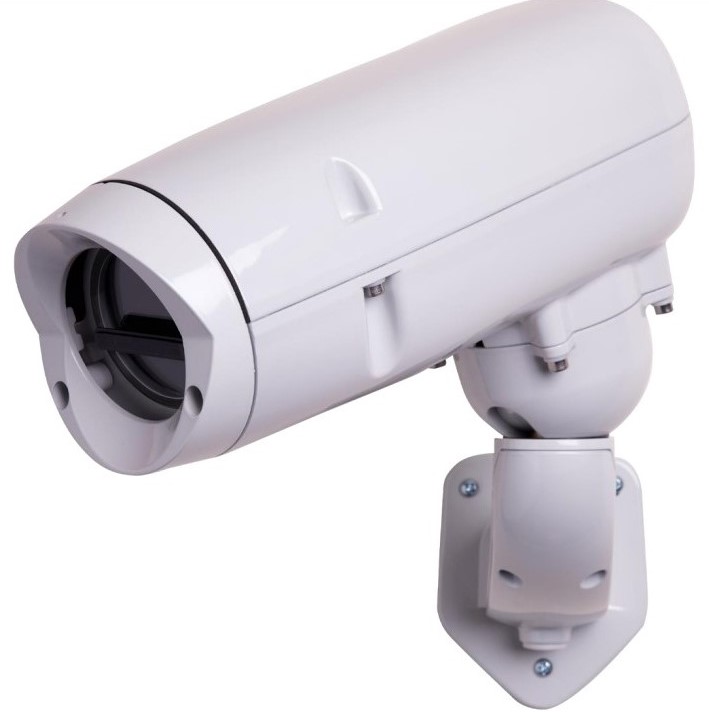

Paragon BSOA000W067, IP67 PoE+ Marine Camera Housing With Wiper

Paragon BSOA000W067, IP67 PoE+ Marine Camera Housing With Wiper

Paragon BSOA000W067, IP67 PoE+ Marine Camera Housing With Wiper is a rugged marine camera housing designed to protect compatible camera equipment in demanding marine and outdoor environments. It features a toughened glass window, die cast aluminium construction, and IP67 ingress protection to provide a durable enclosure for camera installations where protection from environmental exposure is required.

The housing supports PoE+, 12VDC or 24VAC power supply options. Power consumption is specified as 10.8W at 12VDC, 6.6W at 24VAC, and 13W for PoE. This flexible power support allows the housing to be integrated into different camera installation configurations while maintaining a practical power requirement.

Impact protection is rated IK10, providing protection against mechanical impacts. The housing is made from die cast aluminium and comes in RAL 7035 light grey as the standard colour. The toughened glass window provides a durable viewing surface for compatible camera equipment.

The Paragon BSOA000W067 supports an operating temperature of 20 to +55 deg C and has an internal space of L 228mm x W 79mm x H103mm. Cable entry is provided through a base with 20mm conduit access, including 1x 20mm Split Gland and 1x 20mm standard gland. These features support organized installation of camera and power connections.

With wall hanging, fixed bracket, and pedestal base mounting options, the housing can be installed according to the requirements of the camera location. Its marine-focused construction, IP67 ingress protection, IK10 impact protection, and multiple power options make it suitable for marine camera installations, monitoring systems, vessel surveillance, and other outdoor camera applications.

Key features

• Tough, vandal-resistant housing, IK10 & IP67
• Ruggedised Marine grade
• PoE+, 24VAC or 12VDC
• Wide range of camera & lens options
• Camera/lens options can be factory fitted if required
• Custom colours available
• Marine powdercoat paint gives a robust, UV light-stable finish
• Fully cable-managed solution, keeps cables hidden and secure
• No need for additional junction box
• Wall-bracket, pendant or pedestal mount options
• Extendable sun/rain visor option
• Manufactured in the United Kingdom
• Long life silicone wiper
• Washer option with remote control (WPN400)

SPECIFICATION
