Product Code: CCEL-309
MPN #: SRXP4-2V10-EBT-IR

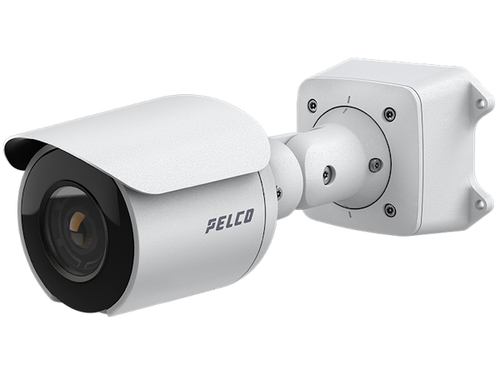

Keeping a property safe is hard when you cannot see what happens after hours. Gaps in coverage let thieves or vandals act unnoticed, and you lose peace of mind. The Pelco SRXP4-2V10-EBT-IR Wired IP Security Camera Outdoor Wall Mount 126 dB fills that gap. It gives clear, reliable video day and night, so you can watch, record, and act before a problem grows.
This camera is a rugged, wall-mounted bullet that works in rain, snow or heat. It is built for businesses, schools, parking lots and any outdoor area that needs constant watch. If you have struggled with blurry images, missed motion alerts, or cameras that fail in harsh weather, this unit solves those issues. Pelcos advanced sensor and 126 dB dynamic range give you sharp detail, while built-in analytics warn you of real threats the moment they appear.
Install the camera on a warehouse wall to monitor loading docks and catch any unauthorized entry. Mount it at a school entrance to record every vehicle and detect loitering. Use it on a retail parking lot to capture license plates and alert staff when a car stays too long. It also works for remote sites such as construction yards, where you need night vision and weatherproof protection.
| Performance | |
| Certification | UL/CSA/EN/IEC 62368-1, IEC 62471, FCC Part 15 Subpart B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4 |
| Dynamic range | 126 dB |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Protection features | Weatherproof |
| Housing material | Aluminum |
| Mounting type | Wall |
| Form factor | Bullet |
| Camera | |
| Number of Privacy masking areas | 64 |
| Camera shutter speed | 1/7.5 - 1/30000 s |
| Camera shutter type | Electronic |
| White balance | Auto, Manual |
| Pan range | -175 - 175° |
| Tilt angle range | -90 - 90° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, horizontal | 101° |
| Angle of rotation | 350° |
| Minimum illumination | 0.005 lx |
| Image sensor | |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Maximum aperture number | 1.6 |
| Auto focus | Yes |
| Focus | Motorized |
| Focal length range | 3.4 - 10.5 mm |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 50 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Frame rate | 60 fps |
| Supported graphics resolutions | 512 x 288, 512 x 384, 640 x 360, 640 x 480 (VGA), 768 x 432, 800 x 600 (SVGA), 960 x 720, 1280 x 720 (HD 720), 1280 x 960, 1440 x 1080, 1920 x 1080 (HD 1080) |
| Video formats supported | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Sample rate | 8 kHz |
| Audio formats supported | G.711, PCM |
| Network | |
| Streaming method | Multicast |
| Supported network protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, HSTS, RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP, SRTP, SNMP v2c, SNMP v3 |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| RAM capacity | 1000 MB |
| Flash memory | 512 MB |
| Maximum memory card size | 1.5 TB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Missing object, Moving object, Region entrance detection, Region exiting detection |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Password protection | Yes |
| Power | |
| Battery technology | Lithium |
| Power consumption (Power over Ethernet (PoE)) | 13 W |
| Power source type | Battery, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Weight | 2.89 lbs (1.31 kg) |
| Height | 4.09" (104 mm) |
| Depth | 11.6" (294 mm) |
| Width | 4.96" (126 mm) |
| Supplier features | |
| Manufacturer | Pelco |
| Sustainability | |
| Compliance certificates | BIS, CE, KC, Norma Oficial Mexicana (NOM), RCM, RoHS, UKCA, UL, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 1920 x 1080 pixels |
