Small businesses and remote offices often lose money when their internet drops or slows down. A broken connection can stop sales, halt video calls, and make cloud apps unusable. The Peplink Balance 20X (CAT 6) Futureproof Gigabit Dual WAN Router solves that problem by giving you two internet paths, fast gigabit speeds, and automatic failover. It keeps your network running smoothly so you can work without interruption.

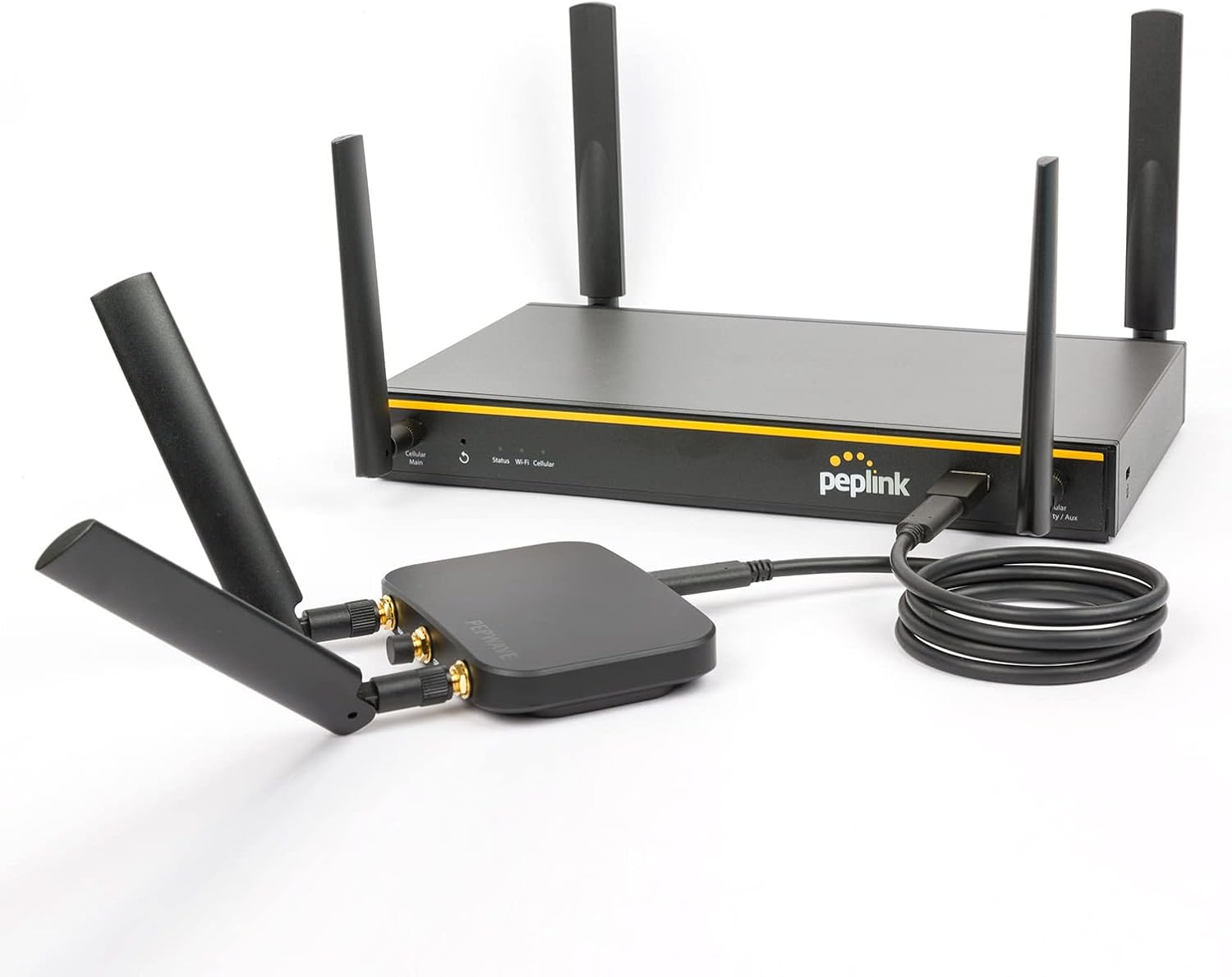

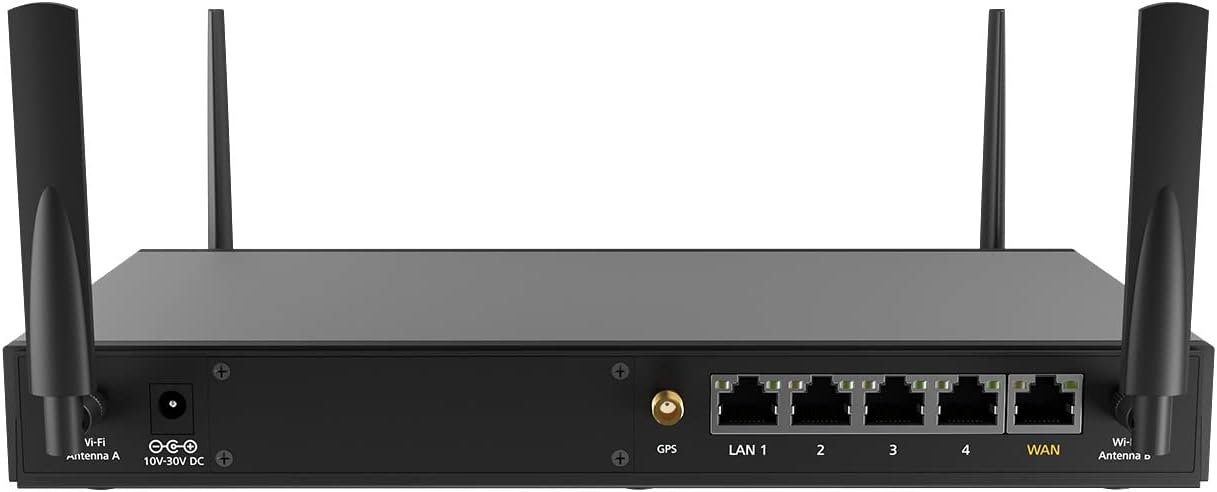

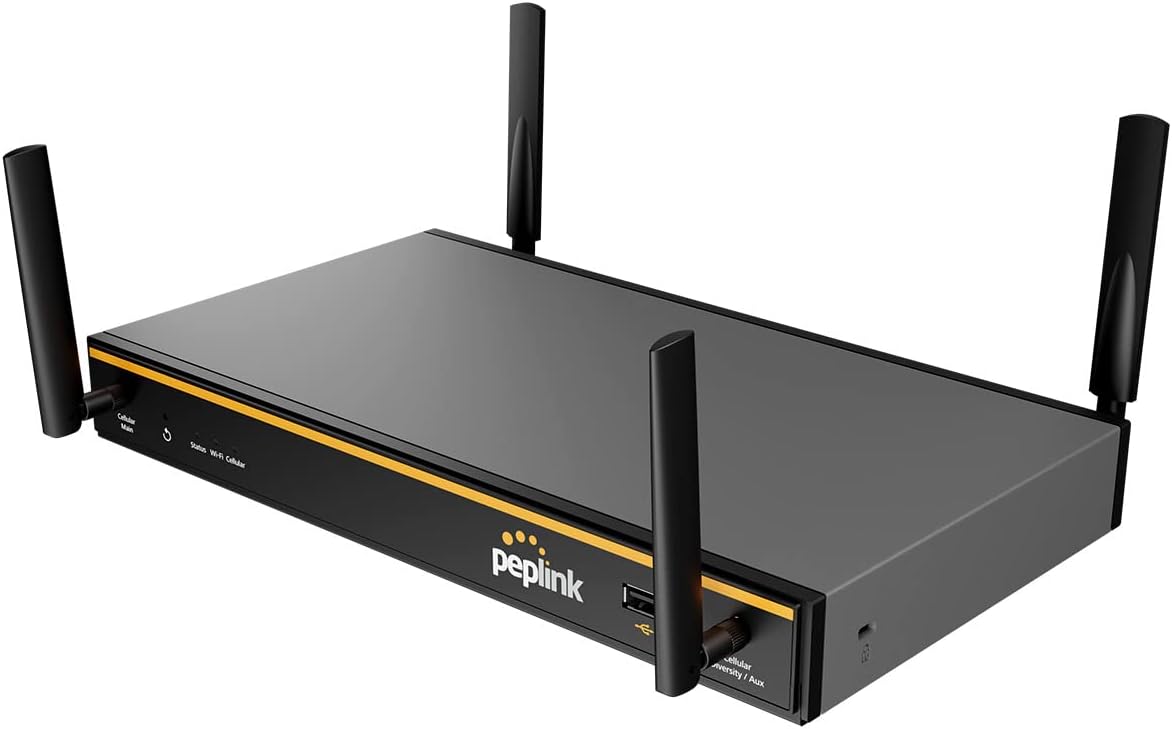

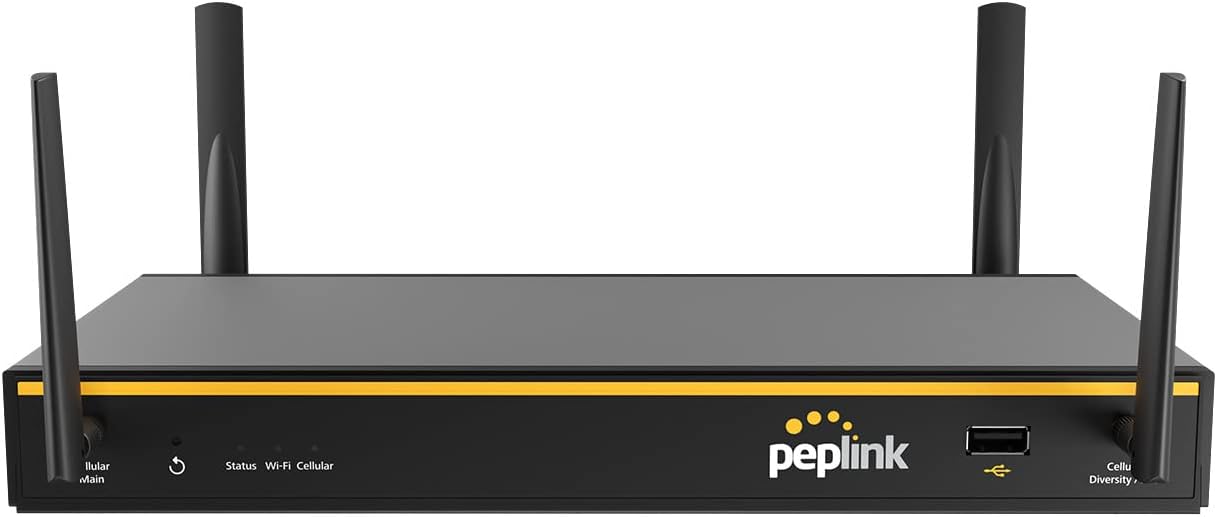

Peplink Balance 20X (CAT 6) Futureproof Gigabit Dual WAN Router with Peplink
Imagine a router that never lets you down, even when one ISP fails. The Balance 20X is a powerful Peplink router that combines two WAN links, LTE backup, and Wi-Fi in one compact box. It is built for businesses that need reliable, high-speed internet for cloud services, VoIP, and video streaming. If your current setup drops packets or slows during peak hours, this router gives you the stability and speed you need.
Key Features
- 1 Gigabit Ethernet WAN plus embedded LTE modem.
- 4 Gigabit Ethernet LAN ports for wired devices.
- Simultaneous dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 with 2x2 MU-MIMO.
- SpeedFusion hot failover, WAN smoothing, and bandwidth bonding.
- Supports up to 60 users with stable performance.
- CAT-6 LTE module delivers up to 300 Mbps download.
- Two SMA connectors for external cellular antennas.
- Power input 10-30 V DC, low nominal consumption of 6.83 W.
- Compact size 160 mm 262 mm 33 mm, easy to mount.
- Operating temperature from -10 C to 45 C, suitable for most environments.
Specifications
| WAN Interface |
1x GE
1x Embedded LTE Modem
1x USB Interface
1x Expansion Module (Optional) |
| LAN Interface |
4x GE |
| Wi-Fi Interface |
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 5 2x2 MU-MIMO
Wi-Fi WAN
and/or AP |
| SpeedFusion Features |
Hot Failover, WAN Smoothing,Bandwidth Bonding |
Number of
SpeedFusion VPN
Peers |
2/5 |
| Router Throughput |
1Gbps |
SpeedFusion VPN
Throughput |
|
| No Encryption |
100Mbps |
| 256-bit AES |
60Mbps |
| Supported Users: |
1-60 |
| Cellular Performance |
|
| CAT-6: |
300 Mbps / 50 Mbps |
| Antenna Connectors |
|
| Cellular Connectors: |
2x SMA Cellular Connectors |
| Wi-Fi Connectors: |
2x RP-SMA Wi-Fi Antenna Connectors |
| GPS Connector: |
1x SMA GPS Antenna Connector |
| Power |
|
| Input Power: |
DC Jack: 10V - 30V |
| Nominal Power Consumption: |
6.83 W (nominal, with FlexModule Mini LTEA) |
| Maximum Power Consumption: |
28 W (max.) |
| Mechanical |
|
| Dimensions (Inches): |
6.83 x 10.3 x 1.3 inches |
| Dimensions (mm): |
160 x 262 x 33 mm |
| Weight: |
1.74 pounds / 0.67 kg |
| Environmental |
|
| Temperature: |
14° – 113°F / -10° – 45°C |
| Humidity: |
15% – 95% (non-condensing) |
| Regulatory |
|
| Certifications: |
FCC, CE, RoHS |
