When a machine needs to know the exact distance to an object, a weak or noisy sensor can cause missed stops, product damage, or safety hazards. In fast production lines this leads to costly downtime and unhappy customers. The Pepperl + Fuchs Through Beam Distance Sensor Block Sensor 300 mm Detection Range gives you a reliable, precise measurement that works even in bright light, so you can keep your process running smoothly and safely.

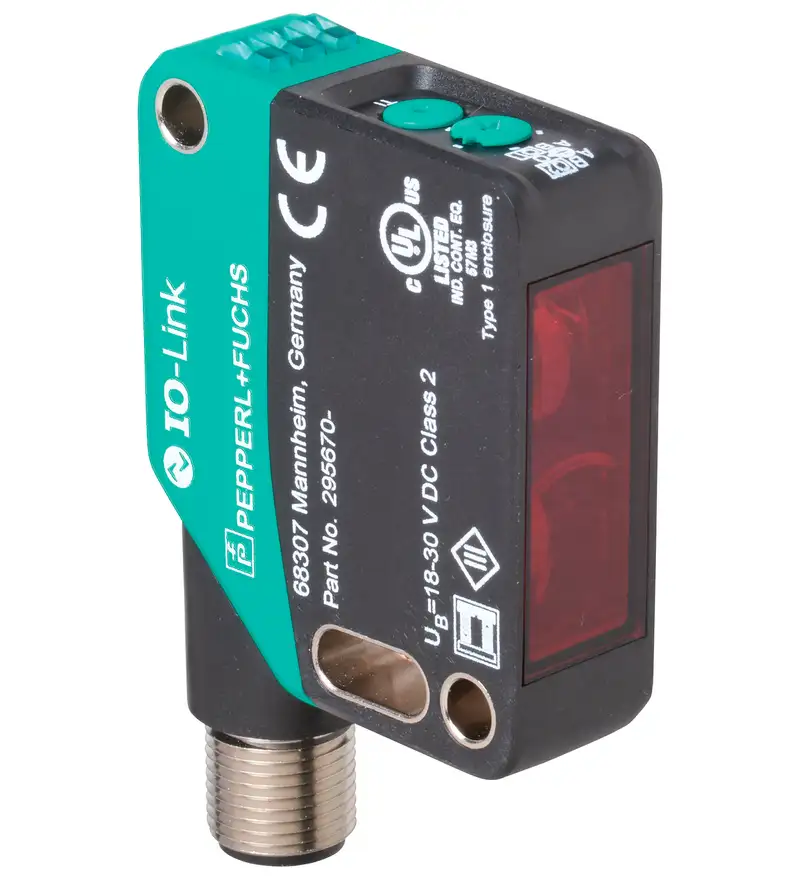

Pepperl + Fuchs Through Beam Distance Sensor Block Sensor 300 mm Detection Range with Pepperl
You need a sensor that can see a target from 100 to 300 mm with 0.1 mm resolution. This Pepperl product is a through-beam distance sensor that uses a modulated red LED and a robust IP67 housing. It solves the common problem of unreliable detection in dusty or brightly lit environments, giving you fast 2 ms response and stable output through IO-Link.
Benefits
Key Features
- Measuring range 100.....300 mm.
- Resolution 0.1 mm, repeat accuracy < 0.5 %.
- Response time 2 ms, minimum cycle time 3 ms.
- Ambient light immunity up to 45,000 Lux.
- IO-Link (revision 1.1) with 4-byte input data.
- Two push-pull outputs, short-circuit and over-voltage protected.
- Operating voltage 10.......30 V DC, no-load current < 25 mA.
- IP67 rating, housing made of polycarbonate, optical face PMMA.
Specifications
| Measuring Characteristics |
|
| Measuring Range |
100 … 300 mm |
| Reference Target |
Standard white, 100 × 100 mm |
| Resolution |
0.1 mm |
| Repeat Accuracy |
< 0.5 % |
| Linearity Error |
0.5 % |
| Temperature Drift |
0.05 %/K |
| Response Time |
2 ms |
| Warm-Up Time |
5 min |
| Opening Angle |
1.8° |
| Angle Deviation |
max. ±1.5° |
| Light Spot Diameter |
approx. 8 mm at 300 mm |
| Optical Data |
|
| Light Source |
LED |
| Light Type |
Modulated visible red light |
| LED Risk Group |
Exempt Group |
| Ambient Light Immunity |
45,000 Lux (EN 60947-5-2) |
| Functional Safety Data |
|
| MTTFd |
600 years |
| Mission Time (TM) |
20 years |
| Diagnostic Coverage (DC) |
0 % |
| Electrical Specifications |
|
| Operating Voltage (UB) |
10 … 30 V DC |
| Ripple |
max. 10 % |
| No-Load Current (I0) |
< 25 mA at 24 V DC |
| Protection Class |
III |
| Switching Voltage |
max. 30 V DC |
| Switching Current |
max. 100 mA (resistive load) |
| Voltage Drop (Ud) |
≤ 1.5 V DC |
| Usage Category |
DC-12 |
| Outputs & Interface |
|
| Interface Type |
IO-Link (via C/Q, Pin 4) |
| IO-Link Revision |
1.1 |
| Device Profile |
Identification & Diagnosis |
| Smart Sensor Type |
Type 0 / Type 3.3 |
| Device ID |
0x111904 (1120516) |
| Transfer Rate |
COM2 (38.4 kBit/s) |
| Minimum Cycle Time |
3 ms |
| Process Data Width |
Input: 4 bytes |
| SIO Mode Support |
Yes |
| Compatible Master Port |
Type A |
| Signal Output |

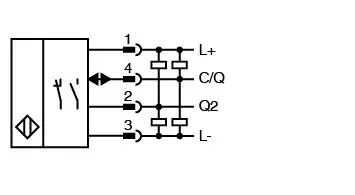

2 Push-Pull Outputs (4-in-1), Short-Circuit, Reverse Polarity & Overvoltage Protected |
| Switching Type (Default) |
C/Q Pin 4: NPN NO / PNP NC / IO-Link |
| |
Q2 Pin 2: NPN NO / PNP NC |
| Indicators & Controls |
|
| Operation Indicator |
Green LED: Power On / Short Circuit (4 Hz) / IO-Link Mode (1 Hz) |
| Function Indicator |
Yellow LED: Output Active / Inactive |
| Control Elements |
Teach-In Key |
| |
5-Step Rotary Switch (Operating Mode Selection) |
| Environmental Conditions |
|
| Ambient Temperature |
10 … 60 °C (50 … 140 °F) |
| Storage Temperature |
-40 … 70 °C (-40 … 158 °F) |
| Degree of Protection |
IP67 |
| Mechanical Specifications |
|
| Connection |
4-Pin M12 × 1 Connector, 90° Rotatable |
| Housing Material |
PC (Polycarbonate) |
| Optical Face |
PMMA |
| Mass |
approx. 37 g |

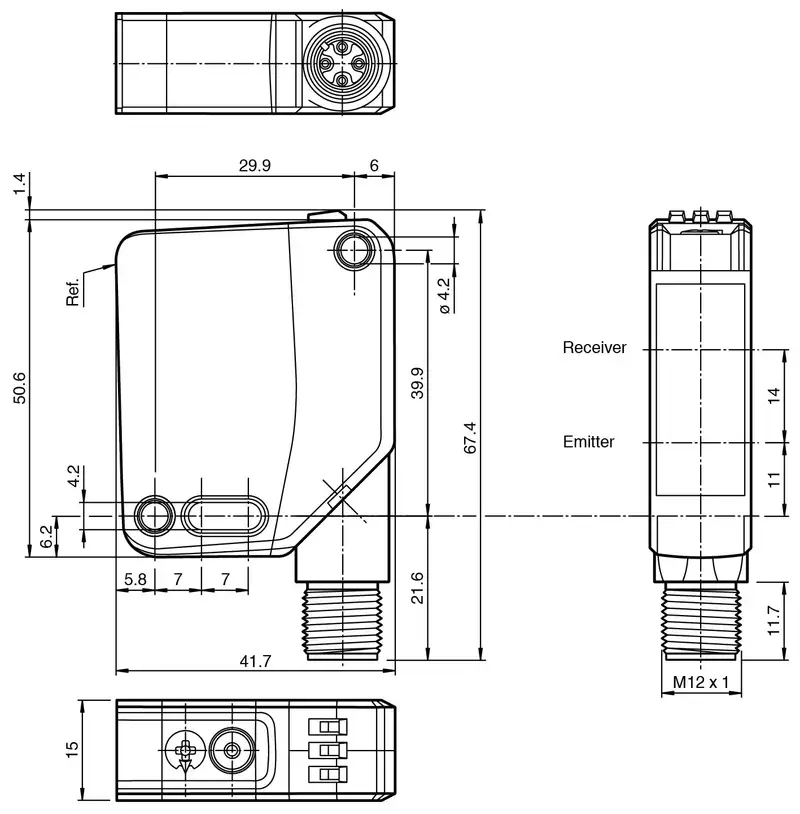

| Height |
50.6 mm |
| Width |
15 mm |
| Depth |
41.7 mm |
| Approvals |
|
| UL Approval |
E87056, cULus Listed, Class 2 Power Supply, Type Rating 1 |
| CCC Approval |
Not Required (≤ 36 V) |
