Tired of missing barcode reads on fast moving lines? The PEPPERL+FUCHS BIS510P-F201A-60 752 x 480 pixels CMOS Vision Sensor gives you reliable vision in harsh factory environments. It captures clear images of tiny codes at short distances, so you can stop production loss caused by unreadable tags. Designed for automation, it combines a camera, lighting and Ethernet in one compact unit, making integration simple for any PLC or robot system.

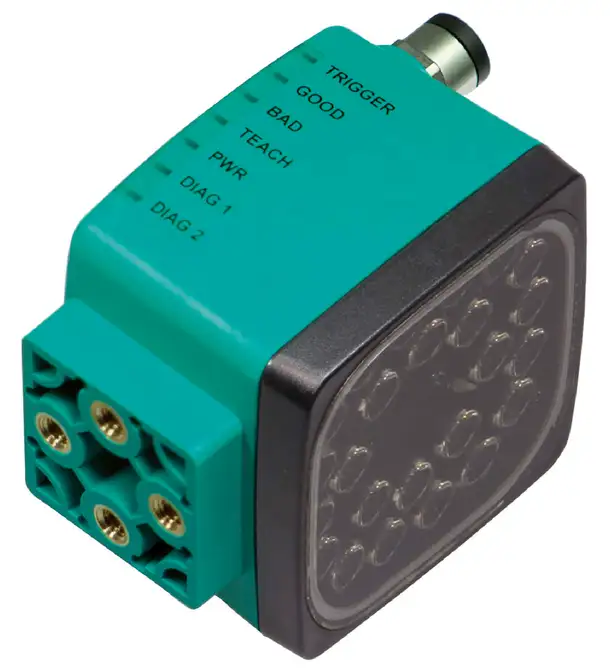

PEPPERL+FUCHS BIS510P-F201A-60 752 x 480 pixels CMOS Vision Sensor
Many factories struggle with inconsistent barcode reading because of poor lighting, motion blur or limited sensor resolution. When a read fails, the line stops, operators intervene and costs rise. This sensor solves the problem by offering a global-shutter CMOS camera, built-in white LED lighting and a fast 10 Hz evaluation rate. The Ethernet interface lets you send data instantly to your control system, keeping the line running smoothly.
Key Features
- 752 x 480 pixel CMOS sensor with global shutter.
- Integrated white LED lighting for consistent illumination.
- Evaluation frequency of 10 Hz for fast moving objects.
- Maximum target velocity of 4 m/s when triggered.
- Ethernet TCP/IP interface, 100 Mbit/s transfer rate.
- 24 V DC supply, max 250 mA no-load current.
- IP67 rating protects against water and dust.
- 30 m maximum cable length for both power and I/O.
- Four M6 threaded mounting holes for secure installation.
- Eight-pin M12 connector for power and I/O, plus LAN socket.
Specifications
| Light type |
Integrated LED lighting (white) |
| Symbologies |
2/5 Interleaved, Code13, Code39, Code128, Pharmacode |
| Object size |
25 mm × 25 mm |
| Read distance |
52 mm |
| Depth of focus |
±5 mm |
| Reading field |
65 mm × 40 mm |
| Evaluation frequency |
10 Hz |
| Target velocity (triggered) |
Max. 4 m/s |
| Camera |
|
| Type |
CMOS, Global shutter |
| Number of pixels |
752 × 480 pixels |
| Gray scale |
256 |
| Image recording |
Real-time, program-controlled or externally triggered |
| Indicators / Operating Means |
|
| Operation indicator |
Green LED: Ready for operation |
| Control elements |
2 × Buttons |
| LED indications |
Trigger, Good, Bad, Teach, Diag1, Diag2, PWR |
| Electrical Specifications |
|
| Operating voltage (UB) |
24 V DC ±15%, PELV |
| No-load supply current (I₀) |
Max. 250 mA |
| Power consumption (P₀) |
6 W |
| Ethernet Interface |
|
| Interface type |
Ethernet |
| Protocol |
TCP/IP |
| Transfer rate |
100 Mbit/s |
| Maximum cable length |
30 m |
| Inputs |
|
| Input voltage |
24 V DC ±15%, PELV |
| Number / Type |
1 × Trigger input · 1 × Teach input · 2 × Digital inputs (IN1, IN2) |
| Input current |
Approx. 2 mA at 24 V DC |
| Switching threshold |
Low: <10 V · High: >15 V |
| Maximum cable length |
30 m |
| Outputs |
|
| Number / Type |
Teach Active, Good, Bad, Ready |
| Switching type |
PNP, short-circuit and overload protected |
| Switching voltage |
24 V DC ±15%, PELV |
| Switching current |
Max. 100 mA per output |
| Maximum cable length |
30 m |
| Standards & Compliance |
|
| Noise immunity |
EN 61326-1 |
| Emitted interference |
EN 61000-6-4 |
| Degree of protection standard |
EN 60529 |
| Photobiological safety |
Risk Group 1 according to IEC 62471 |
| Approvals |
CE |
| Environmental Specifications |
|
| Ambient temperature |
0 °C to 45 °C (32 °F to 113 °F) |
| Storage temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Relative humidity |
80%, non-condensing |
| Shock resistance |
<50 g |
| Vibration resistance |
<3 G, 11–200 Hz |
| Protection rating |
IP67 |
| Mechanical Specifications |
|
| Connection |
8-pin M12×1 connector (Supply + I/O) · 5-pin M12×1 socket (I/O) · 4-pin M12×1 D-coded socket (LAN) |
| Housing material |
PC/ABS |
| Optical face |
Plastic pane |
| Installation |
4 × M6 threaded mounting holes |
| Mass |
Approx. 160 g |
| Width |
70 mm |
| Height tolerance |
±0.3 mm |
