Struggling with a cramped workspace and slow navigation? The Philips 242B9T Touch Monitor turns a cluttered desk into an intuitive command center. Its 10-point capacitive touch lets you control apps, presentations and design tools with a single swipe.

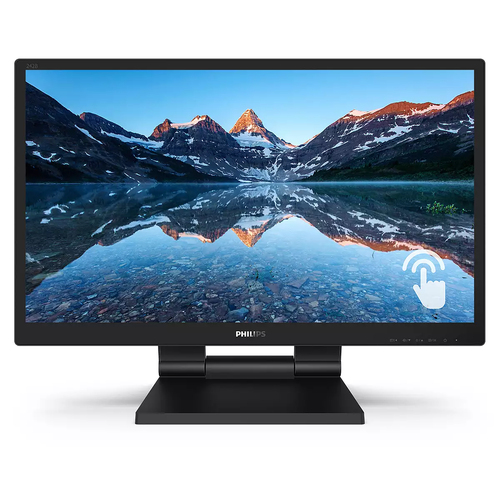

Philips 242B9T Touch Monitor, 23.8" FHD IPS LCD 10-Point Touch Black

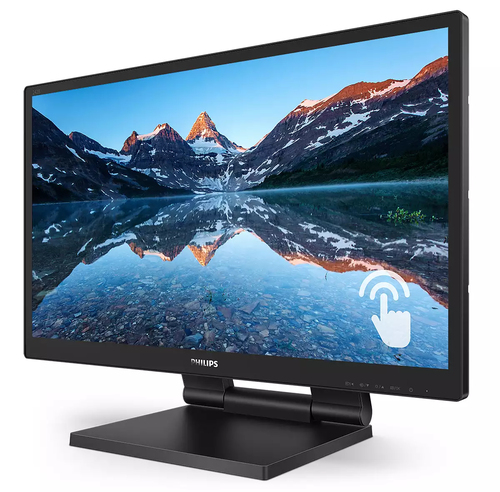

This 23.8-inch Full HD IPS panel delivers 1920 × 1080 resolution with vivid 72% NTSC colour coverage. The 5 ms response time and 250 cd/m² brightness keep motion smooth and images bright, while the 178° viewing angles ensure consistent colour from any side of the room. Built on a rugged 7H surface, the screen resists scratches, dust and water (IP54 rating), making it ideal for busy offices, labs or retail kiosks.
The monitor includes an articulating stand that tilts from -5° to 90° and raises up to 18.4 cm, so you can find the perfect ergonomic angle. With a built-in USB-C hub, two USB-A ports, HDMI, DisplayPort, DVI-D and VGA inputs, you can connect virtually any device. The integrated speakers deliver clear audio for video calls, while Low-Blue Light and Flicker-Free technologies protect your eyes during long sessions.
Benefits
Enjoy a faster workflow as the 10-point multi-touch interface replaces mouse clicks with direct finger gestures. The sturdy, dust-proof design reduces maintenance downtime, and the adjustable stand promotes better posture, lowering fatigue during extended use. Energy-Star certification and low power consumption keep operating costs down while delivering a crisp, colour-accurate display for design, data analysis or interactive presentations.
Features
- 23.8" Full HD IPS panel
- 10-point capacitive touch
- IP54 water and dust resistance
- Adjustable tilt and height
- Built-in USB hub
- Low-Blue Light mode
- Flicker-Free technology
- Energy-Star certified
Usage
Set up the monitor on a desk or mount it on a VESA-compatible arm for a clean, space-saving installation. Plug in your PC, laptop or tablet via HDMI, DisplayPort or USB-C and start interacting instantly-no drivers required thanks to plug-and-play support for Windows 7-10 and Android 4.4-7.1. The 10-point touch works with fingers, stylus or gloves, making it perfect for collaborative design sessions, point-of-sale terminals or educational environments.
Specifications
| Display |
| Display sRGB |
Yes |
| Separate H/V sync |
Yes |
| 3D |
No |
| NTSC coverage (typical) |
72% |
| Colour gamut |
72% |
| Colour gamut standard |
sRGB |
| Surface hardness |
7H |
| DDC/CI |
Yes |
| Display diagonal (metric) |
60.5 cm |
| Sync-on-green (SOG) |
Yes |
| Digital vertical frequency |
48 - 75 Hz |
| Digital horizontal frequency |
30 - 85 kHz |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
48 - 75 Hz |
| Horizontal scan range |
30 - 85 kHz |
| Pixel density |
93 ppi |
| Pixel pitch |
0.275 x 0.275 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Dynamic contrast ratio marketing name |
SmartContrast |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat |
| Display surface |
Gloss |
| Response time |
5 ms |
| Display brightness |
250 cd/m² |
| Display brightness (typical) |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Capacitive |
| Touchscreen type |
Tabletop |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
| OmniTapps Multitouch compatibility |
No |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Component video sync |
Separate sync, Sync-on-green (SOG) |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Home |
| Ports & interfaces |
| HDCP version |
1.4 |
| HDCP |
Yes |
| PC Audio in |
Yes |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1.2 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1.4 |
| HDMI |
Yes |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
2 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| LED indicators |
Power, Stand-by |
| Plug and Play |
Yes |
| Number of OSD languages |
20 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Tilt angle range |
-5 - 90° |
| Tilt adjustment |
Yes |
| Swivelling |
No |
| Pivot |
No |
| Adjustable height (max) |
18.4 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
399649 |
| Energy efficiency scale |
A to G |
| Power supply type |
AC |
| AC input frequency |
50-60 Hz |
| AC input voltage |
100–240 |
| Power consumption (PowerSave) |
11.5 W |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
16 W |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 3658 m |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight (without stand) |
4.86 kg |
| Height (without stand) |
338 mm |
| Depth (without stand) |
50 mm |
| Width (without stand) |
554 mm |
| Weight (with stand) |
8.15 kg |
| Height (with stand) |
413 mm |
| Depth (with stand) |
227 mm |
| Width (with stand) |
554 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
11.1 kg |
| Package height |
433 mm |
| Package depth |
168 mm |
| Package width |
620 mm |
| Packaging content |
| Bundled software |
SmartControl |
| Manual |
Yes |
| Cables included |
VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC |
| Stand included |
Yes |
| Sustainability |
| Doesn't contain |
PVC/BFR, Mercury |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Picture enhancement |
SmartImage |
| Recommended resolution |
1920 x 1080 @ 60 Hz |
| Regulatory Approvals |
CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus |
| Touch method |
Stylus, Finger, Glove |
| Certification |
CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC |
| Mean time between failures (MTBF) |
70000 h |
| Compliance certificates |
RoHS |
| Display viewable area (HxV) |
527 x 296.5 mm |
| EasyRead mode |
Yes |
| Energy efficiency class (old) |
A |
| Folding angle |
70° |
| Heavy metals free |
Hg (mercury) |
| LowBlue mode |
Yes |
| Mobile operating systems supported |
Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
| Package weight |
11.1 kg |
| Recyclable packaging material |
100% |
| Package dimensions (WxDxH) |
620 x 433 x 168 mm |
| Exterior finish type |
Textured |
| TV tuner integrated |
No |
| Rotating |
No |
| International Protection (IP) code |
IP54 |
