Are you tired of using multiple devices to manage your analog inputs? Do you struggle with inaccurate readings and slow data transfer? Look no further than the Phoenix Contact AXL SE AI4 I 4-20 4-Channel Analog Input Module. This innovative device is designed to simplify your workflow and provide accurate readings with its 4-channel analog input capability. With the Phoenix Contact AXL SE AI4 I 4-20, you can easily connect your devices and start monitoring your analog inputs in no time. Many buyers face the problem of dealing with multiple devices, which can be time-consuming and prone to errors. The Phoenix Contact AXL SE AI4 I 4-20 solves this problem by providing a single, reliable solution for all your analog input needs.

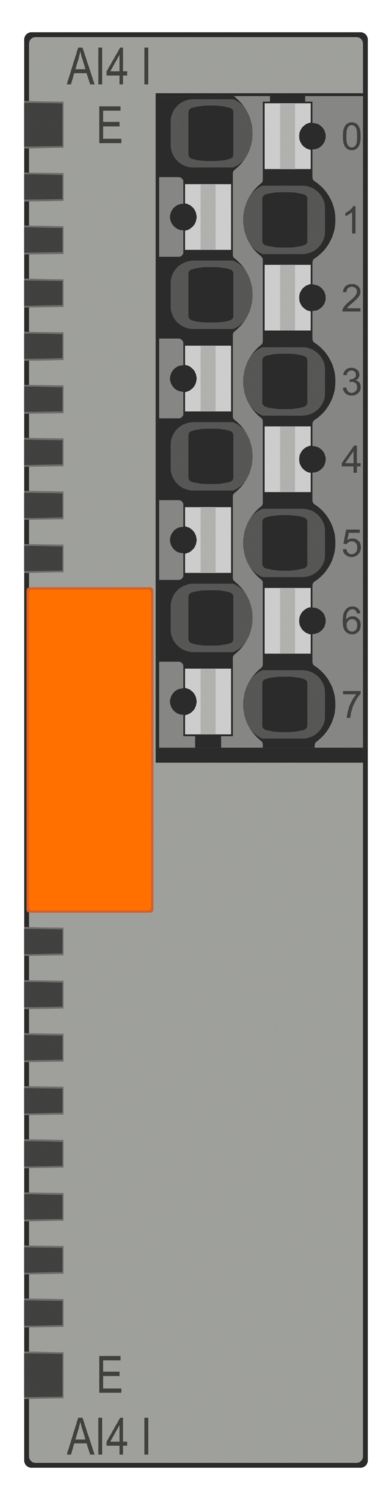

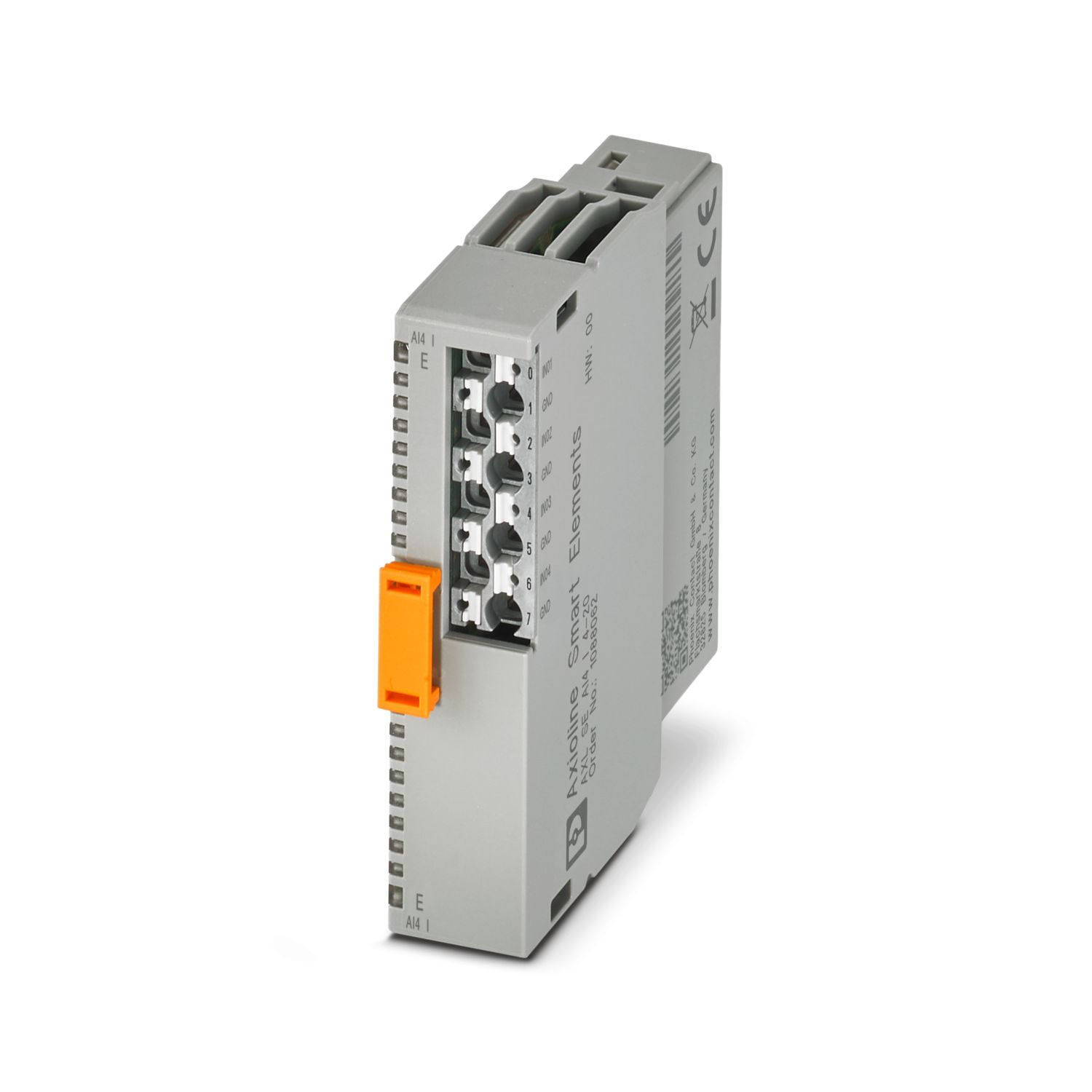

Phoenix Contact AXL SE AI4 I 4-20 4-Channel Analog Input Module
The Phoenix Contact AXL SE AI4 I 4-20 4-Channel Analog Input Module solves the problem of inaccurate and slow analog input readings. This problem matters to users because it can lead to incorrect decisions and wasted time. The Phoenix Contact AXL SE AI4 I 4-20 provides a clear solution by offering high-precision analog input readings and fast data transfer. With its 12-bit A/D converter resolution and 16-bit measured value representation, you can trust the accuracy of your readings. The Phoenix Contact AXL SE AI4 I 4-20 is designed to make your work easier and more efficient, allowing you to focus on what matters most.
Key Features
- 4-channel analog input capability for multiple device connections
- 12-bit A/D converter resolution for high-precision readings
- 16-bit measured value representation for accurate data transfer
- Single-ended current input for simple and reliable connections
- 2-conductor, push-in connection technology for easy installation
- 24 V DC supply voltage for low-power consumption
- Typical current consumption of 15 mA for energy efficiency
- Maximum power dissipation of 0.75 W for safe operation
- Reverse polarity protection, surge protection, and transient protection for reliable operation
- 500 V AC isolation between communication supply, I/O supply, and functional ground for safe and reliable operation
- IP20 degree of protection for use in harsh environments
Specifications
| Manufacturer |
Phoenix Contact |
| Product Name |
AXL SE AI4 I 4-20 |
| Part Number |
1088062 |
| Product Family |
Axioline Smart Elements |
| Product Type |
Analog Input Module |
| Analog Inputs |
4 |
| Input Signal |
4 mA to 20 mA |
| Input Type |
Single-ended current input |
| Connection Technology |
2-conductor, Push-in connection |
| A/D Converter Resolution |
12-bit |
| Measured Value Representation |
16-bit |
| Input Resistance |
Max. 60 Ω |
| Process Data Channel |
64-bit |
| Input Address Area |
8 Bytes |
| Output Address Area |
0 Bytes |
| Smart Element Interface |
1 × Card edge connector |
| Supply Voltage |
24 V DC (19.2–30 V DC) |
| Current Consumption |
Typ. 15 mA, Max. 20 mA |
| Power Dissipation |
Max. 0.75 W |
| Protection |
Reverse polarity protection, Surge protection, Transient protection |
| Electrical Isolation |
500 V AC isolation between communication supply, I/O supply, and functional ground |
| Degree of Protection |
IP20 |
| Mounting |
Plug-in mounting (Smart Element slot) |
| Dimensions (W × H × D) |
14.9 × 62.2 × 62 mm |
| Housing Color |
Gray (RAL 7042) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Vibration Resistance |
5 g (IEC 60068-2-6) |
| Shock Resistance |
30 g (IEC 60068-2-27) |
| Approvals |
cULus Listed, DNV, LR, RINA, ABS, RoHS, REACH |
| Country of Origin |
Germany |
