If you are working with digital systems, you know how important it is to have a reliable way to get information from sensors and other devices. The problem is that many digital input modules are hard to use and do not work well with your system. This can cause big problems and make it hard to get the information you need. The Phoenix Contact AXL SE DI16/1 16-Channel 24V DC Digital Input Module 1088127 solves this problem by giving you a simple and reliable way to get digital inputs from your devices. This is important because it helps you to make your system work better and to get the information you need to make good decisions.

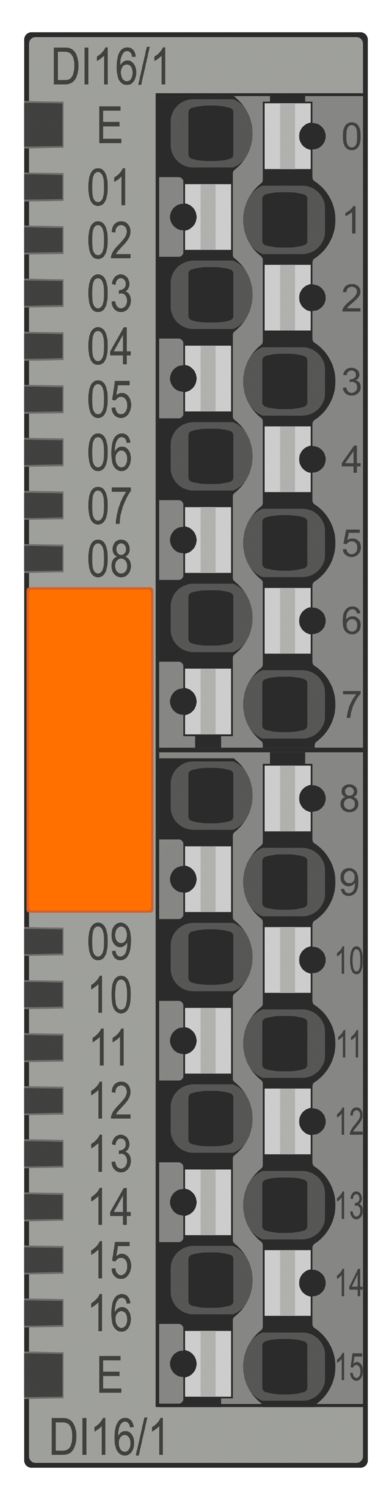

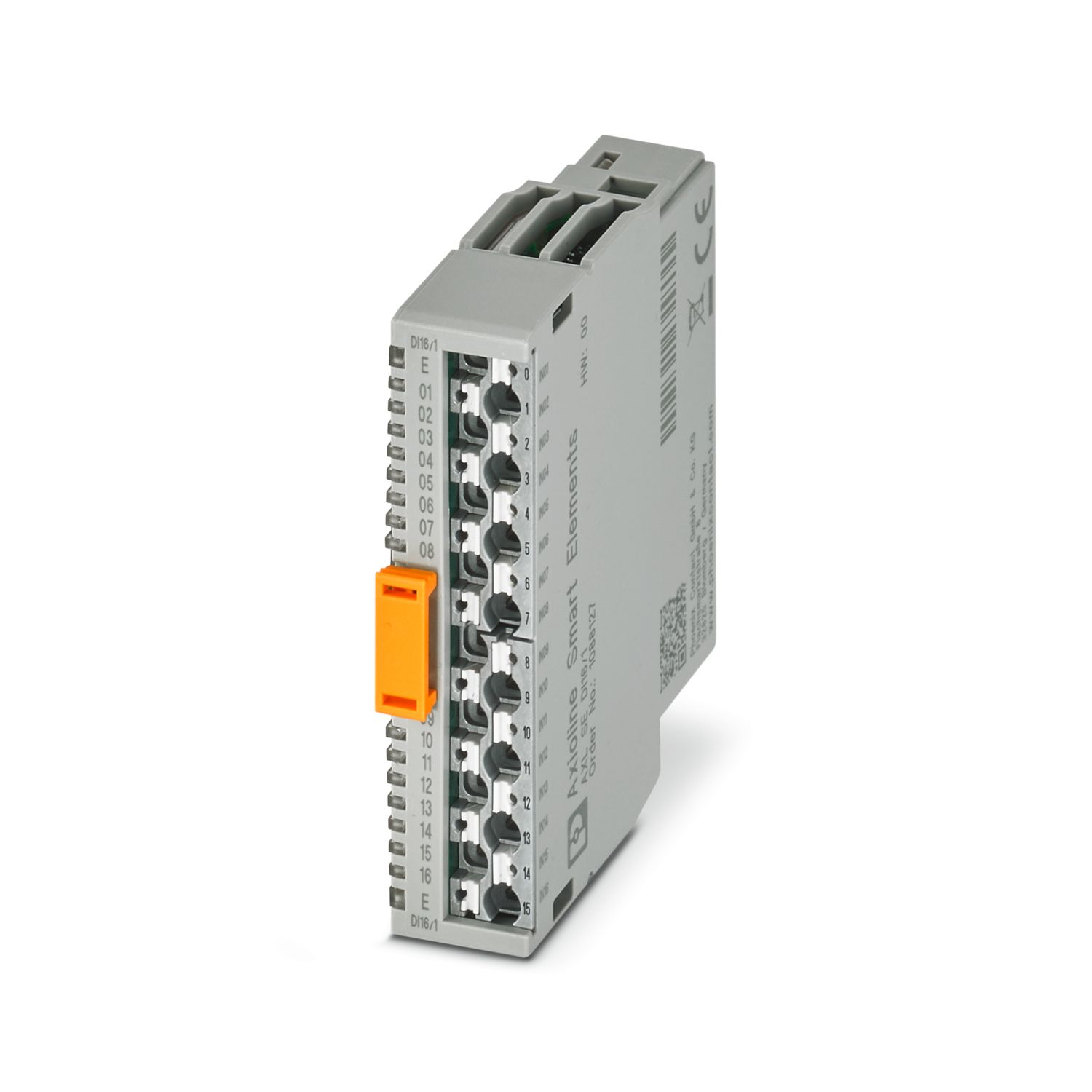

Phoenix Contact AXL SE DI16/1 16-Channel 24V DC Digital Input Module 1088127 with Phoenix
Are you tired of using digital input modules that are hard to use and do not work well with your system? The Phoenix Contact AXL SE DI16/1 16-Channel 24V DC Digital Input Module 1088127 is here to help. This module is designed to work with the Phoenix system and gives you a simple and reliable way to get digital inputs from your devices. Many buyers have problems with digital input modules that are not compatible with their system or are hard to use. This module solves this problem by being easy to use and compatible with the Phoenix system.
Key Features
- 16 digital inputs
- 24V DC nominal input voltage
- 2.4 mA per input nominal input current
- Less than 1 ms input filter time
- 16-bit process data channel
- 2 bytes input address area
- 0 bytes output address area
- 1-conductor push-in connection technology
- Smart Element interface with 1 x card edge connector
- 24 V DC supply voltage
- Min. 14 mA, Max. 17 mA current consumption
Specifications
| Manufacturer |
Phoenix Contact |
| Product Name |
AXL SE DI16/1 |
| Part Number |
1088127 |
| Product Family |
Axioline Smart Elements |
| Product Type |
Digital Input Module |
| Digital Inputs |
16 |
| Input Type |
EN 61131-2 Type 1 and Type 3 |
| Nominal Input Voltage |
24 V DC |
| Input Voltage ("0" Signal) |
-3 V DC to 5 V DC |
| Input Voltage ("1" Signal) |
11 V DC to 30 V DC |
| Nominal Input Current |
2.4 mA per input |
| Input Filter Time |
< 1 ms |
| Process Data Channel |
16-bit |
| Input Address Area |
2 Bytes |
| Output Address Area |
0 Bytes |
| Connection Technology |
1-conductor Push-in connection |
| Smart Element Interface |
1 × Card edge connector |
| Supply Voltage |
24 V DC (19.2–30 V DC) |
| Current Consumption |
Min. 14 mA, Max. 17 mA |
| Power Dissipation |
Max. 1.4 W |
| Protection |
Polarity reversal protection, Surge protection |
| Electrical Isolation |
500 V AC isolation between communication, I/O supply, and functional ground |
| Degree of Protection |
IP20 |
| Mounting |
Plug-in mounting (Smart Element slot) |
| Dimensions (W × H × D) |
14.9 × 62.2 × 62 mm |
| Housing Color |
Gray (RAL 7042) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Protection Class |
Class III (IEC 61140) |
| Approvals |
cULus Listed, DNV, LR, RINA, ABS, RoHS, REACH |
| Country of Origin |
Germany |
