Are you tired of using outdated and inefficient digital output modules in your industrial control systems? Look no further than the Phoenix Contact AXL SE DO16/1 16-Channel 24V DC Digital Output Module. This innovative product is designed to provide a reliable and efficient solution for controlling and monitoring digital outputs in a variety of applications. With its 16-channel design, you can easily control and monitor multiple devices with ease. The Phoenix Contact AXL SE DO16/1 is perfect for use in industrial automation, process control, and other applications where reliable digital output control is crucial. Many buyers face the problem of finding a digital output module that can handle high currents and provide reliable operation, but with the Phoenix Contact AXL SE DO16/1, you can say goodbye to these problems.

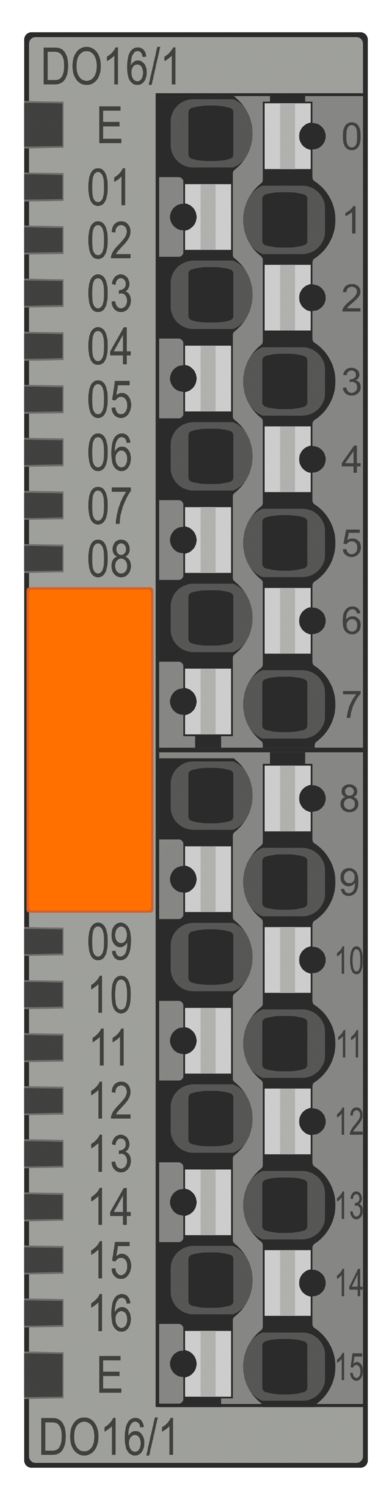

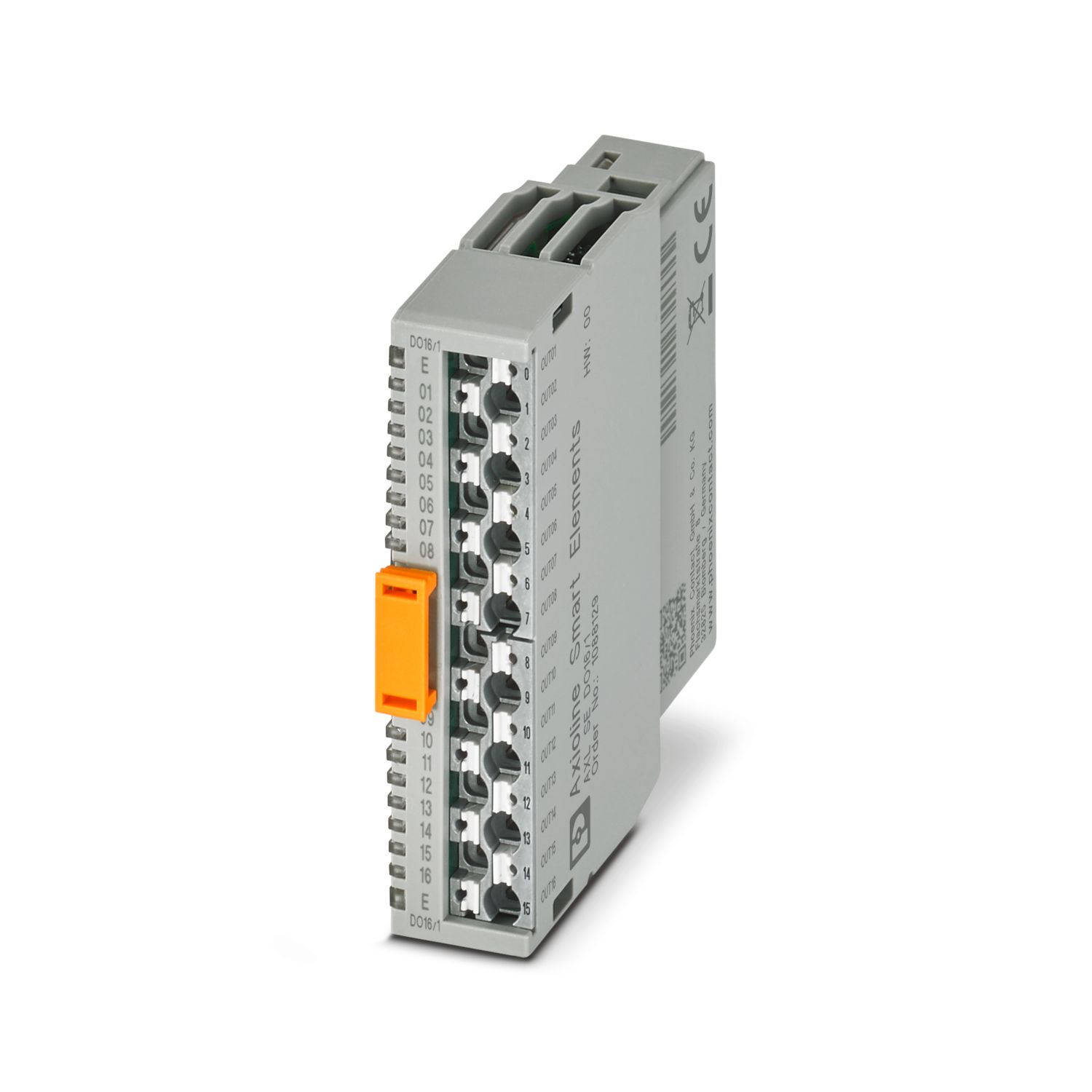

Phoenix Contact AXL SE DO16/1 16-Channel 24V DC Digital Output Module
The Phoenix Contact AXL SE DO16/1 16-Channel 24V DC Digital Output Module solves the problem of inefficient and unreliable digital output control. This problem matters to users because it can lead to downtime, reduced productivity, and increased maintenance costs. The Phoenix Contact AXL SE DO16/1 provides a clear solution by offering a high-current digital output module that can handle demanding applications. With its advanced design and reliable operation, you can trust the Phoenix Contact AXL SE DO16/1 to provide accurate and efficient digital output control. The product uses related keywords like digital output module, industrial automation, and process control to describe its functionality and application.
Key Features
- 16-channel digital output module for controlling and monitoring multiple devices
- 24V DC output voltage for use in a variety of applications
- 500 mA per output for high-current applications
- Electronic short-circuit and overload protection for reliable operation
- 1-conductor push-in connection for easy installation
- IP20 degree of protection for use in harsh environments
- Compact design for easy installation in control panels and distribution boards
- Advanced design for accurate and efficient digital output control
- Reverse polarity protection and surge protection for reliable operation
- Class III protection according to IEC 61140 for safe operation
- cULus Listed, DNV, LR, RINA, ABS, RoHS, and REACH approvals for compliance with international standards
Specifications
| Manufacturer |
Phoenix Contact |
| Product Name |
AXL SE DO16/1 |
| Part Number |
1088129 |
| Product Family |
Axioline Smart Elements |
| Product Type |
Digital Output Module |
| Digital Outputs |
16 |
| Output Voltage |
24 V DC |
| Maximum Output Current |
500 mA per output |
| Maximum Output Current (Module) |
6 A |
| Connection Technology |
1-conductor Push-in connection |
| Protective Circuit |
Electronic short-circuit and overload protection |
| Process Data Channel |
16-bit |
| Input Address Area |
0 Bytes |
| Output Address Area |
2 Bytes |
| Smart Element Interface |
1 × Card edge connector |
| Supply Voltage |
24 V DC (19.2–30 V DC) |
| Current Consumption |
Min. 40 mA (without connected peripherals) |
| Power Dissipation |
Max. 1.2 W |
| Electrical Isolation |
500 V AC isolation between communication supply, I/O supply, and functional ground |
| Protection |
Reverse polarity protection, Surge protection |
| Degree of Protection |
IP20 |
| Mounting |
Plug-in mounting (Smart Element slot) |
| Dimensions (W × H × D) |
14.9 × 62.2 × 62 mm |
| Housing Color |
Gray (RAL 7042) |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Protection Class |
Class III (IEC 61140) |
| Approvals |
cULus Listed, DNV, LR, RINA, ABS, RoHS, REACH |
| Country of Origin |
Germany |
