If you are working with industrial automation systems, you know how important it is to have a reliable communication module. The problem is that many communication modules on the market are not reliable and can cause system failures. This can lead to costly downtime and lost productivity. The Phoenix Contact AXL SE RS232 EF Smart Element Communication Module is a solution to this problem. It provides a reliable and efficient way to communicate with your industrial automation systems. With its advanced features and robust design, it can help you to improve the overall performance of your system and reduce the risk of failures. This is especially important in industries where downtime can have serious consequences, such as manufacturing and healthcare.

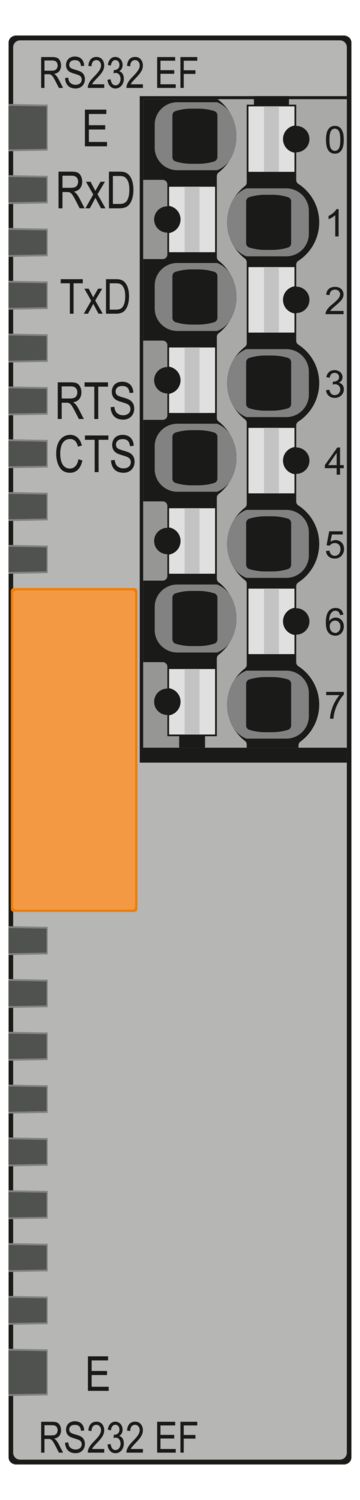

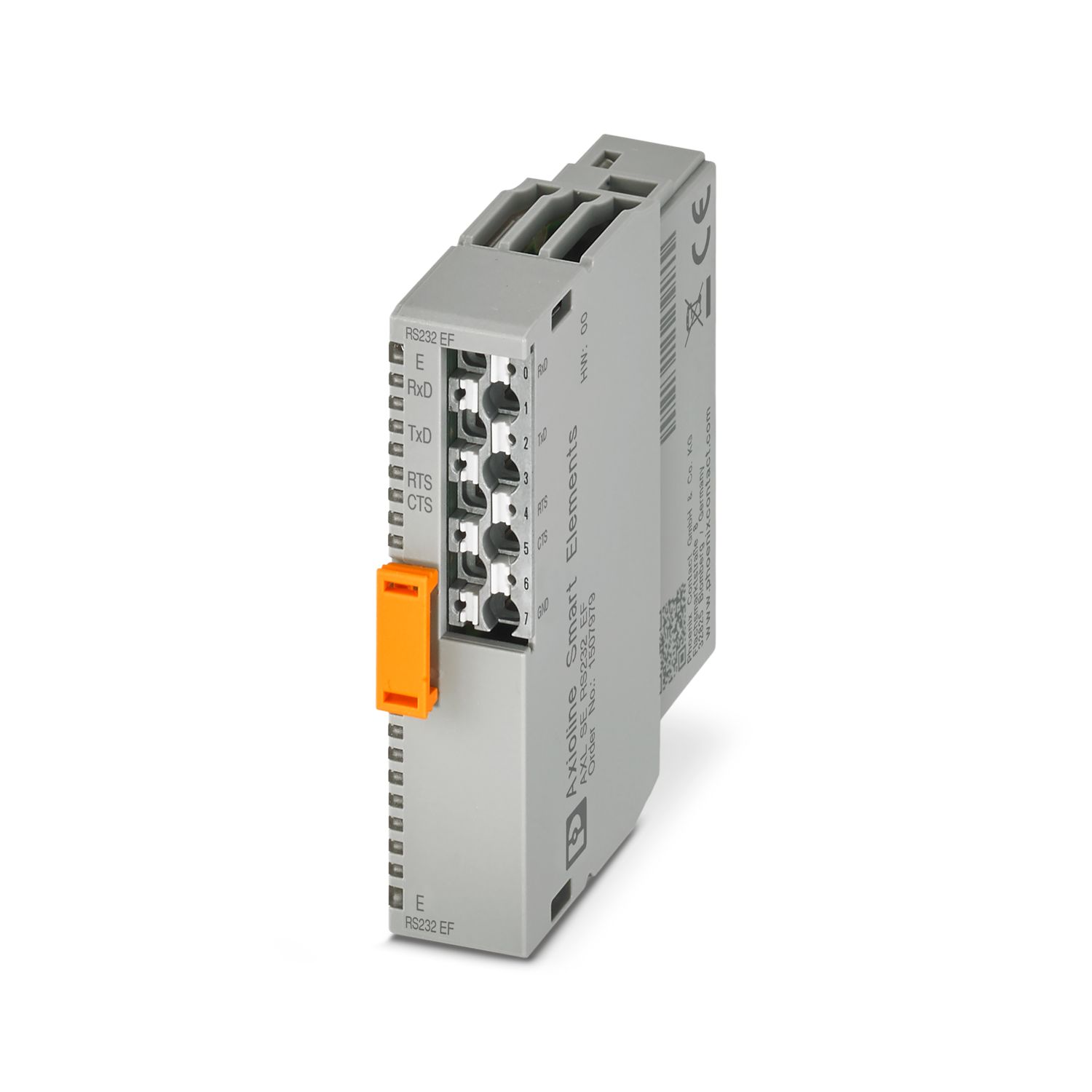

Phoenix Contact AXL SE RS232 EF Smart Element Communication Module with Phoenix
Are you tired of using unreliable communication modules that can cause system failures? Look no further than the Phoenix Contact AXL SE RS232 EF Smart Element Communication Module. This advanced communication module is designed to provide a reliable and efficient way to communicate with your industrial automation systems. With its robust design and advanced features, it is the perfect solution for industries where downtime can have serious consequences. The Phoenix Contact AXL SE RS232 EF Smart Element Communication Module is a key component of the Phoenix product line, offering a range of benefits and features that make it an essential tool for any industrial automation system.
Key Features
- RS-232 communication interface
- Push-in connection for easy installation
- Card edge connector for Smart Element interface
- Supported protocols include Modbus RTU, transparent protocol, and XON/XOFF protocol
- Transmission speed of 100 bps to 230,400 bps
- Input buffer of 4 KB and output buffer of 1 KB
- Process data width of 64 bytes
- Input and output address areas of 64 bytes each
- Supply voltage of 24 V DC
- Current consumption of typical 7 mA and maximum 9 mA
Specifications
| Manufacturer |
Phoenix Contact |
| Product Name |
AXL SE RS232 EF |
| Part Number |
1507979 |
| Product Family |
Axioline Smart Elements |
| Product Type |
RS-232 Communication Module |
| Communication Interface |
1 × RS-232 |
| Connection Method |
Push-in connection |
| Smart Element Interface |
1 × Card edge connector |
| Supported Protocols |
Transparent Protocol, End-to-End Protocol, XON/XOFF Protocol, Modbus RTU Client, Modbus RTU Server |
| Transmission Medium |
Copper |
| Transmission Speed |
100 bps to 230,400 bps (parameterizable) |
| Data Bits |
7 or 8 |
| Stop Bits |
1 or 2 |
| Input Buffer |
4 KB |
| Output Buffer |
1 KB |
| Process Data Width |
64 Bytes (512 bits) |
| Input Address Area |
64 Bytes |
| Output Address Area |
64 Bytes |
| Supply Voltage |
24 V DC (19.2–30 V DC) via Smart Element interface |
| Current Consumption |
Typical 7 mA, Maximum 9 mA |
| Power Dissipation |
Maximum 0.3 W |
| Electrical Isolation |
500 VAC isolation between supply, logic, RS-232 interface, and functional ground |
| Protection |
Reverse polarity and surge protection |
| Degree of Protection |
IP20 |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) |
14.9 × 62.2 × 62 mm |
| Housing Color |
Gray (RAL 7042) |
| Mounting |
Plug-in mounting (Smart Element slot) |
| Standards |
IEC 60664-1, EN 60664-1, IEC 61140, EN 61140 |
| Country of Origin |
Germany |
