Are you tired of dealing with complicated communication modules that are hard to set up and use? Look no further than the Phoenix Contact AXL SE RS485 EF RS-485 Smart Element Communication Module. This module is designed to make it easy to communicate with your devices, and it's perfect for anyone who needs a reliable and efficient way to transfer data. With its simple and intuitive design, you'll be able to get started right away, and you'll be amazed at how much easier it is to manage your devices. The Phoenix Contact AXL SE RS485 EF is a game-changer for anyone who needs to communicate with their devices, and it's an essential tool for any business or organization that relies on data transfer.

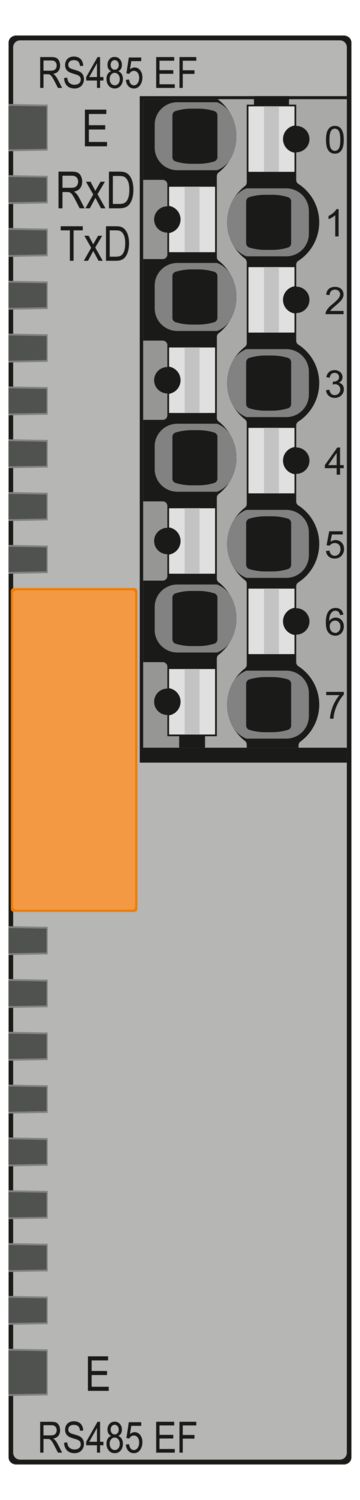

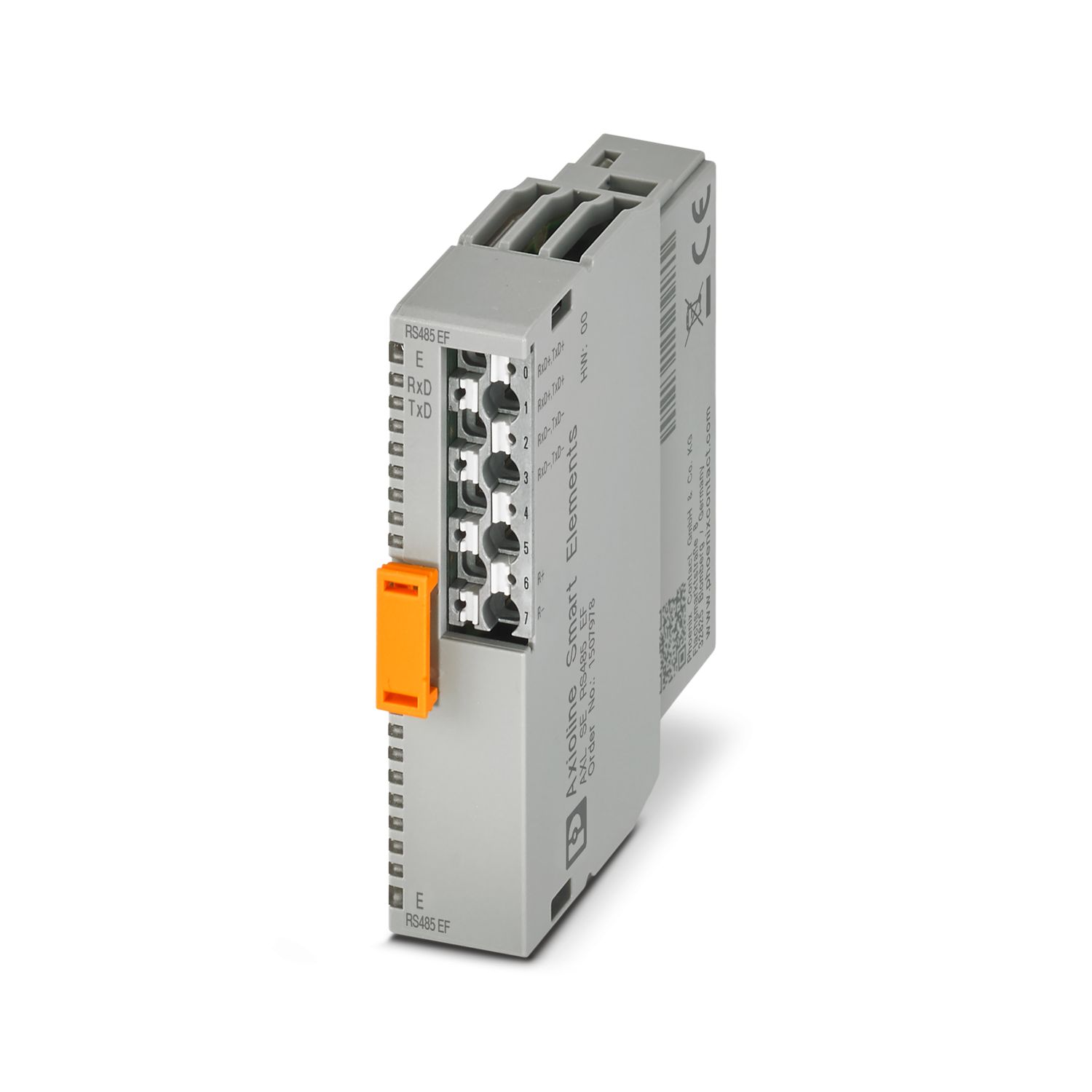

Phoenix Contact AXL SE RS485 EF RS-485 Smart Element Communication Module
The Phoenix Contact AXL SE RS485 EF RS-485 Smart Element Communication Module solves the problem of complicated communication modules that are hard to set up and use. This problem matters to users because it can cause delays and frustration, and it can even lead to errors and lost data. The Phoenix Contact AXL SE RS485 EF provides a clear solution to this problem by offering a simple and intuitive design that makes it easy to communicate with your devices. With its reliable and efficient data transfer, you'll be able to manage your devices with ease, and you'll be amazed at how much easier it is to get the job done.
Key Features
- RS-485 communication interface for reliable and efficient data transfer
- Simple and intuitive design that makes it easy to set up and use
- Supports multiple protocols, including Transparent Protocol, End-to-End Protocol, Modbus RTU Client, and Modbus RTU Server
- Push-in connection for easy installation and removal
- Card edge connector for secure and reliable connection
- Input buffer and output buffer for efficient data transfer
- Process data width of 64 bytes for fast and reliable data transfer
- Input address area and output address area for easy device management
- Supply voltage of 24 V DC for reliable and efficient operation
- Current consumption of typical 8 mA and maximum 10 mA for low power usage
- Power dissipation of maximum 0.7 W for efficient operation
Specifications
| Manufacturer |
Phoenix Contact |
| Product Name |
AXL SE RS485 EF |
| Part Number |
1507978 |
| Product Family |
Axioline Smart Elements |
| Product Type |
RS-485 Communication Module |
| Communication Interface |
1 × RS-485 |
| Connection Method |
Push-in connection |
| Smart Element Interface |
1 × Card edge connector |
| Supported Protocols |
Transparent Protocol, End-to-End Protocol, Modbus RTU Client, Modbus RTU Server |
| Transmission Medium |
Copper |
| Transmission Speed |
100 bps to 230,400 bps (parameterizable) |
| Data Bits |
7 or 8 |
| Stop Bits |
1 or 2 |
| Termination Resistor |
120 Ω, integrated and active |
| Input Buffer |
4 KB |
| Output Buffer |
1 KB |
| Process Data Width |
64 Bytes (512 bits) |
| Input Address Area |
64 Bytes |
| Output Address Area |
64 Bytes |
| Supply Voltage |
24 V DC (19.2–30 V DC) via Smart Element interface |
| Current Consumption |
Typical 8 mA, Maximum 10 mA |
| Power Dissipation |
Maximum 0.7 W |
| Electrical Isolation |
500 VAC isolation between supply, logic, RS-485 interface, and functional ground |
| Protection |
Reverse polarity protection |
| Degree of Protection |
IP20 |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) |
14.9 × 62.2 × 62 mm |
| Housing Color |
Gray (RAL 7042) |
| Mounting |
Plug-in mounting (Smart Element slot) |
| Standards |
IEC 60664-1, EN 60664-1, IEC 61140, EN 61140 |
| Approvals |
RoHS, REACH |
| Country of Origin |
Germany |
