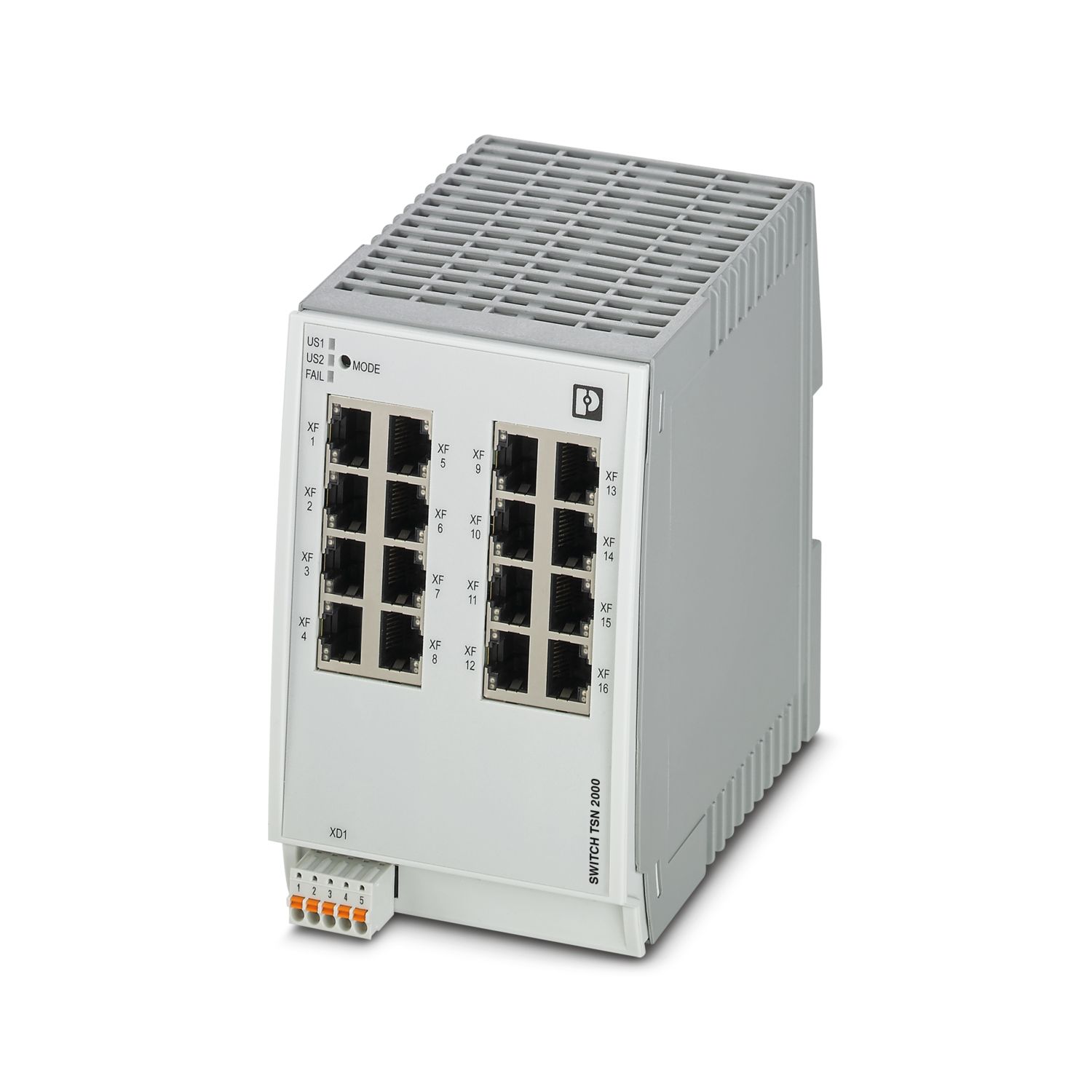

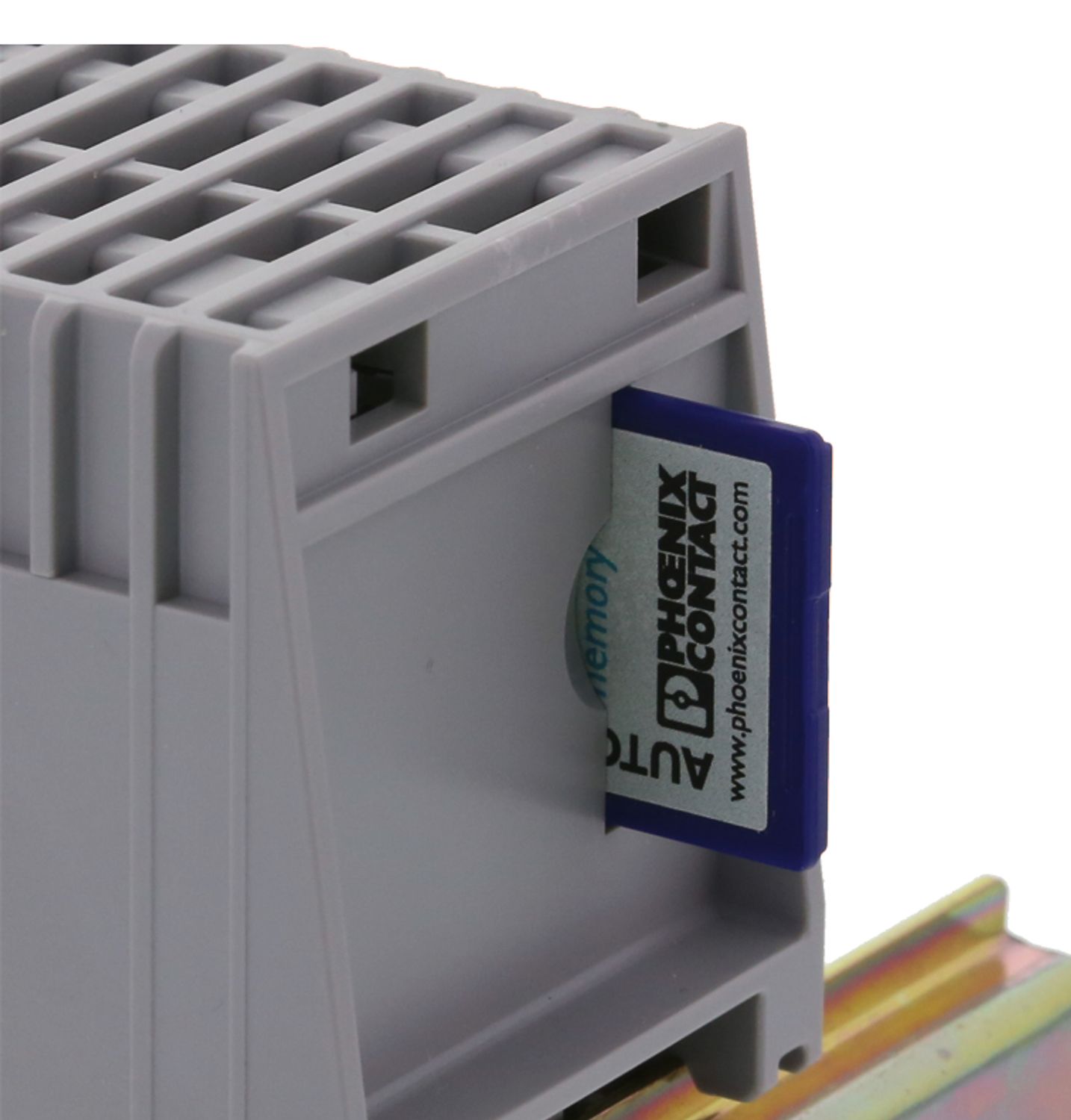

| Product Type |
Switch |
| Product Family |
Managed TSN Switch 2000 |
| Type |
Book type |
| No. of Channels |
16 (RJ45 ports) |
| Ethernet (RJ45) |
RJ45 |
| Transmission Speed |
10/100/1000 Mbps |
| Transmission Physics |
Copper |
| Transmission Length |
100 m (per segment) |
| Connection Method |
RJ45 |
| Auto Negotiation / Autocrossing |
Auto negotiation and autocrossing |
| Management |
Web-based management (HTTP/HTTPS), Role-based user management (LDAP, RADIUS), SNMPv1/v2/v3, Command Line Interface (Telnet, SSH) |
| Management Port |
1 x 10/100/1000BASE-T/TX RJ-45 |
| Console Port |
RS-232 (RJ45) |
| VLAN |
Up to 32 VLANs |
| MAC Address Table |
32k |
| Switching Functions |
Store-and-forward switch, complies with IEEE 802.3 |
| Switch Capacity |
20 Gbps |
| Jumbo Frames |
Max. 9,600 bytes |
| QoS |
8 priority classes, Class of Service, DiffServ/DSCP, Port-Priorisierung |
| IGMP |
IGMP Snooping/Querier (v1/v2) |
| Port Mirroring |
N:1-Portmirroring |
| Link Aggregation |
LACP (Link Aggregation Control Protocol) |
| Redundancy |
MRP (Media Redundancy Protocol), RSTP (Rapid Spanning Tree Protocol), FRD (Fast Ring Detection), Large Tree Support, PROFINET S2 system redundancy |
| PROFINET |
PROFINET conformance class B, PROFINET device function, Fast Startup |
| Time Synchronization |
SNTP (Simple Network Time Protocol), gPTP (IEEE 802.1AS), IEEE 1588v2 (Transparent Clock) |
| Time Precision |
1 ns |
| Industrial Protocol Support |
Transmission of MMS and GOOSE (IEC 61850-8-1), Transmission of Modbus/TCP |
| Security |
MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass |
| IP Parameterization |
DHCP client, DHCP Option 82 (Relay Agent), DHCP server (pool-based, port-based), BootP, DCP (Discovery and Configuration Protocol) |
| Diagnostic Functions |
RMON History, LLDP (Link Layer Discovery Protocol), SNMP-Traps, ACD (Address Conflict Detection), SysLog, CRC-Surveillance |
| Alarm Output |
1 Alarm output |
| Signal Contact Control Voltage |
typ. 24 V DC |
| Status / Diagnostic LEDs |
US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Protection Class |
III (VDE 0106) |
| Degree of Protection |
IP20 |
| Degree of Pollution |
2 |
| Mounting Type |
DIN rail mounting |

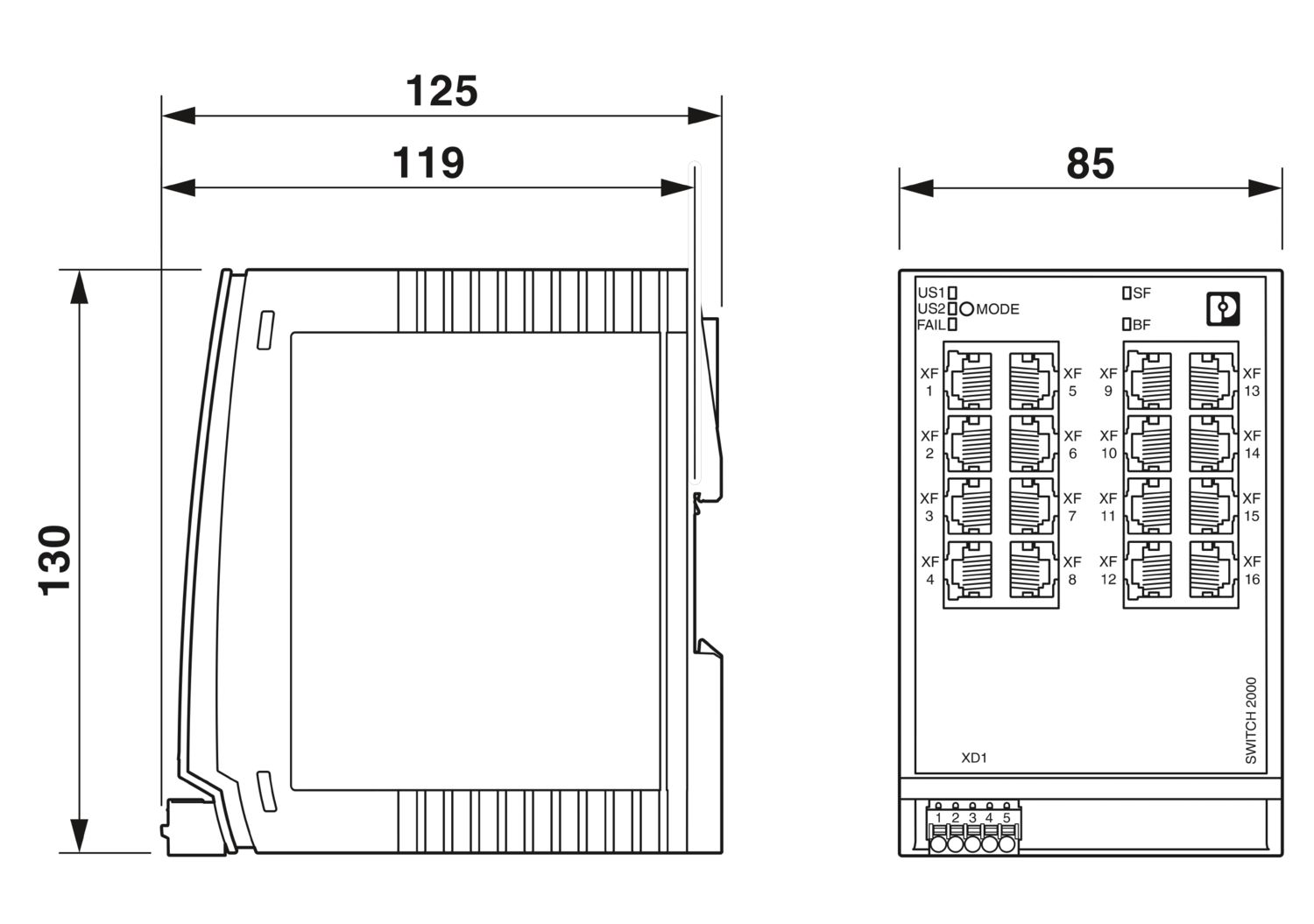

| Dimensions (W × H × D) |
85 × 130 × 115 mm |
| Housing Material |
Polycarbonate fiber reinforced |
| Color (Housing) |
gray (RAL 7042) |
| Color (Cover) |
light gray (RAL 7035) |
| Supply Voltage (DC) |
24 V DC (redundant) |
| Supply Voltage Range |
12 V DC ... 57 V DC |
| Power Supply Connection |
via COMBICON, max. conductor cross-section 1.5 mm² |
| Power Consumption |
30 W (US = Min, Tamb = Max, DOI = Max) |
| Typical Current Consumption |
740 mA (at US = 24 V DC and 25 °C ambient temperature) |
| Max. Current Consumption |
2.5 A (US = Min, Tamb = Max, DOI = Max) |
| Current Consumption |
740 mA |
| Residual Ripple |
3.6 VPP (within the permitted voltage range) |
| Power Connector |
6-pin screw Terminal Block (including relay) |
| Power Connection Method |
Push-in spring connection |
| Pluggable |
yes |
| Conductor Cross-Section, Rigid |
0.25 mm² ... 1.5 mm² |
| Conductor Cross-Section, Flexible |
0.25 mm² ... 1.5 mm² |
| Conductor Cross-Section AWG |
24 ... 16 |
| Stripping Length |
9 mm |
| Operating Temperature |
-40 °C ... 60 °C |
| Storage / Transport Temperature |
-40 °C ... 85 °C |
| Operating Humidity |
10 % ... 95 % (non-condensing) |
| Storage / Transport Humidity |
10 % ... 95 % (non-condensing) |
| Shock (Operation) |
30g (EN 60068-2-27) |
| Vibration (Operation) |
in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air Pressure (Operation) |
79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| Air Pressure (Storage/Transport) |
79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| MTTF |
257.17 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)126.12 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)25.76 Years (SN 29500 standard, temperature 60°C, operating cycle 100%) |
| Special Properties |
Development process certified in accordance with IEC 62443-4-1; Compatible with IEC 62443-4-2 |
| Free from Substances That Could Impair the Application of Coating |
Yes |
| Application |
Only for industrial use |
