Are you tired of listening to music in your car with poor sound quality? Do you want to upgrade your car's audio system to get the best possible sound? If so, you need a high-quality amplifier like the Pioneer GM-A6704, 4-Channel Bridgeable Amplifier (1000W). This amplifier is designed to provide clear and powerful sound, making it perfect for music lovers who want to enjoy their favorite songs on the go. With its advanced features and sleek design, this amplifier is a great addition to any car audio system. Many people struggle with finding the right amplifier for their car, but with the Pioneer GM-A6704, you can trust that you are getting a high-quality product that will meet your needs.

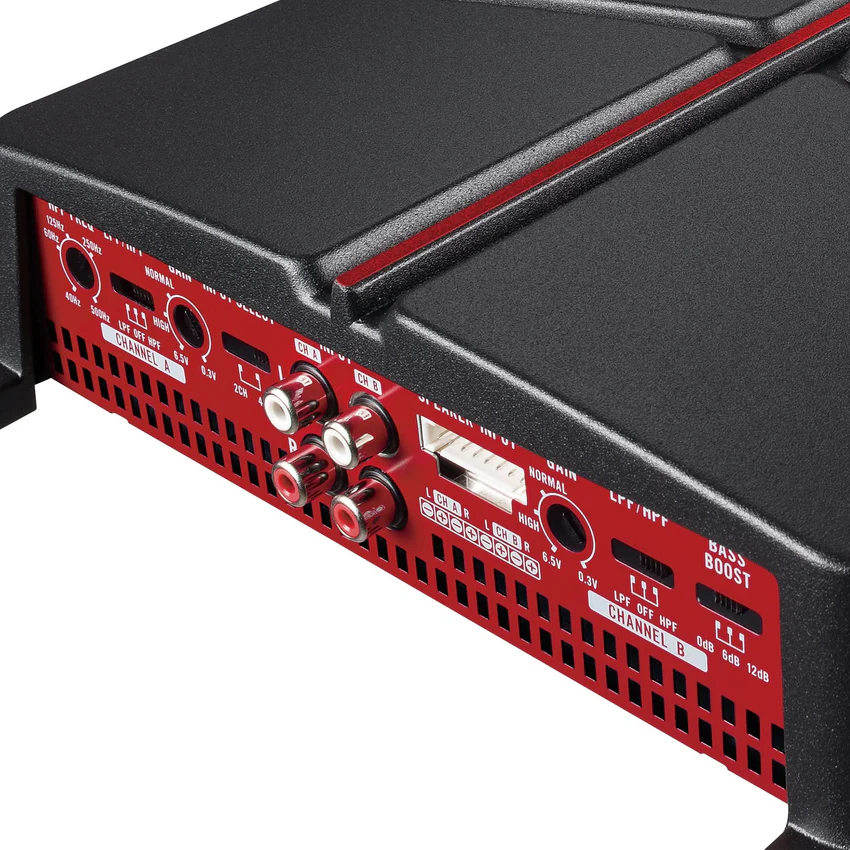

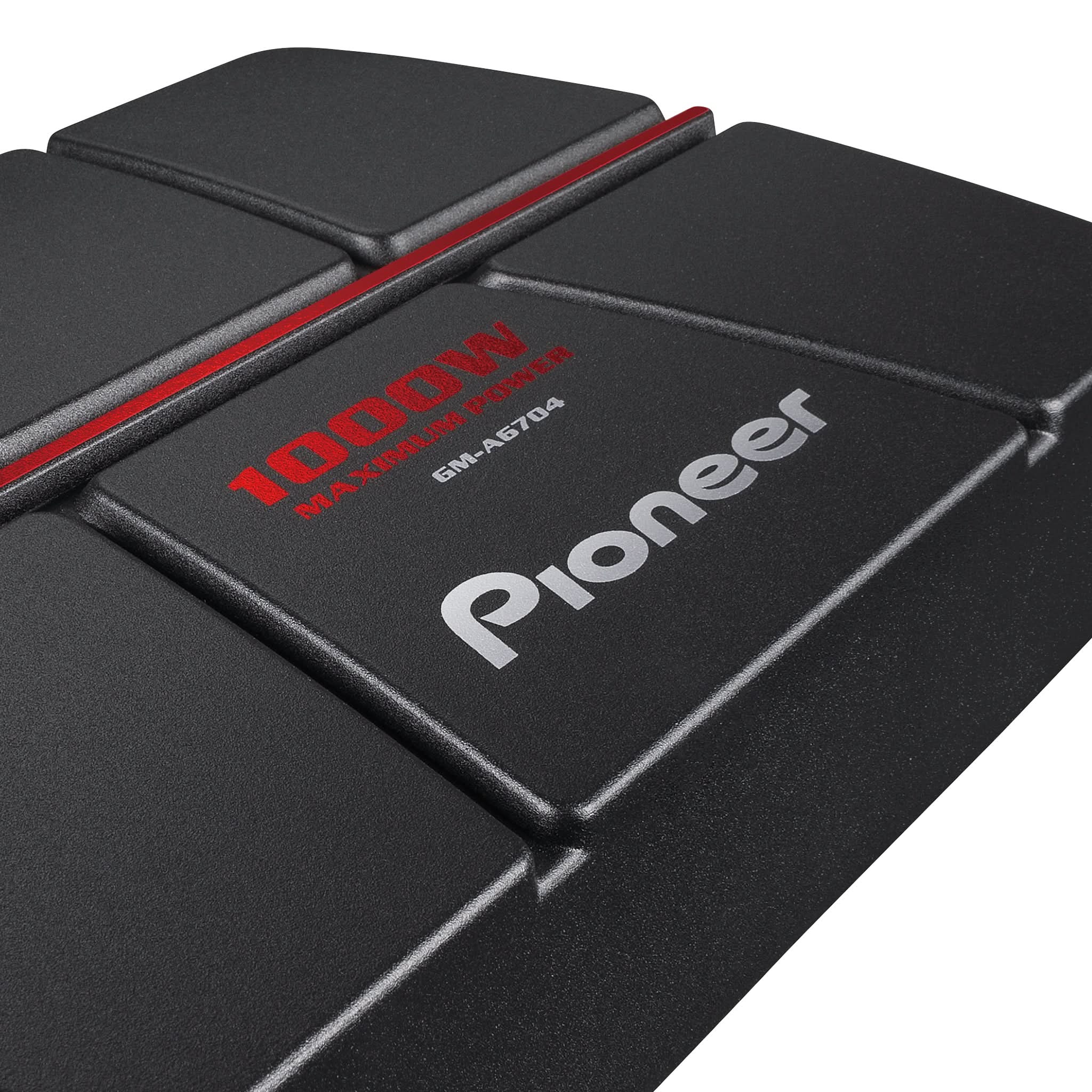

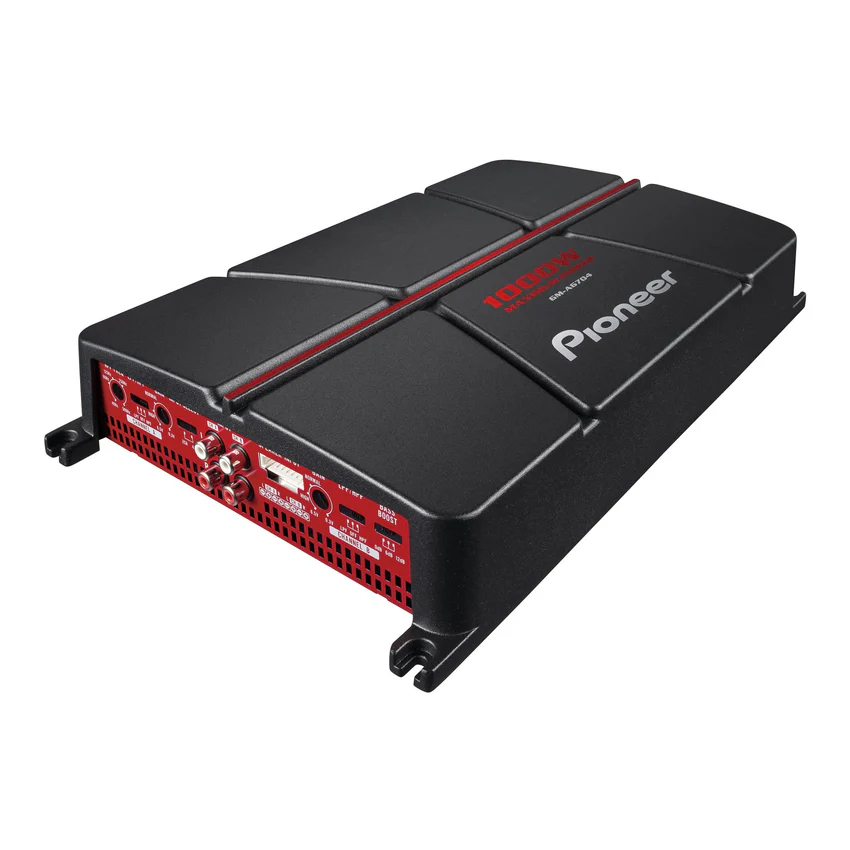

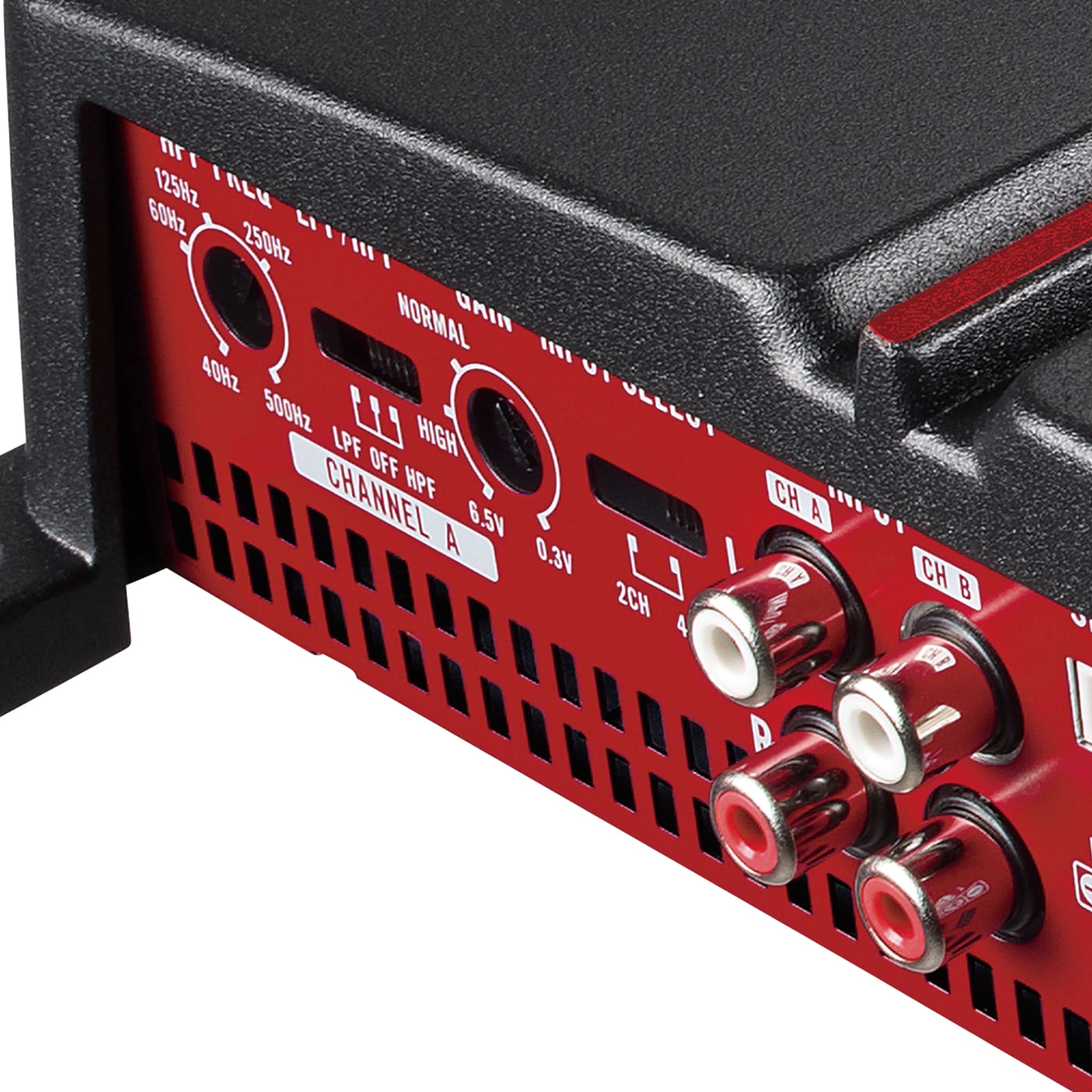

Pioneer GM-A6704, 4-Channel Bridgeable Amplifier (1000W)
The Pioneer GM-A6704 solves the problem of poor sound quality in cars by providing a powerful and clear sound. This problem matters to users because it can be frustrating to listen to music with distorted or weak sound. The Pioneer GM-A6704 gives a clear solution by providing a high-quality amplifier that can handle high power output and has advanced features like automatic signal sensing and turn-on. With this amplifier, you can enjoy your favorite music with clear and powerful sound, making your driving experience more enjoyable. The Pioneer brand is known for its high-quality audio products, and the GM-A6704 is no exception, offering a reliable and durable solution for your car audio needs.
Key Features
- 4-Channel Bridgeable Amplifier with 1000W maximum power output
- Automatic signal sensing and turn-on for easy use
- Selectable HPF/LPF for customizable sound
- Adjustable bass boost for enhanced sound quality
- Compact design for easy installation in small spaces
- High-quality amplifier for clear and powerful sound
- Advanced features like crossover network and speaker line input sensor
- Durable construction for long-lasting use
- Easy to install and use, even for those without extensive audio experience
- Compatible with a variety of car audio systems, making it a great upgrade option
Specifications
| General |
|
| Product |
Pioneer GM-A6704 |
| Model Number |
GM-A6704 |
| Product Type |
Car Amplifiers |
| Category |
Amplifier A Series |
| Amplifier Class |
A/B |
| Channels |
4-Channel |
| Remote Control |
No |
| Power |
|
| Maximum Power Output |
170 W × 4-Channel (4 Ohm), 250 W × 4-Channel (2 Ohm), 1000 W (4 Ohm Bridged) |
| Continuous Power Output |
60 W × 4-Channel (4 Ohm), 95 W × 4-Channel (2 Ohm), 190 W × 2-Channel (4 Ohm Bridged) |
| Amplifier Power |
170 W × 4-Channel (4 Ohm) |
| Performance |
|
| Allowable Load Impedance |
2 Ohm to 8 Ohm allowable |
| Average Current Consumption |
14 A × 2 Channel (4 Ohm), 8.5 A × 4-Channel (4 Ohm) |
| Bass Boost |
50 Hz |
| Frequency Response |
10 Hz to 70 kHz (+0 dB, -3 dB) A/B Ch |
| Fuse Rating |
25 A × 2 |
| Crossover Network |
|
| LPF |
A/B Ch - 80 Hz |
| HPF (A Channel) |
40 Hz to 500 Hz |
| HPF (B Channel) |
80 Hz |
| Crossover Slope |
-12 dB/oct (A/B Ch) |
| Connections |
|
| RCA Inputs |
4-Channel |
| Speaker Line Input Sensor |
Yes |
| Features |
|
| Automatic Signal Sensing and Turn-On |
Supported |
| Selectable HPF/LPF |
Supported |
| Adjustable Bass Boost |
Supported |
