If you are looking for a way to improve the sound quality of your car stereo system, you may be experiencing a common problem. Many car owners struggle with weak and distorted sound from their speakers, which can be frustrating and take away from the overall driving experience. This problem matters to you because it can make your daily commute or road trips less enjoyable. The Pioneer GM-DX104, Micro 4-channel amplifier is a clear solution to this problem, as it provides a compact and powerful way to enhance your car's audio system. With its Class D Technology and 400 watts of power, this amplifier can help you achieve high-quality sound that is free from distortion.

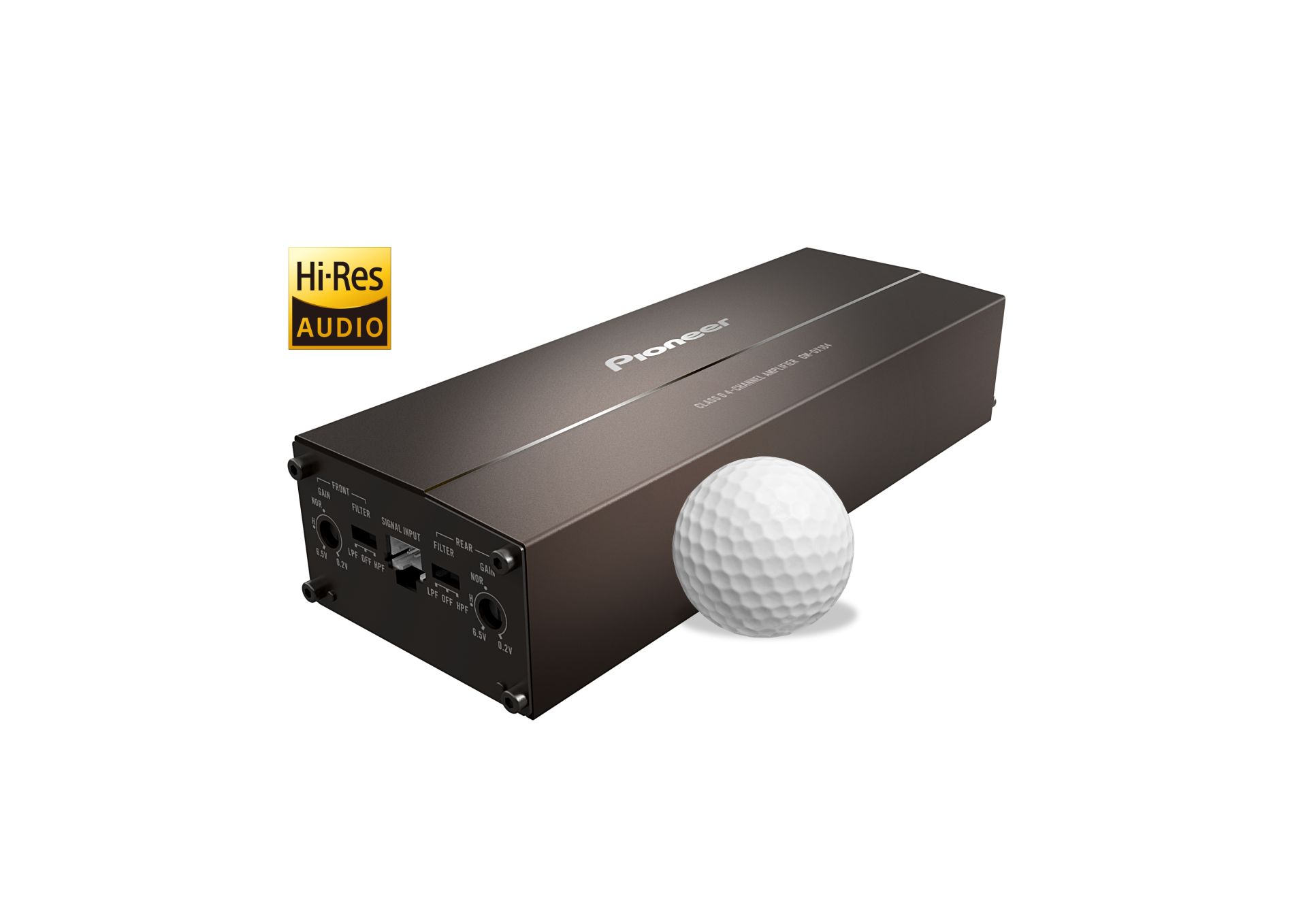

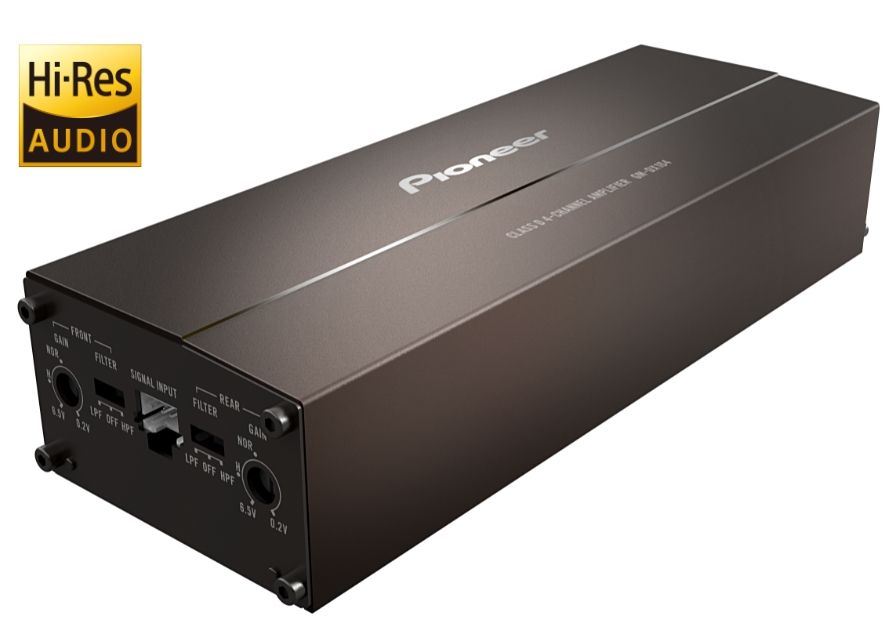

Pioneer GM-DX104, Micro 4-channel amplifier (400 W) with Class D Technology with Pioneer
Are you tired of listening to weak and distorted sound from your car speakers? Look no further than the Pioneer GM-DX104, Micro 4-channel amplifier. This powerful and compact amplifier is designed to provide high-quality sound that will take your driving experience to the next level. As a car owner, you know how important it is to have a good sound system, and the Pioneer GM-DX104 is the perfect solution. With its 400 watts of power and Class D Technology, this amplifier can handle even the most demanding audio systems. Whether you are listening to music, podcasts, or audiobooks, the Pioneer GM-DX104 will provide you with clear and distortion-free sound that will make your daily commute or road trips more enjoyable.
Key Features
- Micro 4-channel amplifier with 400 watts of power
- Class D Technology for efficient and reliable operation
- High Resolution Audio Certified for high-quality sound
- 4-channel design provides plenty of flexibility for different audio systems
- Continuous output power of 45 W x 4 (4 ohms), 45 W x 4 (2 ohms), 90 W x 2 (4 ohms)
- Frequency response of 10 Hz - 40 kHz for clear and detailed sound
- Distortion of less than 0.05% for minimal distortion and clear sound
- S/N ratio of greater than 93 dB for high-quality sound with minimal noise
- Load impedance capability of 2-8 ohms for compatibility with different speakers
- High pass filter and low pass filter supported for flexible audio system design
- Compact and lightweight design makes it easy to install and use
Specifications
| General |
|
| Product Type |
Micro 4-Channel Amplifier |
| Description |
Compact, space saving, easy to install micro 4-Channel amplifier (400 W) featuring High Resolution Audio,
Class-D Technology and compatible with OEM/Original (or aftermarket) stereo systems, including
Electric Vehicles (EV)
|
| Audio Features |
|
| High Resolution Audio Certified |
Yes |
| Class D Technology |
Yes |
| Channels |
4-Channel |
| Continuous Output Power |
45 W × 4 (4 Ω), 45 W × 4 (2 Ω), 90 W × 2 (4 Ω) |
| Frequency Response |
10 Hz - 40 kHz |
| Distortion |
< 0.05 % |
| S/N Ratio |
> 93 dB |
| Load Impedance Capability |
2–8 Ω |
| High Pass Filter |
Supported |
| Low Pass Filter |
Supported
|
| Dimensions |
|
| Size |
181 mm (W) × 38 mm (H) × 64 mm (D) |
| Other Specifications |
|
| Speaker Terminals |
ISO-Type |
