Are you tired of listening to music in your car with weak bass? Do you want to feel the beat and rhythm of your favorite songs? Look no further than the Pioneer TS-W3020PRO, a high-efficiency subwoofer designed to deliver powerful and clear sound. As a music lover, you know how important it is to have a good sound system in your car. But with so many options available, it can be hard to choose the right one. That's where Pioneer comes in, a brand known for its high-quality audio products. The Pioneer TS-W3020PRO is a 12" subwoofer that is part of the PRO Samurai series, designed to provide you with the best possible sound experience.

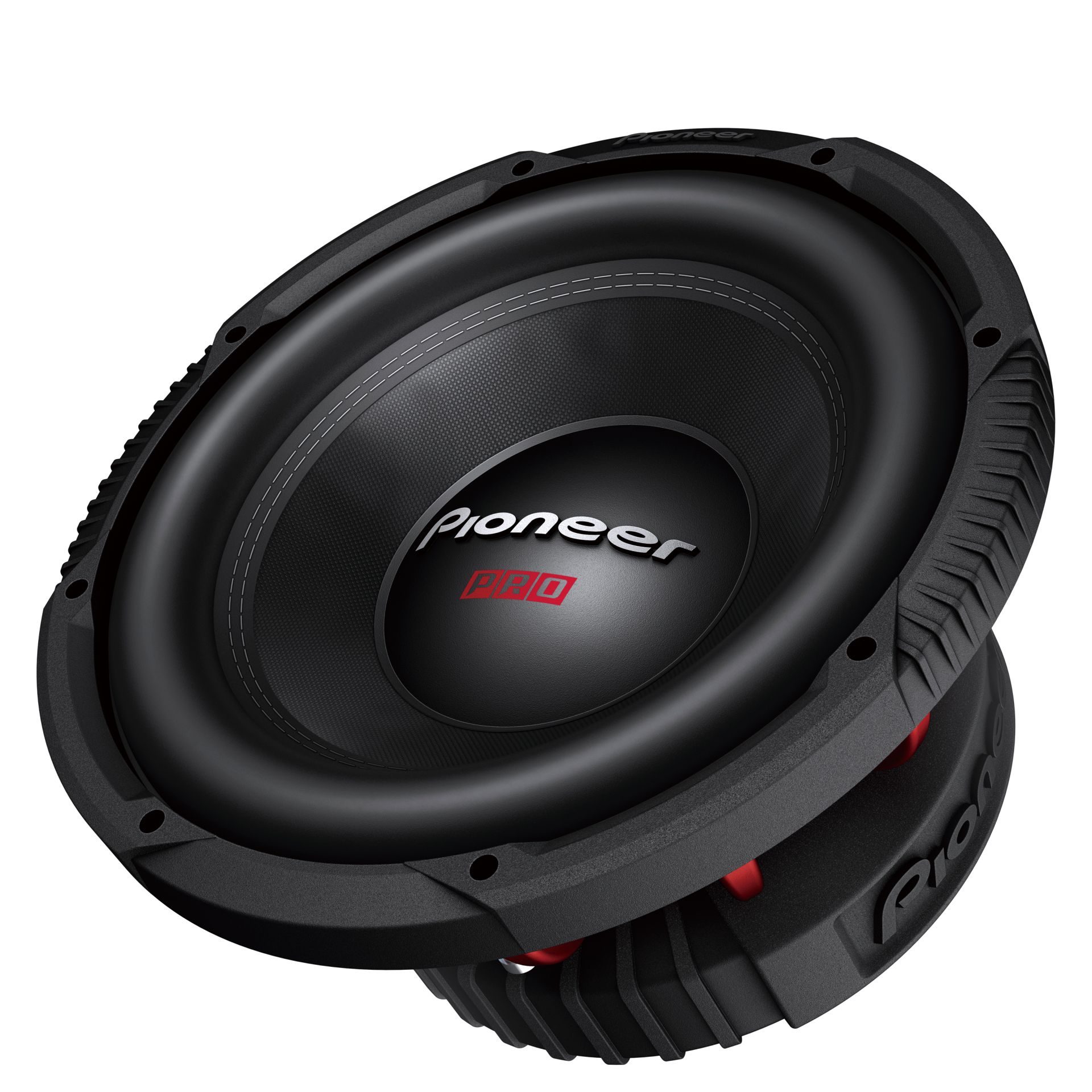

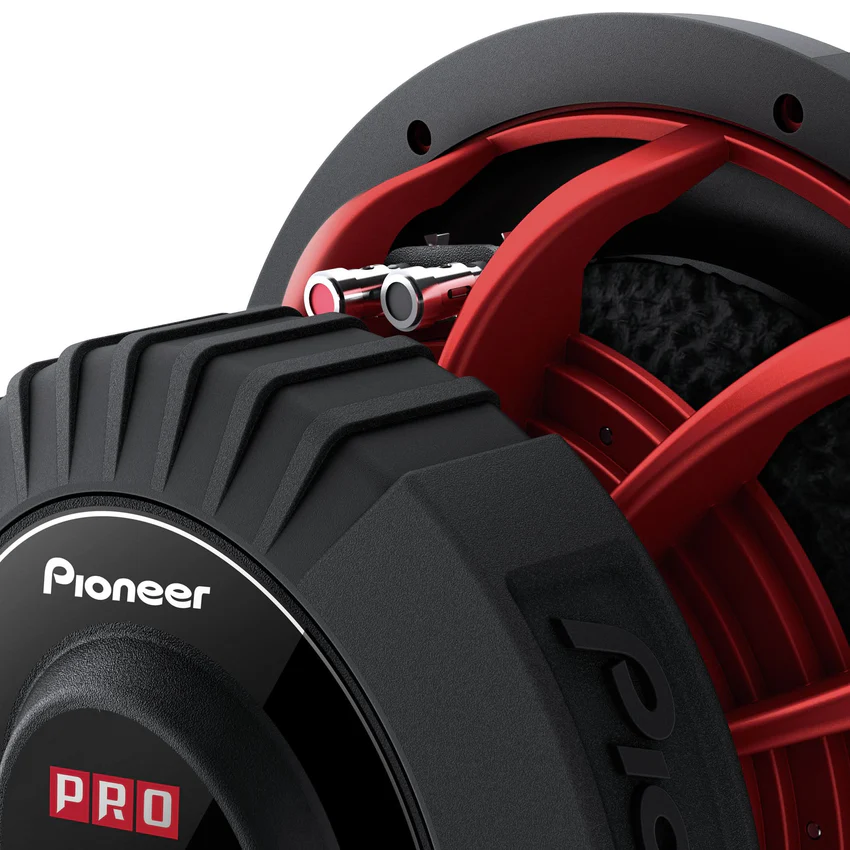

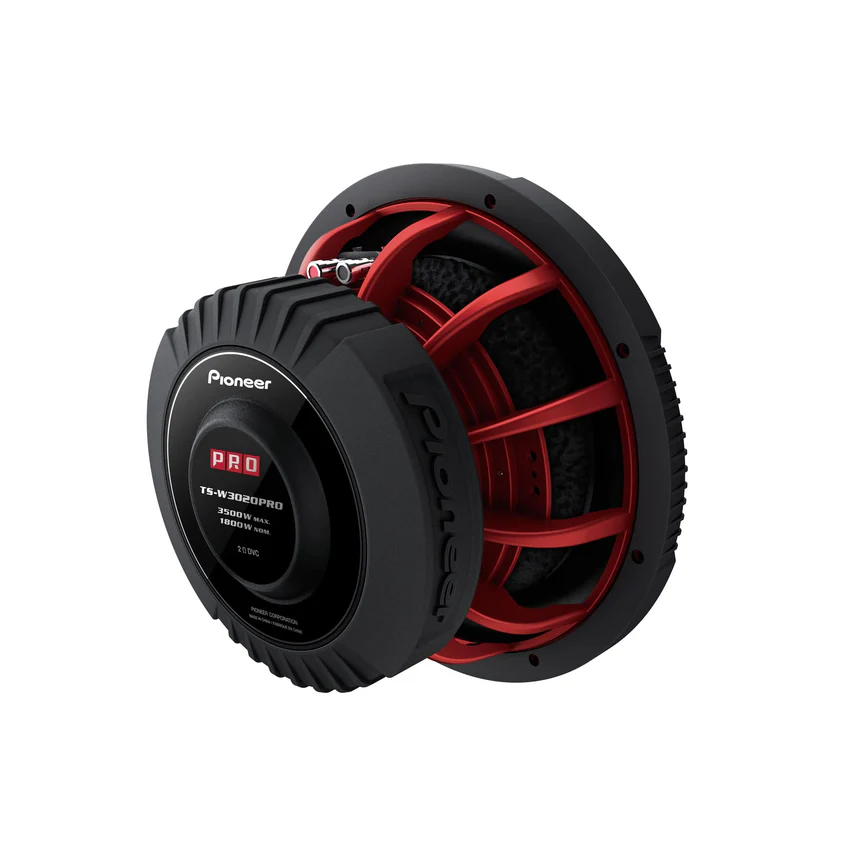

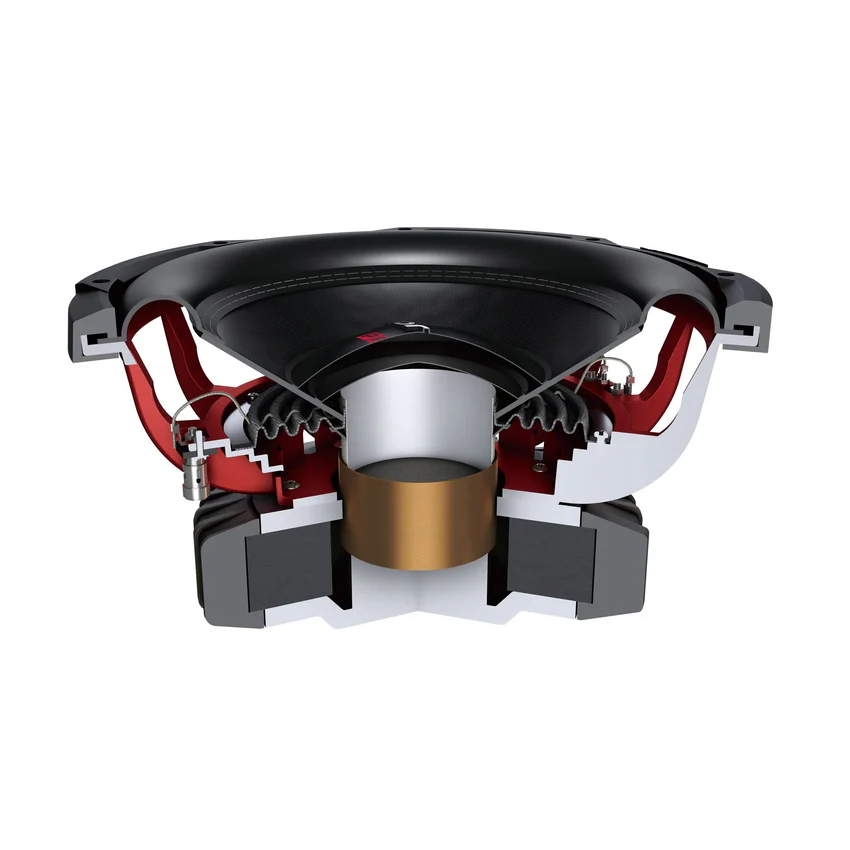

Pioneer TS-W3020PRO, PRO Samurai series, 12" High Efficiency Subwoofer (3500 W)
The Pioneer TS-W3020PRO solves the problem of weak bass in your car's sound system. This problem matters to you because it can make your music sound flat and unengaging. The Pioneer TS-W3020PRO provides a clear solution by delivering powerful and clear sound, thanks to its high-efficiency design and 3500W maximum peak power handling. With this subwoofer, you can enjoy your music with deep and rich bass, making your driving experience more enjoyable.
Key Features
- 12" high-efficiency subwoofer with 3500W maximum peak power handling
- Part of the PRO Samurai series, designed to provide you with the best possible sound experience
- Frequency response of 20 Hz to 200 Hz, making it perfect for listening to music with deep and rich bass
- Sensitivity of 86 dB, making it easy to hear your music clearly
- 4-layer copper-clad aluminum voice coil for improved sound quality
- Recommended ported box internal volume of 1.75 cu.ft. (50 liters)
- Recommended sealed enclosure volume of 1.25 cu.ft. (34.4 liters)
- Mounting depth of 6.06" (154 mm), making it easy to install in your car
- Outer diameter of 12-11/16", making it a great choice for anyone who wants to upgrade their sound system
- Protrusion of 1", making it easy to install and use
Specifications
| General |
|
| Product |
Pioneer TS-W3020PRO |
| Model Number |
TS-W3020PRO |
| Product Type |
Car Subwoofers |
| Category |
Speakers PRO Component |
| Power |
|
| Maximum Peak Power Handling |
3500 Watts |
| Continuous Power Handling (RMS) |
1800 Watts |
| Speaker Specifications |
|
| System Type |
Subwoofer |
| Subwoofer Size |
12" |
| Cone Material |
Blended Pulp |
| Woofer Dimensions |
12" |
| Nominal Impedance |
2-Ohm Dual |
| Frequency Response |
20 Hz to 200 Hz |
| Sensitivity (1W/1m) |
86 dB |
| Voice Coil |
4-layer Copper-clad Aluminum |
| Enclosure Recommendations |
|
| Recommended Ported Box Internal Volume |
1.75 cu.ft. (50 liters) |
| Recommended Sealed Enclosure Volume |
1.25 cu.ft. (34.4 liters) |
| Physical Specifications |
|
| Cut Out Dimensions |
11-3/32" |
| Mounting Depth |
6.06" (154 mm) |
| Outer Diameter |
12-11/16" |
| Protrusion |
1" |
| Equivalent Compliance (VAS) |
8.3 / 0.293 |
| Linear Excursion (Xmax) |
22.8 / 0.897 |
| Total Speaker "Q" (Qts) |
1.3 |
| Speaker Grill |
NA |
