Imagine a factory floor where a single network glitch can halt an entire production line. The Planet IP30 DIN-rail Industrial L2+ 4-Port 10/100/1000T Managed TSN Switch is built to stop that from happening. It gives you a rugged, managed Ethernet core that keeps machines talking even in harsh environments. If you need reliable, real-time data flow without costly downtime, this switch is the answer.

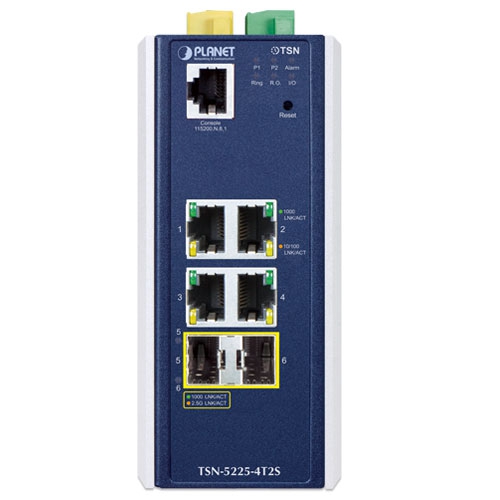

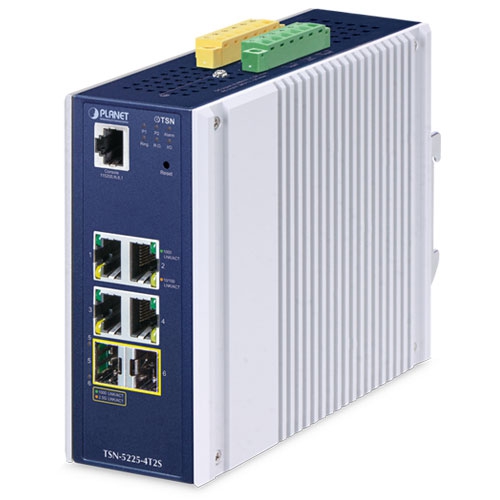

Planet IP30 DIN-rail Industrial L2+ 4-Port 10/100/1000T Managed TSN Switch
Many industrial networks suffer from latency, packet loss, and limited expandability. Those problems slow production, raise maintenance costs, and can cause safety issues. The IP30 solves them by delivering Time-Sensitive Networking (TSN) and full Layer-2+ management in a compact DIN-rail package. You get deterministic traffic, easy configuration, and the ability to grow your network without replacing hardware.
This PLANET industrial Ethernet switch uses a Store-and-Forward architecture with an 18 Gbps non-blocking switch fabric and a throughput of 13.3 Mpps at 64 bytes. It provides an 8K-entry address table, 32 Mbits shared data buffer, and jumbo frame support up to 10K bytes.
The switch provides Layer 3 functionality with up to 8 VLAN interfaces and a routing table supporting up to 32 routing entries. It supports IPv4 and IPv6 software static routing, while IEEE 802.3x flow control provides pause-frame support for full-duplex operation.
For industrial installation, the switch features an IP30 aluminum enclosure and supports DIN-rail or wall mounting. It includes 2 digital inputs, 2 digital outputs, and one relay output for power-failure alarms, providing additional monitoring and control capabilities.
Key Features
- 4 x 10/100/1000BASE-T RJ45 ports
- 2 x 1000/2500BASE-X SFP ports
- 18 Gbps non-blocking switch fabric
- 13.3 Mpps throughput
- 8K-entry MAC address table
- 32 Mbits shared data buffer
- Up to 32 routing entries
- IP30 aluminum DIN-rail or wall-mount enclosure
Specifications
| Copper Ports |
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Port |
2 1000/2500BASE-X SFP ports (Ports 5 to 6) |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot |
| > 5 sec: Factory default |
| Connector |

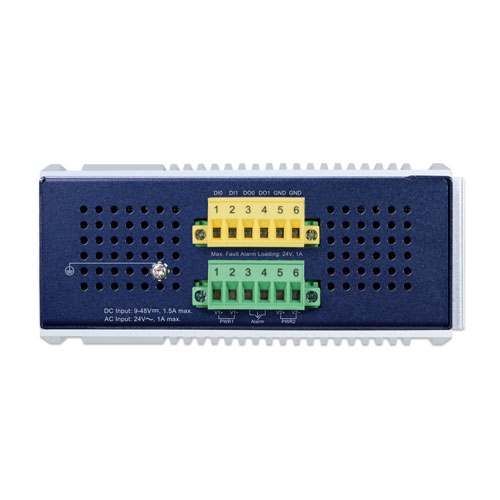

Removable 6-pin terminal block for power input |
| Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Removable 6-pin terminal block for DI/DO interface |
| Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
2 digital input: |
| Level 0: -24~2.1V (±0.1V) |
| Level 1: 2.1~24V (±0.1V) |
| Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital output: |
| Open collector to 24VDC, 100mA |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail or wall mounting |
| SDRAM |
1024Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
60 x 135 x 135 mm |
| Weight |
986g |
| Power Requirements |
DC 9~48V, 1.5A max. |
| AC 24V, 1A max. |
| Power Consumption |
DC input: |
| Max. 6.05 watts/20.64BTU (system on) |
| Max. 9.8 watts/33.44BTU (Full loading) |
| AC 24V input: |
| Max. 5.4 watts/18.43BTU (system on) |
| Max. 9.2 watts/31.39BTU (Full loading) |
| ESD Protection |
5KV DC |
| Surge Protection |
6KV DC |
| LED Indicators |
System: |
| Power 1 (Green), Power 2 (Green) |
| Fault Alarm (Red) |
| Ring (Green), Ring Owner (Green) |
| DIDO (Red) |
| Per 10/100/1000T RJ45 Port: |
| 1000Mbps LNK/ACT (Green) |
| 10/100Mbps LNK/ACT (Amber) |
| Per SFP Port: |
| 1 Gbps LNK/ACT (Green) |
| 2.5Gbps LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
18Gbps/non-blocking |
| Throughput |
13.3Mpps@64Bytes |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
| Back pressure for half duplex |
| Layer 3 Functions |
| IP Interfaces |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing |
| IPv6 software static routing |
