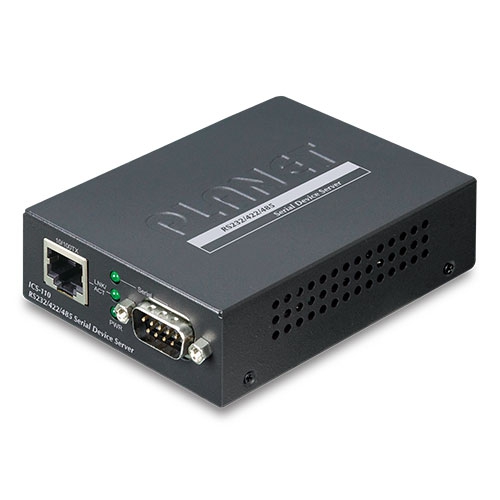

Planet Technology ICS-110, 100m 1-Port RS232/422/485 Serial Device Server
The Planet Technology ICS-110 is a 1-port serial device server designed to connect RS232, RS422, and RS485 serial equipment to an Ethernet network. It provides a practical solution for remote serial device access while supporting both 2-wire and 4-wire RS485 communication.
The serial interface uses one DB9 male port and supports baud rates from 50bps to 921Kbps. Users can select 5, 6, 7, or 8 data bits, 1, 1.5, or 2 stop bits, and multiple parity options. RS232 also supports RTS/CTS and DTR/DSR flow control, along with XON/XOFF.
For network connectivity, the ICS-110 features one RJ45 Ethernet port supporting 10/100BASE-TX with a transmission distance of up to 100 meters. It also provides 6KV ESD protection and supports IPv4 and IPv6 for flexible network deployment.
The device supports several operating modes, including TCP Server, TCP Client, UDP Client, Virtual COM, RFC2217, Telnet Server, Pair Connection, and Modbus converter server/client. Management is available through Web management, Telnet Console, Windows-based VCOM Utility, SNMP, UNI-NMS, and PLANET Smart Discovery Utility.
With its metal housing and compact 94 x 70.3 x 26.2mm design, the ICS-110 can be installed as a standalone unit, wall-mounted, or with an optional DIN-rail kit. It operates from -10 to 60°C and supports 5 to 95% non-condensing humidity.
Key Features
-
1 x DB9 male serial port supporting RS232/RS422/2-wire and 4-wire RS485
-
Serial baud rate from 50bps to 921Kbps
-
1 x RJ45 10/100BASE-TX Ethernet port with 100m distance
-
6KV ESD protection for Ethernet interface
-
Supports TCP Server, TCP Client, UDP Client, Virtual COM and RFC2217
-
Supports Telnet Server, Pair Connection and Modbus converter modes
-
Web, Telnet, VCOM Utility, SNMP and UNI-NMS management
-
Compact metal housing with standalone, wall-mount and optional DIN-rail installation
Specifications
| Serial Interface |
|
| Serial Port |
1 x DB9 male |
| Serial Standards |
RS232/RS422/4-wire RS485/2-wire RS485 |
| Baud Rate (Data Rate) |
50bps to 921Kbps |
| Data Bits |
5, 6, 7, 8 |
| Stop Bit |
1, 1.5, 2 |
| Parity Type |
Odd, Even, None, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS232 only); XON/XOFF |
| Ethernet Interface |
|
| Ethernet Ports |
1 x RJ45 |
| Standard |
10/100BASE-TX |
| Distance |
100m |
| ESD Protection |
6KV |
| Hardware |
|
| Dimensions (W x D x H) |
94 x 70.3 x 26.2mm |
| Weight |
184g |
| LED Indicators |
System: Link; TP Port: Link/Active; Serial Port: Active |
| Power Requirements |

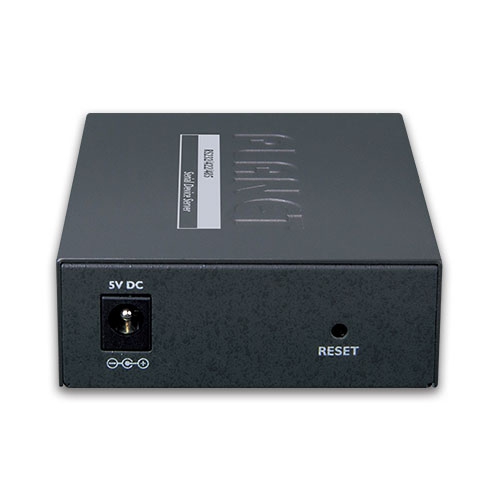

External Power Adaptor 5V DC, 2A max. |
| Power Consumption |
5.5 watts (max) |
| Material |
Metal |
| Installation |
Standalone, wall-mount, and DIN-rail kit (optional) |
| Reset Button |
< 5 sec: System reboot; > 5 sec: Factory default |
| Compatible Media Converter Chassis |
MC-700/MC-1500/MC-1500R |
| Management |
|
| Management Interfaces |
Web management; Telnet Console management; Windows-based VCOM Utility management;
SNMPv1, v2c / SNMP Trap; UNI-NMS monitoring; PLANET Smart Discovery Utility
|
| IP Version |
IPv4 and IPv6 |
| Operation Mode |
TCP Server / TCP Client; UDP Client; Virtual COM; RFC2217; Telnet Server; Pair Connection – Remote
(Slave); Pair Connection – Local (Master); Modbus converter server / client
|
| Fault Alarm |
Record: System log / SNMP trap |
| Time |
NTP |
| Security |
Accessible IP (white list) |
| SNMP |
SNMP v1 and v2c |
| Standards Conformances |
|
| Regulatory Compliance |
FCC Part 15 Class A, CE Certification Class A |
| Regulatory Approval |
RoHS |
| Environment |
|
| Operating Temperature |
-10 ~ 60 degrees C |
| Storage Temperature |
-10 ~ 70 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
| Ordering Information |
|
| Model |
ICS-110 |
| Product Type |
1-Port RS232/422/485 Serial Device Server |
