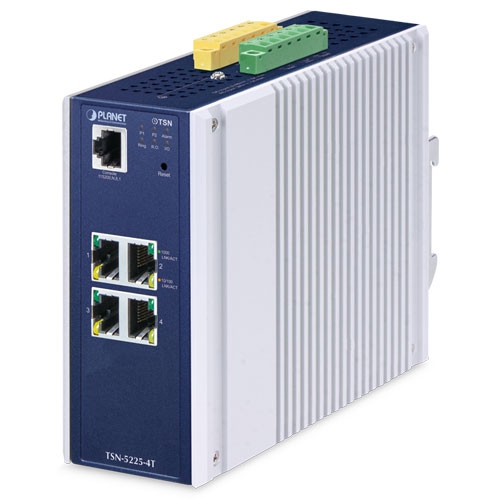

Planet TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Switch
The Planet TSN-5225-4T Industrial L2+ Managed TSN Switch is designed for industrial Ethernet networks requiring reliable Gigabit connectivity and flexible network management. It provides 4 x 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X for connecting industrial devices and network equipment.
The switch uses a Store-and-Forward architecture with an 8 Gbps non-blocking switch fabric and 5.95 Mpps throughput at 64 bytes. It provides an 8K-entry address table with automatic source address learning and aging, along with a 32 Mbits shared data buffer and jumbo frame support up to 10K bytes.
For network management and control, the Planet TSN-5225-4T provides a Layer 3 function with up to 8 VLAN interfaces and up to 32 routing entries. IPv4 and IPv6 software static routing support enables flexible network segmentation and routing.
The industrial switch includes 2 digital inputs, 2 digital outputs, and one relay output for power-failure alarms. A removable 6-pin terminal block provides connections for power input and DI/DO interfaces, while the RJ45-to-RS232 console port enables direct device access.
Built for harsh industrial environments, the switch features an IP30 aluminum case and supports DIN-rail or wall mounting. It operates from -40°C to 75°C and provides 5KV DC ESD protection and 6KV DC surge protection for dependable operation in demanding installations.
Key Features
-
4 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
-
8 Gbps non-blocking switch fabric
-
5.95 Mpps throughput at 64 bytes
-
8K-entry address table with automatic learning and aging
-
Up to 8 VLAN interfaces and 32 routing entries
-
IPv4 and IPv6 software static routing
-
IP30 aluminum case with DIN-rail or wall mounting
-
-40°C to 75°C operating temperature range
Specifications
| Copper Ports |
4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot |
| > 5 sec: Factory default |

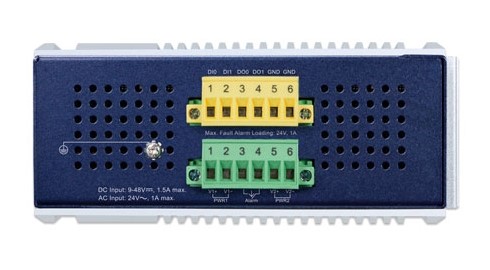

| Connector |
Removable 6-pin terminal block for power input |
| Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Removable 6-pin terminal block for DI/DO interface |
| Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
2 digital input: |
| Level 0: -24~2.1V (±0.1V) |
| Level 1: 2.1~24V (±0.1V) |
| Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital output: |
| Open collector to 24VDC, 100mA |
| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail or wall mounting |
| SDRAM |
1024Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
60 x 135 x 135 mm |
| Weight |
962g |
| Power Requirements |
DC 9~48V, 1.5A max. |
| AC 24V, 1A max. |
| Power Consumption |
DC input: |
| Max. 8.36 watts/28.53BTU (system on) |
| Max. 9.89 watts/33.75BTU (Full loading) |
| AC 24V input: |
| Max. 6.2 watts/21.16BTU (system on) |
| Max. 7.9 watts/26.96BTU (Full loading) |
| ESD Protection |
5KV DC |
| Surge Protection |
6KV DC |

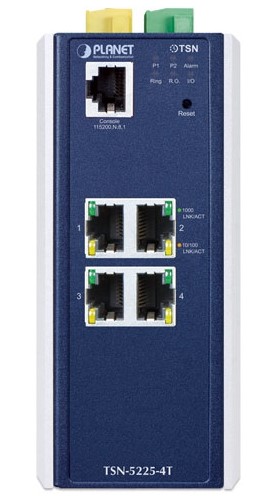

| LED Indicators |
System: |
| Power 1 (Green), Power 2 (Green) |
| Fault Alarm (Red) |
| Ring (Green), Ring Owner (Green) |
| DIDO (Red) |
| Per 10/100/1000T RJ45 Port: |
| 1000Mbps LNK/ACT (Green) |
| 10/100Mbps LNK/ACT (Amber) |
| Switching Specifications |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
8Gbps/non-blocking |
| Throughput |
5.95Mpps@64Bytes |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
| Back pressure for half duplex |
| Layer 3 Functions |
| IP Interfaces |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing |
| IPv6 software static routing |
| Environment |
| Operating |
-40 ~ 75 degrees C |
| Storage |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
