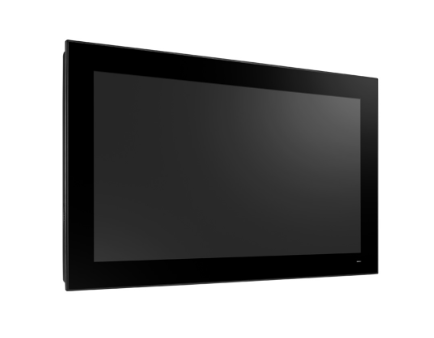

Advantech PPC-421W 21.5 Inch Industrial Panel PC Intel i5 13th Gen Touch Display

In many factories and field sites the computer you use must survive dust, temperature swings and constant vibration. When a regular PC fails, production stops and repair costs rise. You need a machine that can run heavy software, stay on for long hours and still be easy to operate with a touch screen. The PPC-421W 21.5 Inch Industrial Panel PC Intel i5 13th Gen Touch Display gives you exactly that - a tough, fast and user-friendly solution built for harsh environments.

Advantech PPC-421W 21.5 Inch Industrial Panel PC Intel i5 13th Gen Touch Display with Inch

Imagine a panel PC that never quits, even when the floor is covered in metal shavings or the temperature drops below zero. This product is a 21.5 Inch touch-screen computer designed for industrial control, data collection and interactive displays. If you are tired of devices that reboot during a power surge or freeze when you need quick input, this panel PC solves the problem with a rugged case, a powerful 13th-gen i5 processor and a responsive PCAP touch layer.

Usages

The PPC-421W fits right into factory automation lines where operators need real-time data at their fingertips. It works well in warehouse barcode scanners, logistics hubs, and conveyor monitoring stations. Medical kiosks and pharmacy dispensing units benefit from its cleanable surface and precise touch. Retail point-of-sale counters, transportation ticketing machines, and outdoor information boards can also rely on its IP66 front panel and wide temperature range.

Benefits

• Stay productive in dusty or wet areas thanks to IP66 protection.
• Fast response for multitasking apps with a 13th-gen i5 CPU.
• Easy operation using a 21.5 Inch PCAP touch screen.
• Long life battery-free operation with 30,000-hour backlight.

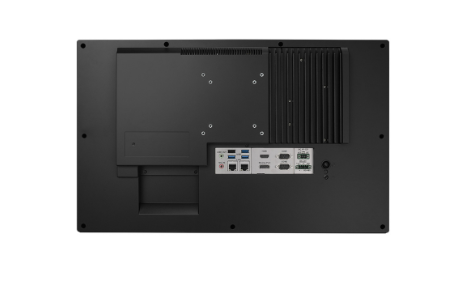

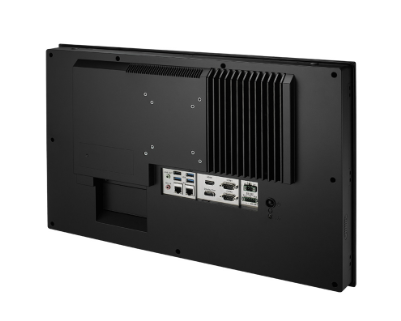

• Simple integration via multiple USB, serial and Ethernet ports.

Key Features

• 13th-gen Intel Core i5-1345URE Deca-Core processor.
• Two DDR5 SO-DIMM slots, up to 4800 MHz.
• Dual 2.5 SSD/HDD bays and one NVMe PCIe x4 M.2 slot.
• Two 10/100/1000/2500 Mbps LAN ports with Intel i226-LM.
• PCAP touch panel with 10-point multi-touch.
• Three USB 3.2 Type-A and one USB 2.0 Type-A connectors.
• Serial: 2 RS-232, 1 RS-422/485.
• Video output: 1 HDMI, 1 DisplayPort.
• Power input 9-32 VDC, 110 W consumption at 19 V.
• Die-cast aluminum alloy enclosure with PC + ABS front.
• Mounting options: stand, wall, VESA, panel.
• Operating temperature -20 C to 60 C, 95 % RH non-condensing.
